Console Lock Cylinder: Service and Repair
CONSOLE LOCK CYLINDER REMOVAL 1.
Open the
console cover.

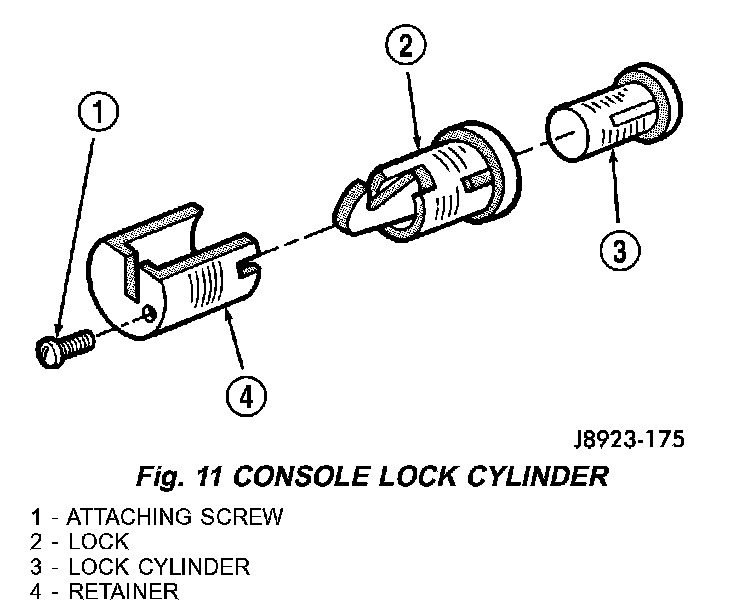

Fig. 11:
2.
Remove the screw that attaches the retainer to the lock and then remove the retainer from the lock (Fig. 11).
3.
Remove the lock cylinder from the
console cover.
INSTALLATION 1.
Insert the assembled lock in the
console cover hole and position the retainer on the lock and install the screw.
