Front Seat Back Cover
FRONT SEAT BACK COVERREMOVAL
1. Remove the seat.
2. Disconnect the j-straps at the bottom of the seat back.
3. Remove the bottom hog rings.
4. Remove the upper hog rings.
5. Remove the support rods from the seat back.

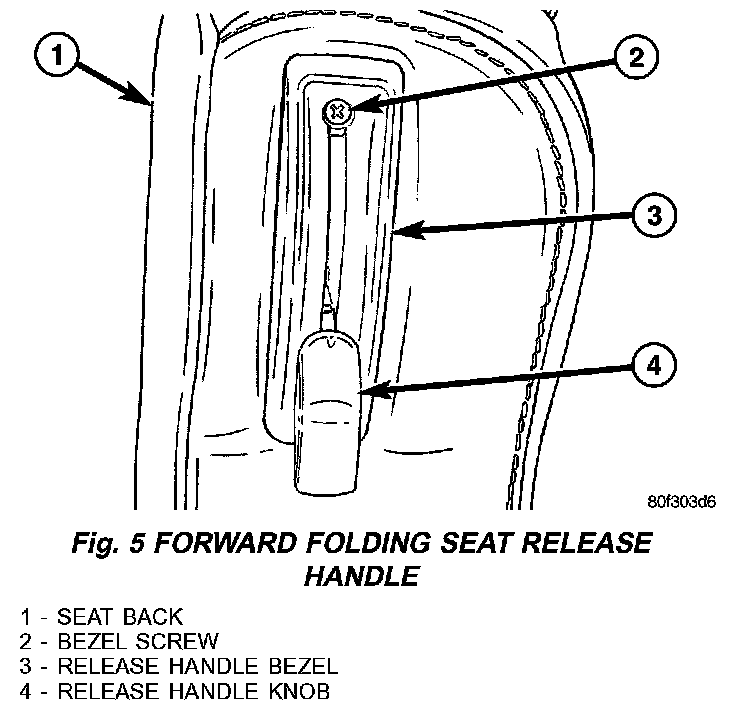

Fig. 5:
6. Using a trim stick C-4755 or equivalent, remove and discard the seat release handle knob. (Fig. 5)
7. Remove the screw and remove the release handle bezel.
8. Remove the seat cover and cushion.
INSTALLATION
1. Position cover and cushion on seatback.
2. Install the release handle bezel and install the screw.
3. Install a new release handle knob.
4. Install the support rods.
5. Install the upper hog rings.
6. Install the bottom hog rings.
7. Connect the j-straps at the bottom of the seat back.
8. Install seat back.
