Front Seat Back Recliner Cable
FRONT SEAT BACK RECLINER CABLE REMOVAL 1.
Remove seat cushion cover.

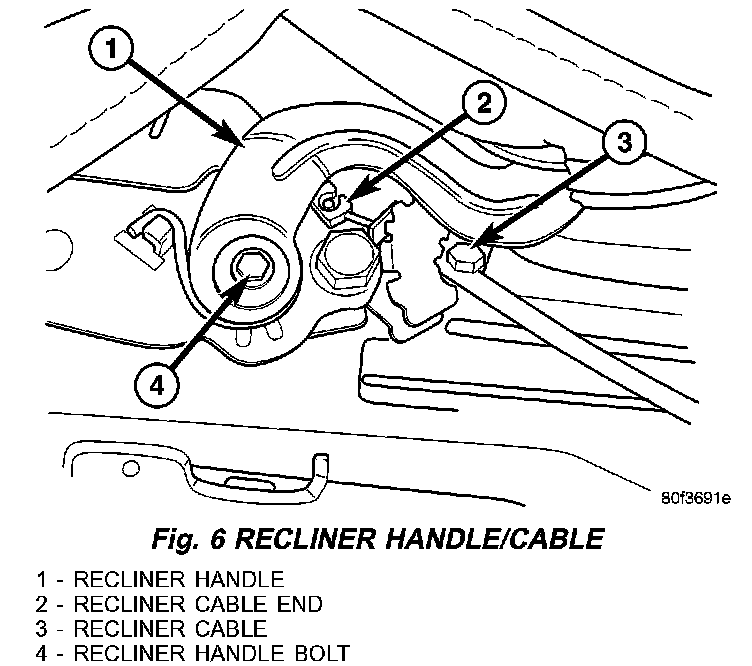

Fig. 6:

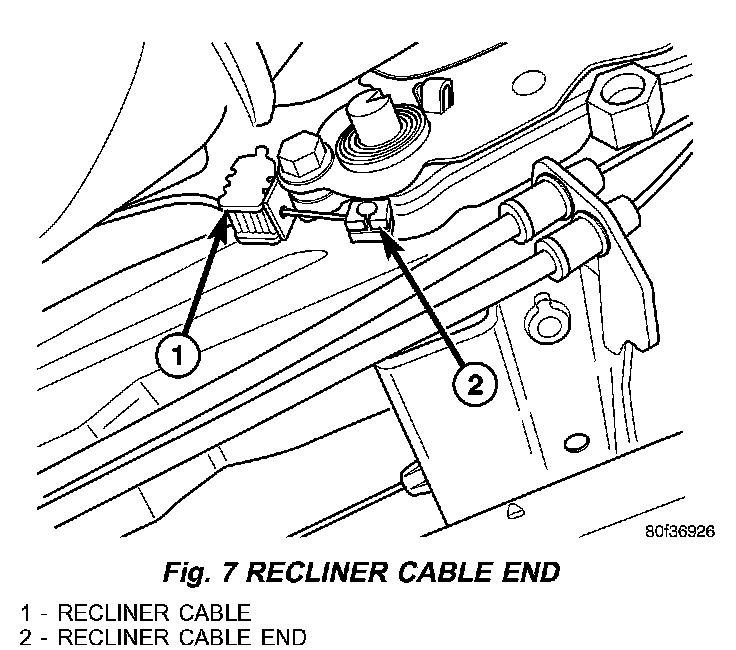

Fig. 7:
2.
Disengage cable from recliner release handle. (Fig. 6) and (Fig. 7)
3.
Route cable through
seat cushion pad.
4.
Disengage cable from mounting bracket.
INSTALLATION 1.
Engage cable to mounting bracket.
2.
Route cable through
seat cushion pad.
3.
Engage cable to recliner release.
4.
Install
seat back cover.
