Front Seat Track Adjuster
FRONT SEAT TRACK ADJUSTERREMOVAL
1. Remove the seat.
2. Position aside the seat back cover.
3. Remove the recliner covers.
4. Position aside the seat cushion cover.

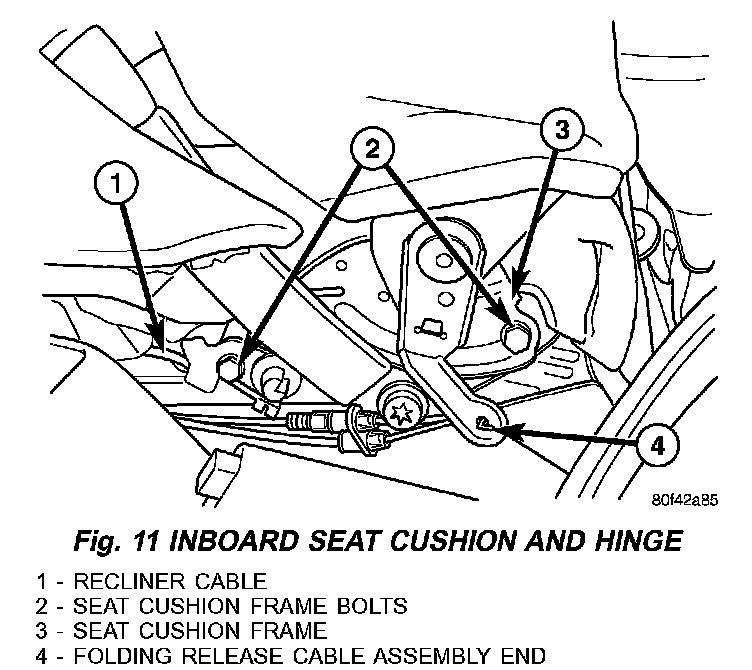

Fig. 11:

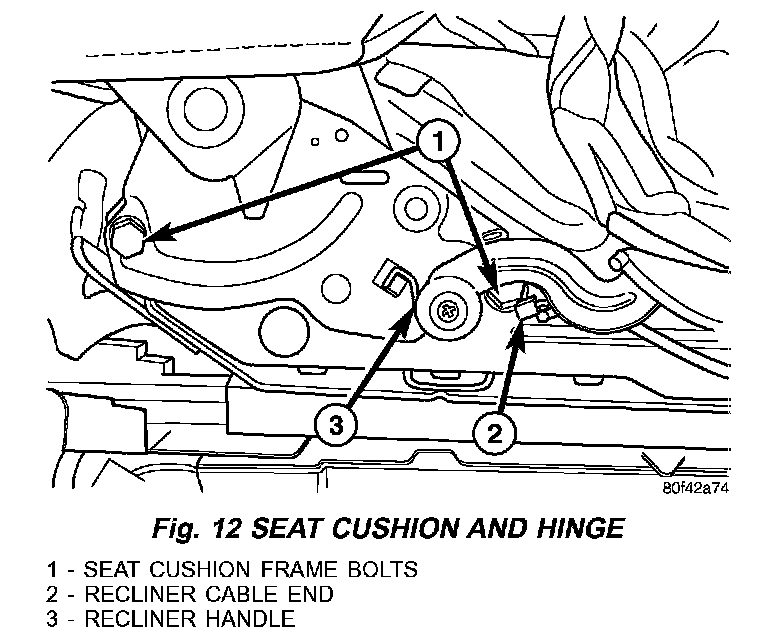

Fig. 12:
5. Disconnect the recliner cable ends. (Fig. 11) and (Fig. 12)
6. Remove the seat cushion to hinge bolts. (Fig. 11) and (Fig. 12)
7. Disconnect the folding release cable from the seat back recliner, if equipped. (Fig. 11)
8. Remove the seat back assembly.

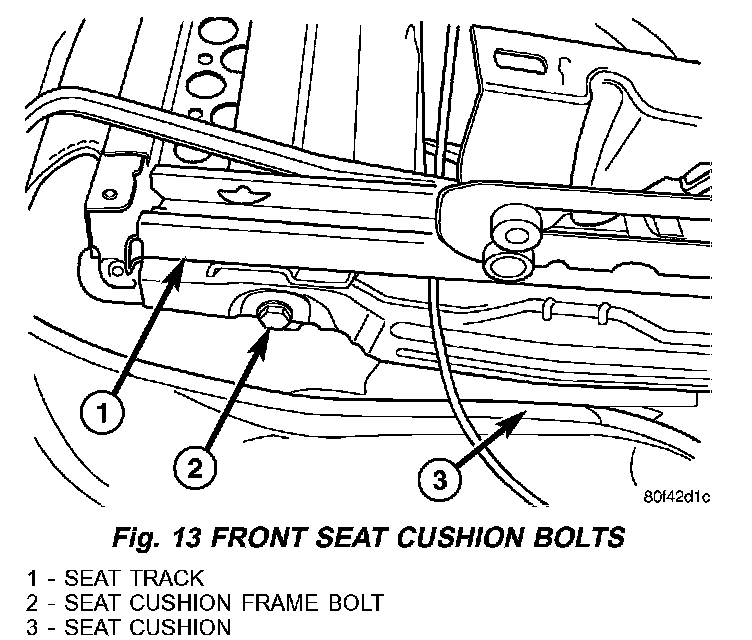

Fig. 13:
9. Remove the two bolts on either side of the seat cushion and remove the seat track assembly. (Fig. 13)
INSTALLATION
1. Install the seat track assembly and install the two front bolts.
2. Install the seat back assembly.
3. Connect the folding release cable assembly end to the seat back recliner.
4. Install the seat back assembly bolts.
5. Tighten the seat track bolts to 50 N.m (37 ft.lbs.).
6. Connect the recliner cables.
7. Install the seat cushion cover.
8. Install the recliner covers.
9. Install the seat back cover.
10. Install the seat.
