Front Seat

FRONT SEAT

REMOVAL

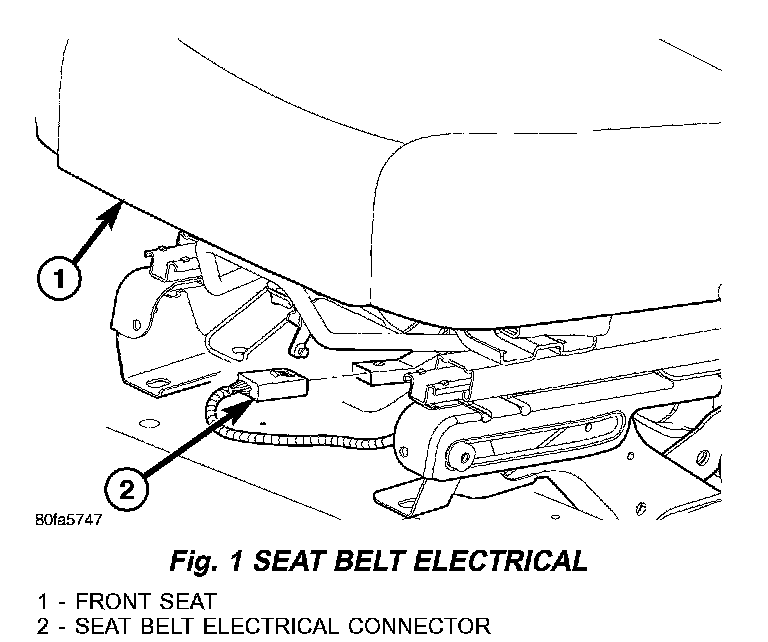

Fig. 1:

1. Disengage seat belt electrical connector (Fig. 1).

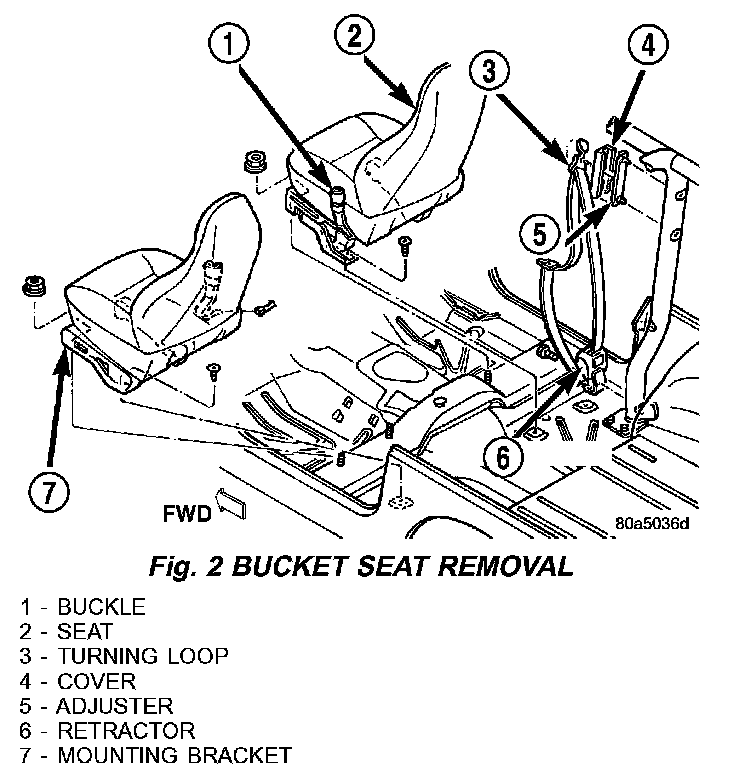

Fig. 2:

2. Remove the bolts attaching the seat adjuster to the floor panel (Fig. 2).
3. Remove the seat from the vehicle.

INSTALLATION

1. Position the seat in the vehicle.
2. Install the bolts attaching the rear of seat frame to the floor panel. Tighten outboard bolt to 33 N.m (25 ft.lbs.). Tighten inboard bolt to 74 N.m (55 ft.lbs.).
3. Install the bolts attaching the front of seat frame to the floor panel and tighten bolts to 33 N.m (25 ft.lbs.).
4. Engage seat belt electrical connector.
