System Diagram

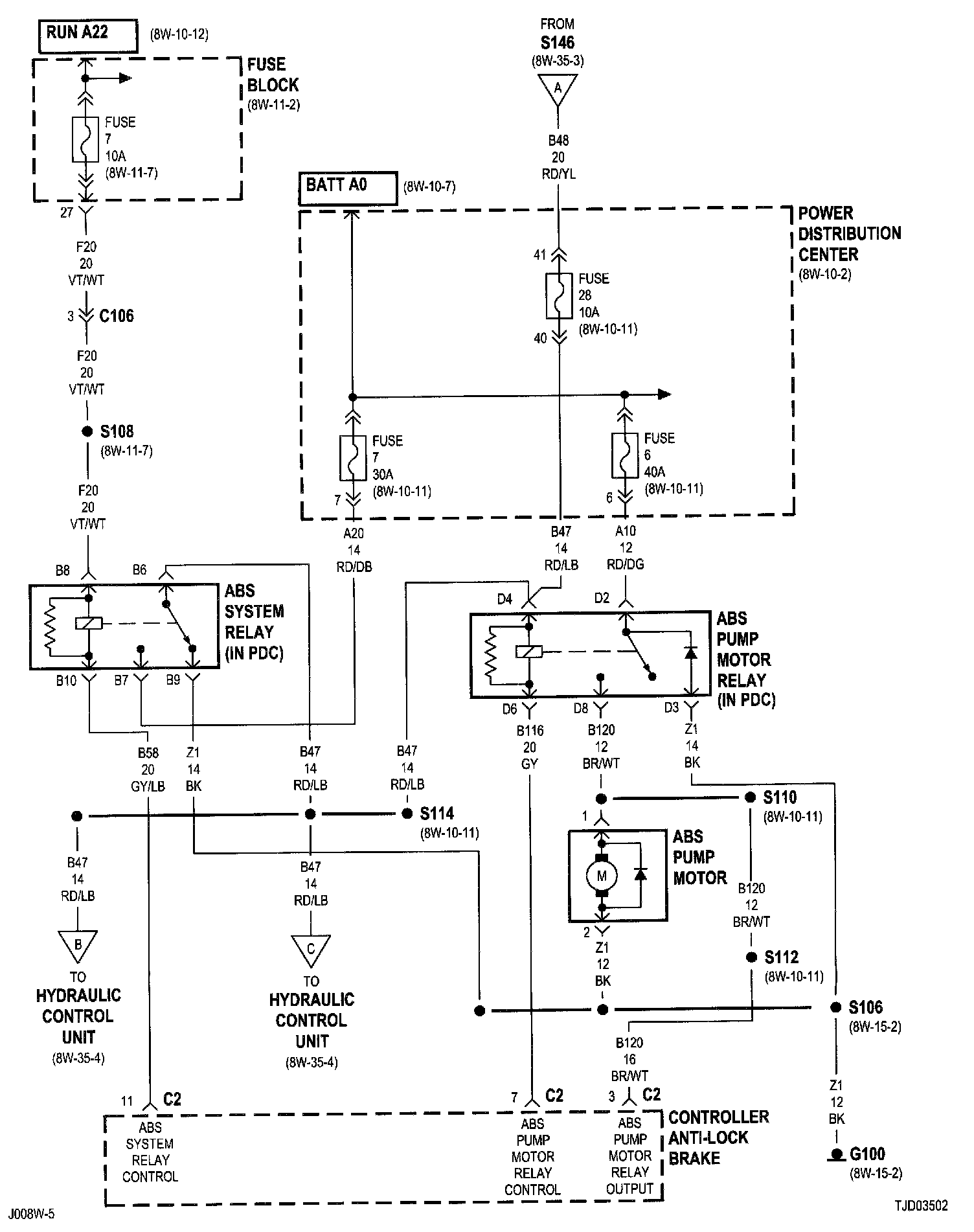

8w-35-2:




ABS Pump Motor
ABS Pump Motor Relay
ABS System Relay
Controller Anti-Lock Brake
Fuse 6 (PDC)
Fuse 7 (FB)
Fuse 7 (PDC)
Fuse 28 (PDC)
Fuse Block
G100
Power Distribution Center

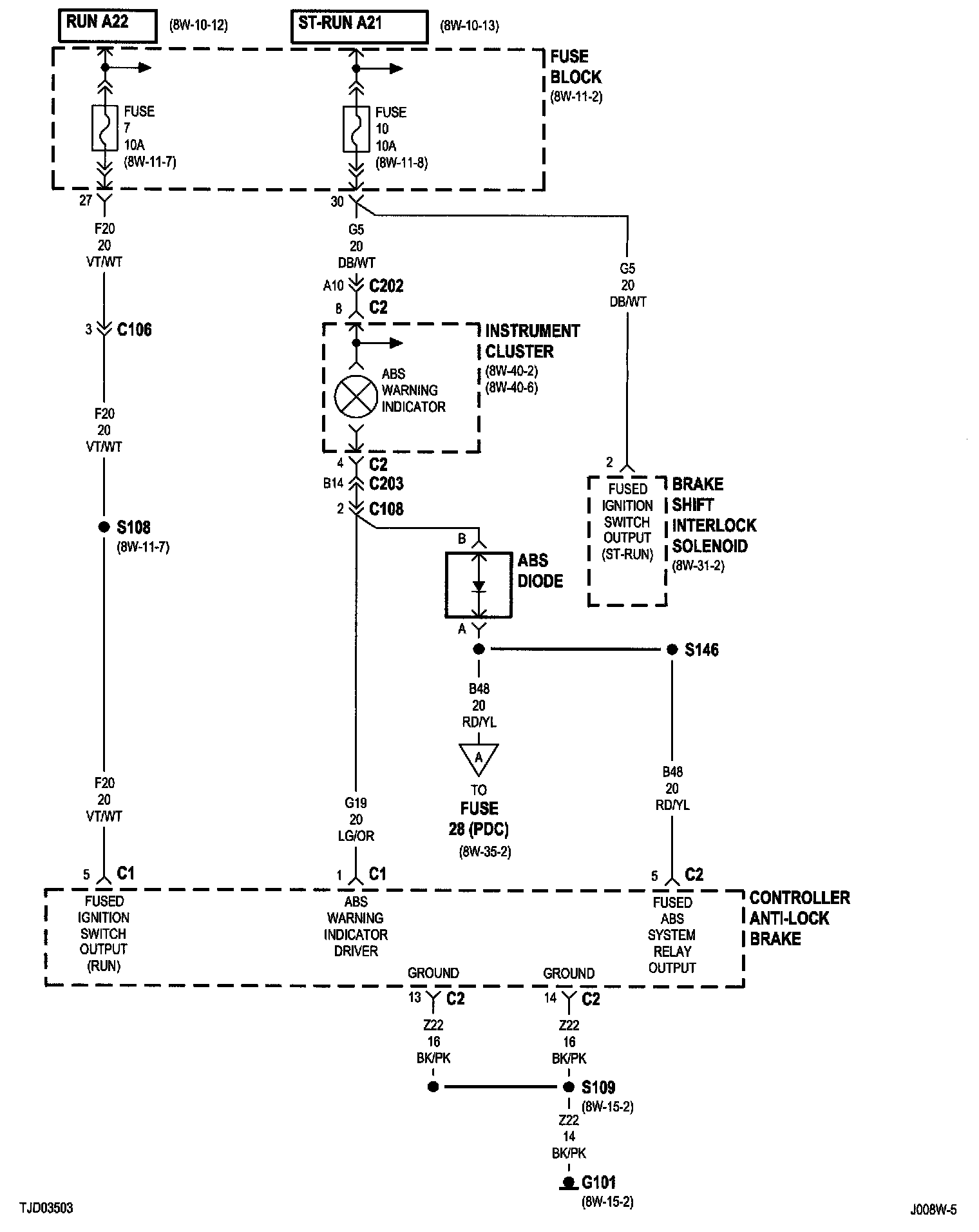

8w-35-3:




ABS Warning Indicator
Brake Shift Interlock Solenoid
Controller Anti-Lock Brake
Fuse 7 (FB)
Fuse 10 (FB)
Fuse Block
G101
Instrument Cluster


8w-35-4:




Controller Anti-Lock Brake

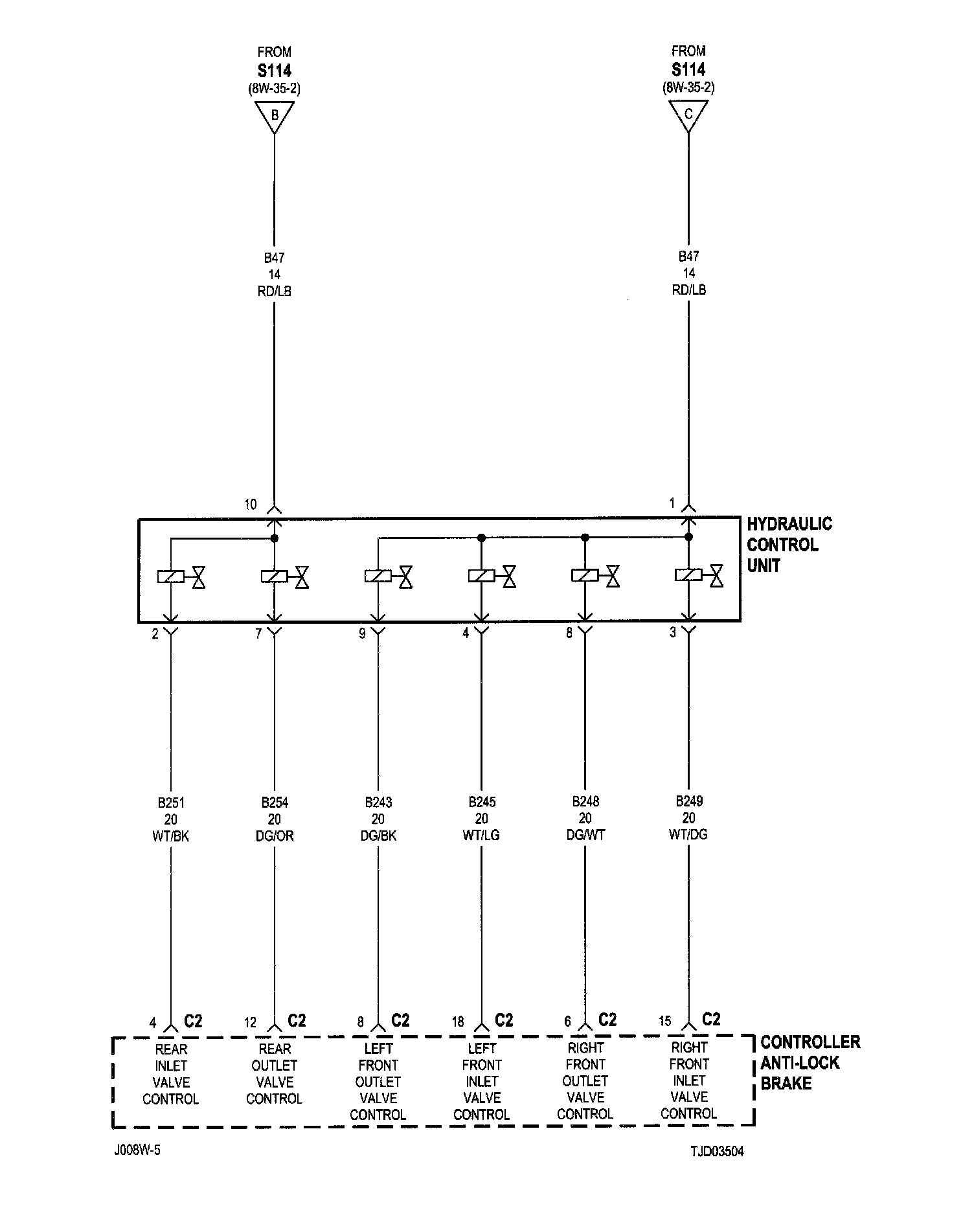

Hydraulic Control Unit

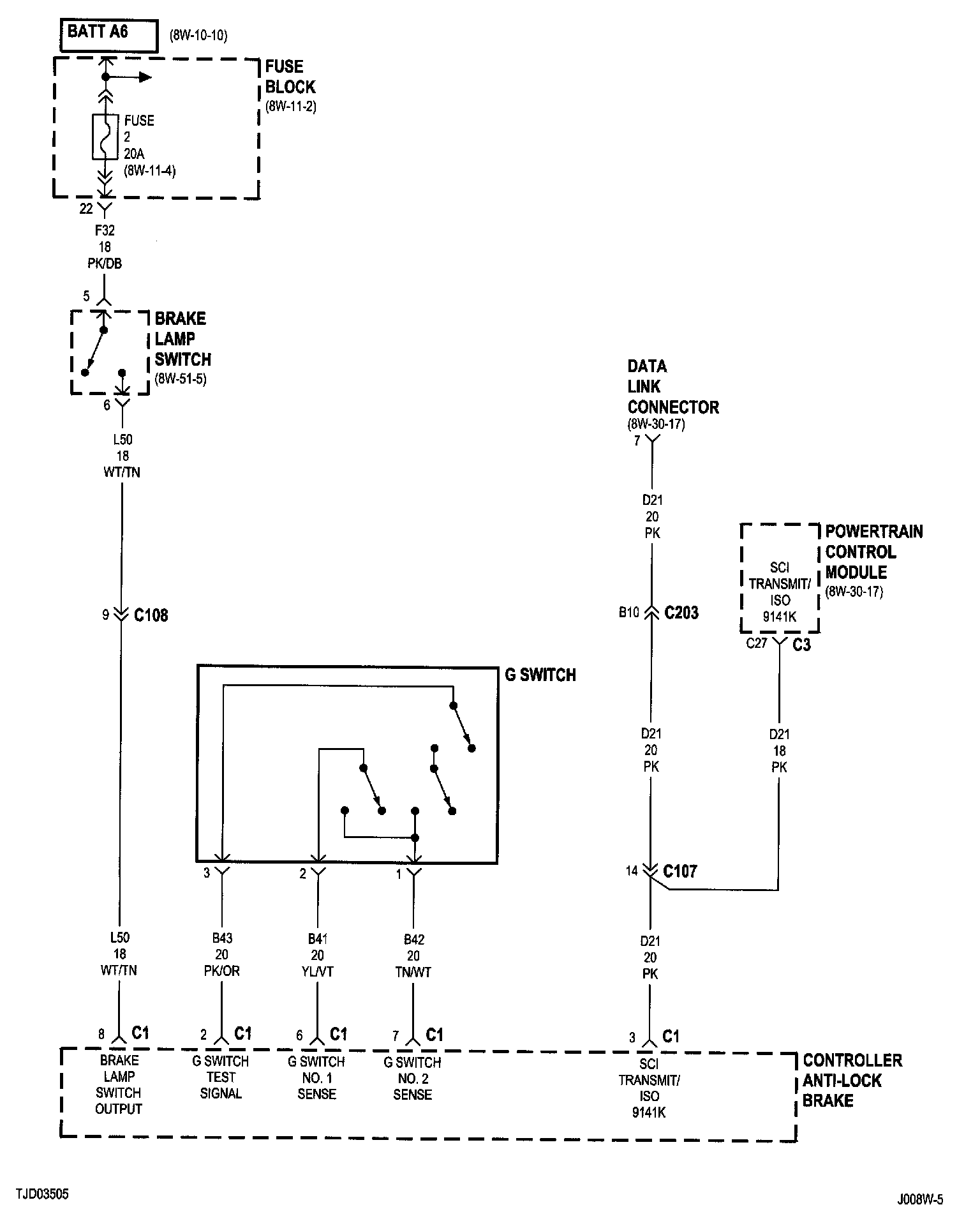

8w-35-5:




Brake Lamp Switch
Controller Anti-Lock Brake
Data Link Connector
Fuse 2 (FB)
Fuse Block
G Switch
Powertrain Control Module

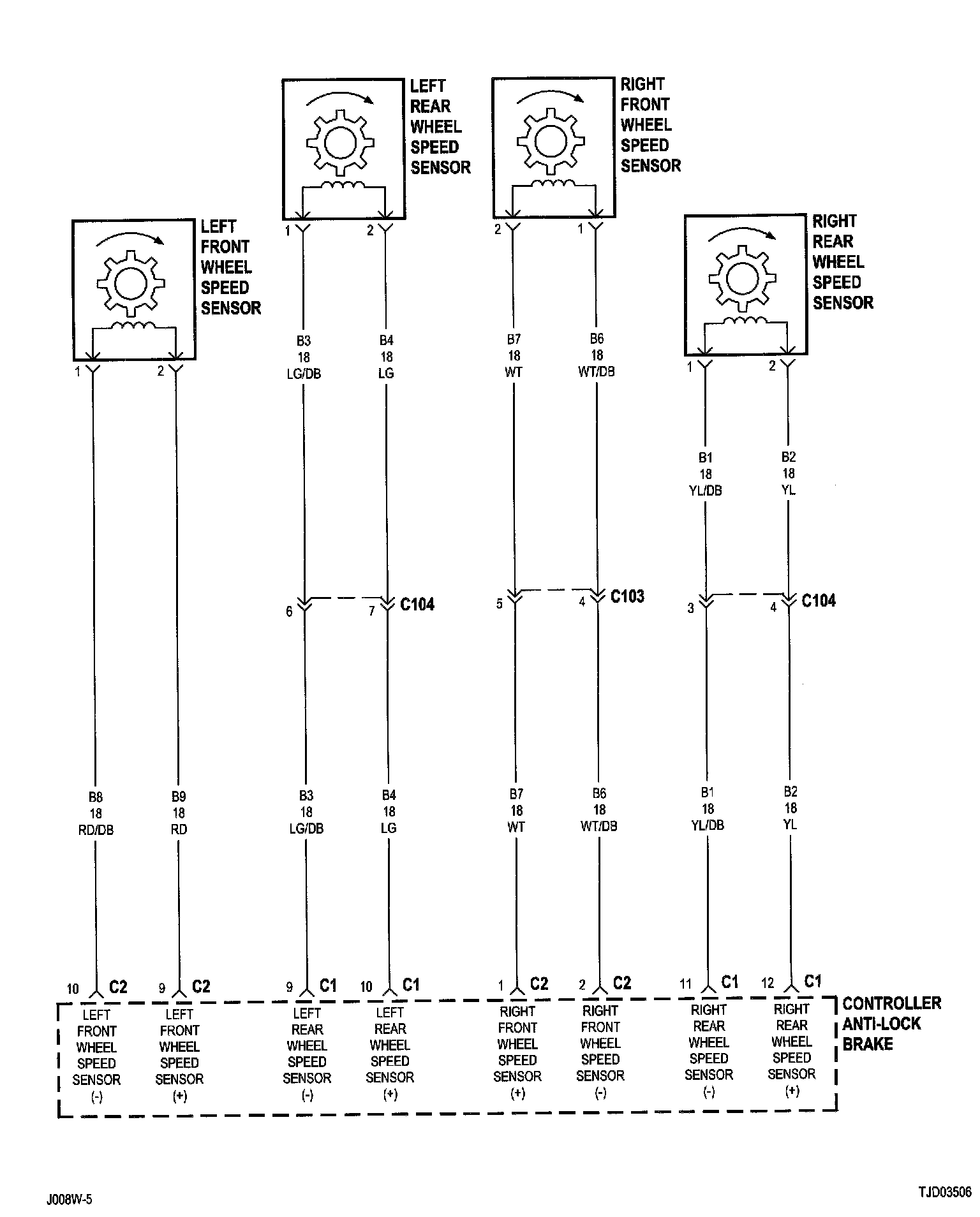

8w-35-6:




Controller Anti-Lock Brake
Left Front Wheel Speed Sensor
Left Rear Wheel Speed Sensor
Right Front Wheel Speed Sensor
Right Rear Wheel Speed Sensor


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams
