Electrical Diagrams

8w-42-2 (Heater Only):

A/C- Heater Control
Blend Door Actuator
Blower Motor
Blower Motor Relay
Blower Motor Resistor Block
Fuse 8 (FB)
Fuse Block
G200
G202
G203
Power Distribution Center
S208

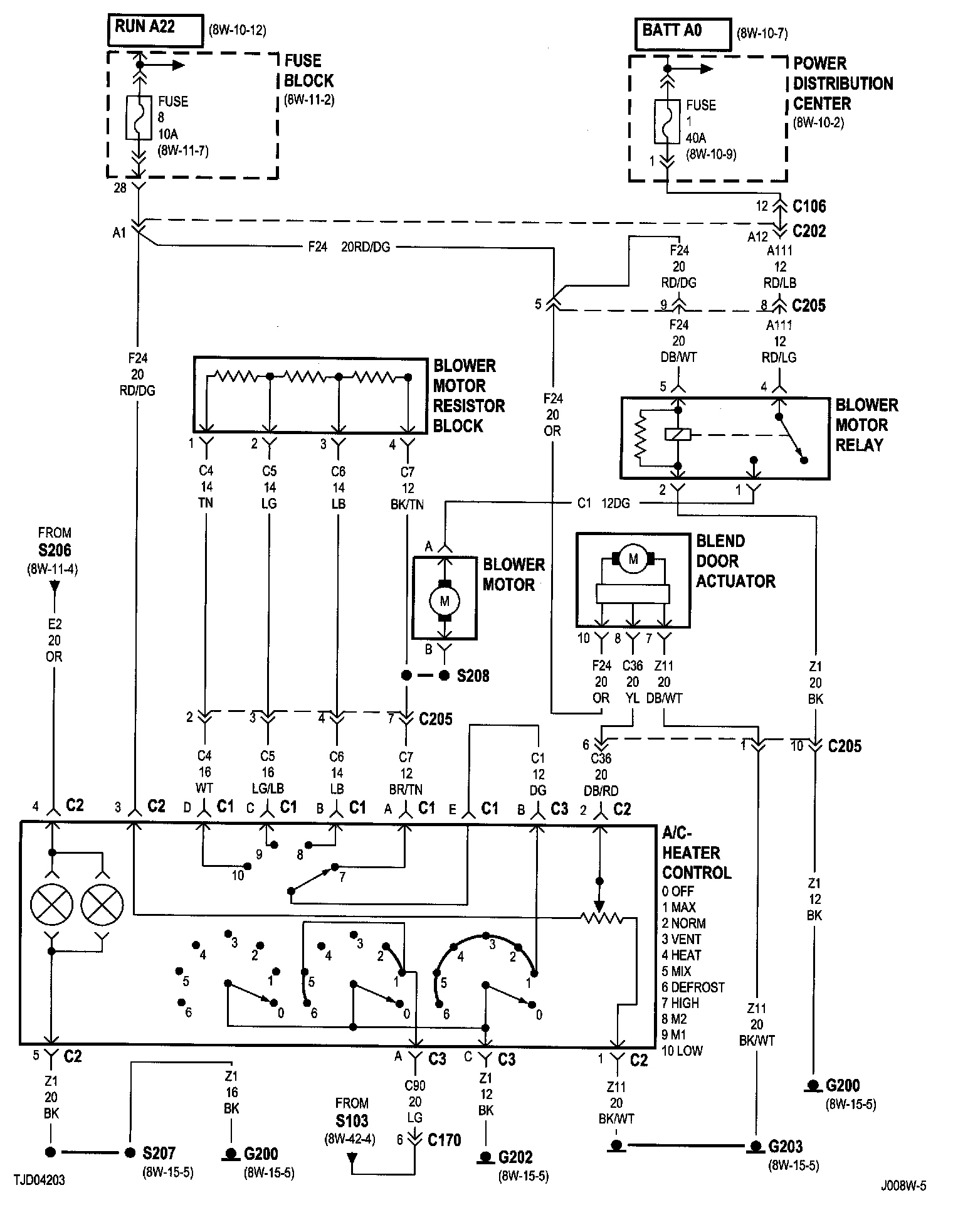

8w-42-3:

A/C- Heater Control
Blend Door Actuator
Blower Motor
Blower Motor Relay
Blower Motor Resistor Block
Fuse 8 (FB)
Fuse Block
G200
G202
G203
Power Distribution Center
S208

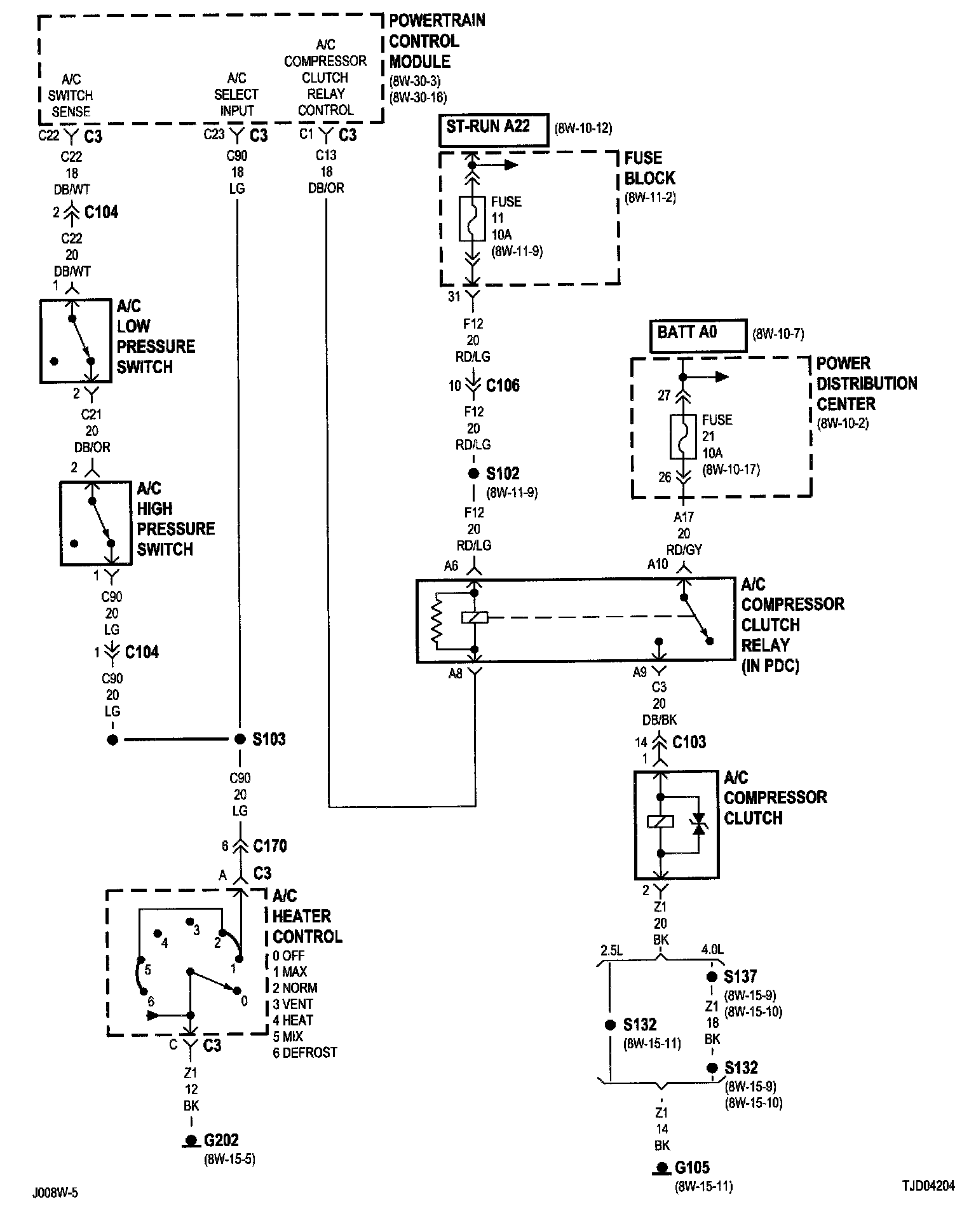

8w-42-4:

A/C Compressor Clutch
A/C Compressor Clutch Relay
A/C Heater Control
A/C High Pressure Switch
Fuse 11 (FB)
Fuse 21 (PDC)
Fuse Block
G105
G202
Power Distribution Center
Powertrain Control Module
S103

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams
