Vacuum Reservoir HVAC: Service and Repair

REMOVAL
1. Remove the battery and battery tray from the engine compartment.

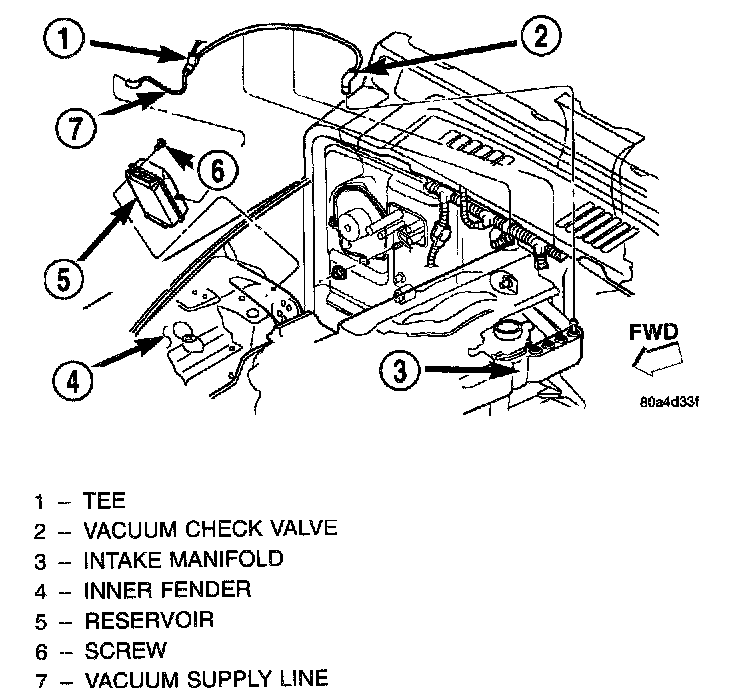

Vacuum Reservoir Remove/Install:

2. Unplug the vacuum supply line connector from the vacuum reservoir.
3. Remove the one screw that secures the reservoir to the inner fender panel under the battery tray and behind the right front wheel house.
4. Remove the vacuum reservoir from the engine compartment.

INSTALLATION
1. Reverse the removal procedures to install.
2. Tighten the reservoir mounting screw to 1 Nm (10 in. lbs.).
