Backup Light Bulb: Service and Repair

The back-up lamp bulb is located with-in the tail lamp.

REMOVAL

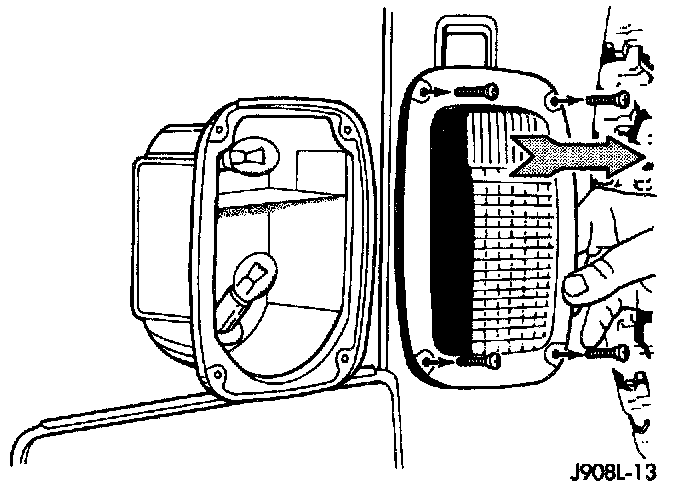

Lens Removal:

1. Remove the screws attaching the lens to the tail lamp housing.
2. Separate the lens from the tail lamp housing.
3. Push the bulb inward and rotate counter-clockwise.
4. Remove the bulb from the lamp socket.

INSTALLATION
1. Install a replacement bulb in the lamp socket.
2. Position the lens on the lamp housing.
3. Install the screws. Tighten the screws securely.
