Front Lighting

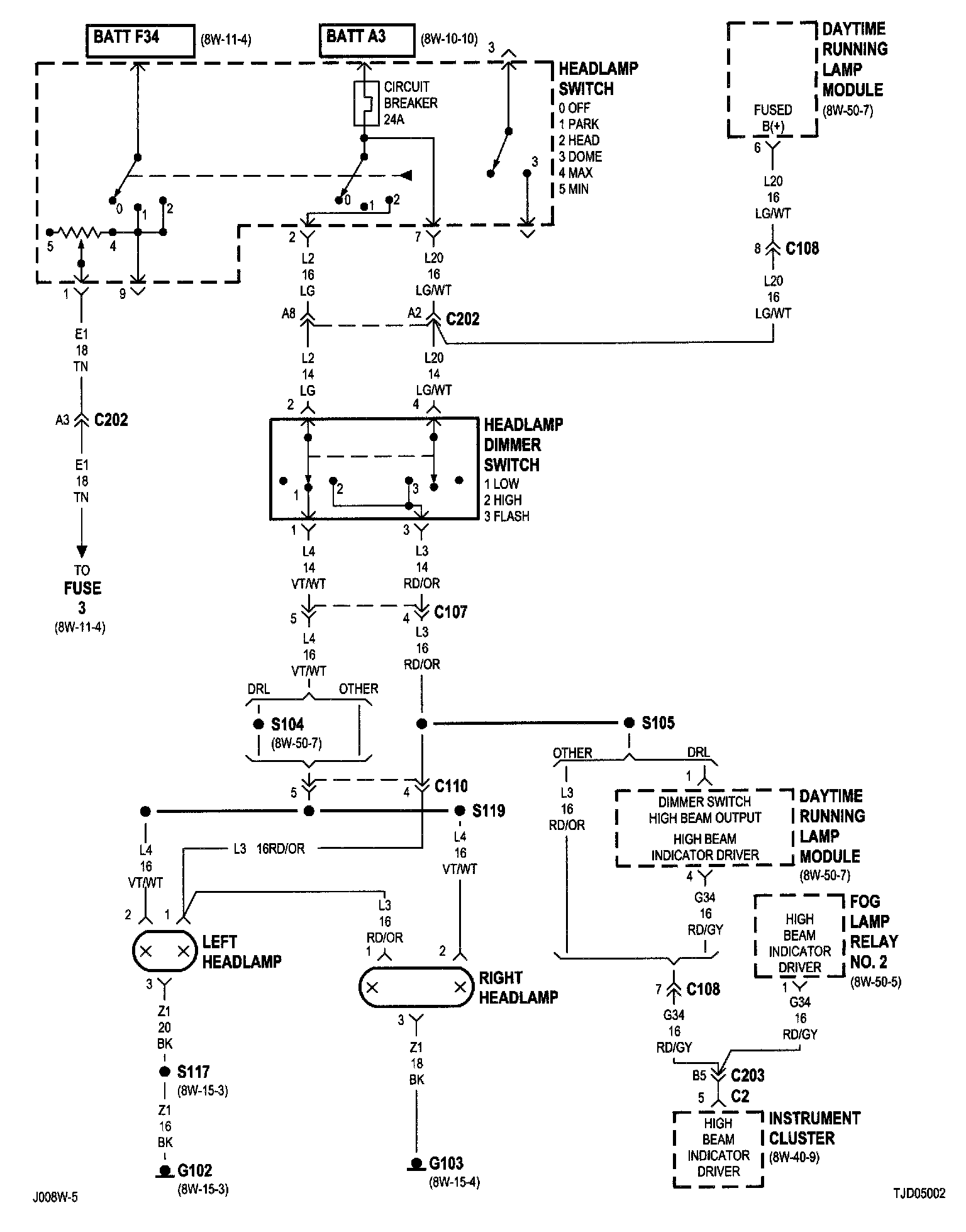

8w-50-2:




Circuit Breaker
Daytime Running Lamp Module
Fog Lamp Relay No.2
Fuse 3 (FB)
G102
G103
Headlamp Dimmer Switch
Headlamp Switch
Instrument Cluster
Left Headlamp
Right Headlamp
S105
S119


8w-50-3:




Driver Door Ajar Switch
G200
Headlamp Switch
Instrument Cluster
Key-In Switch

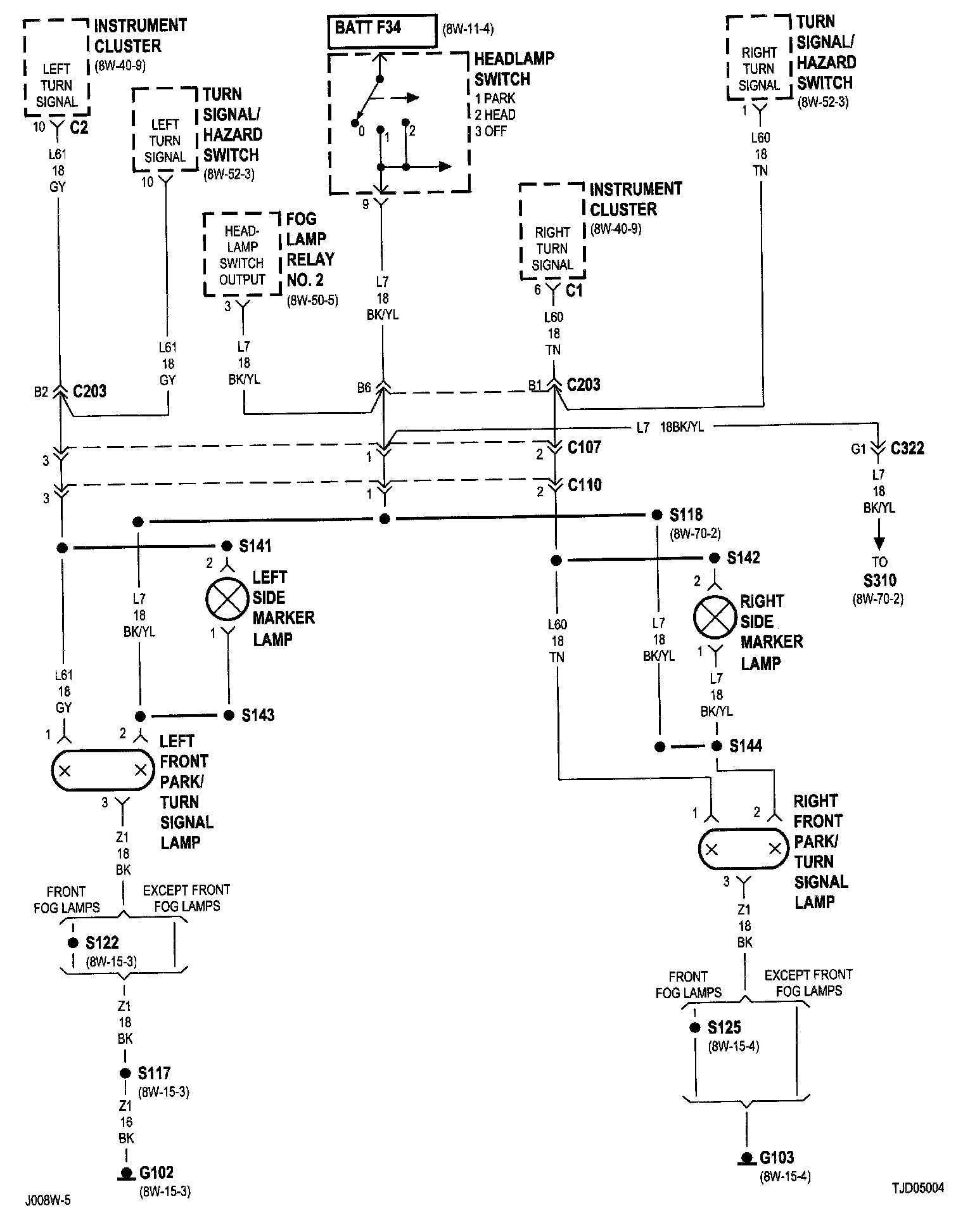

8w-50-4:




Fog Lamp Relay No.2
G102
G103
Headlamp Switch
Instrument Cluster
Left Front Park/Turn Signal Lamp
Left Side Marker Lamp
Right Front Park/Turn Signal Lamp
Right Side Marker Lamp
Turn Signal/Hazard Switch
S141
S142

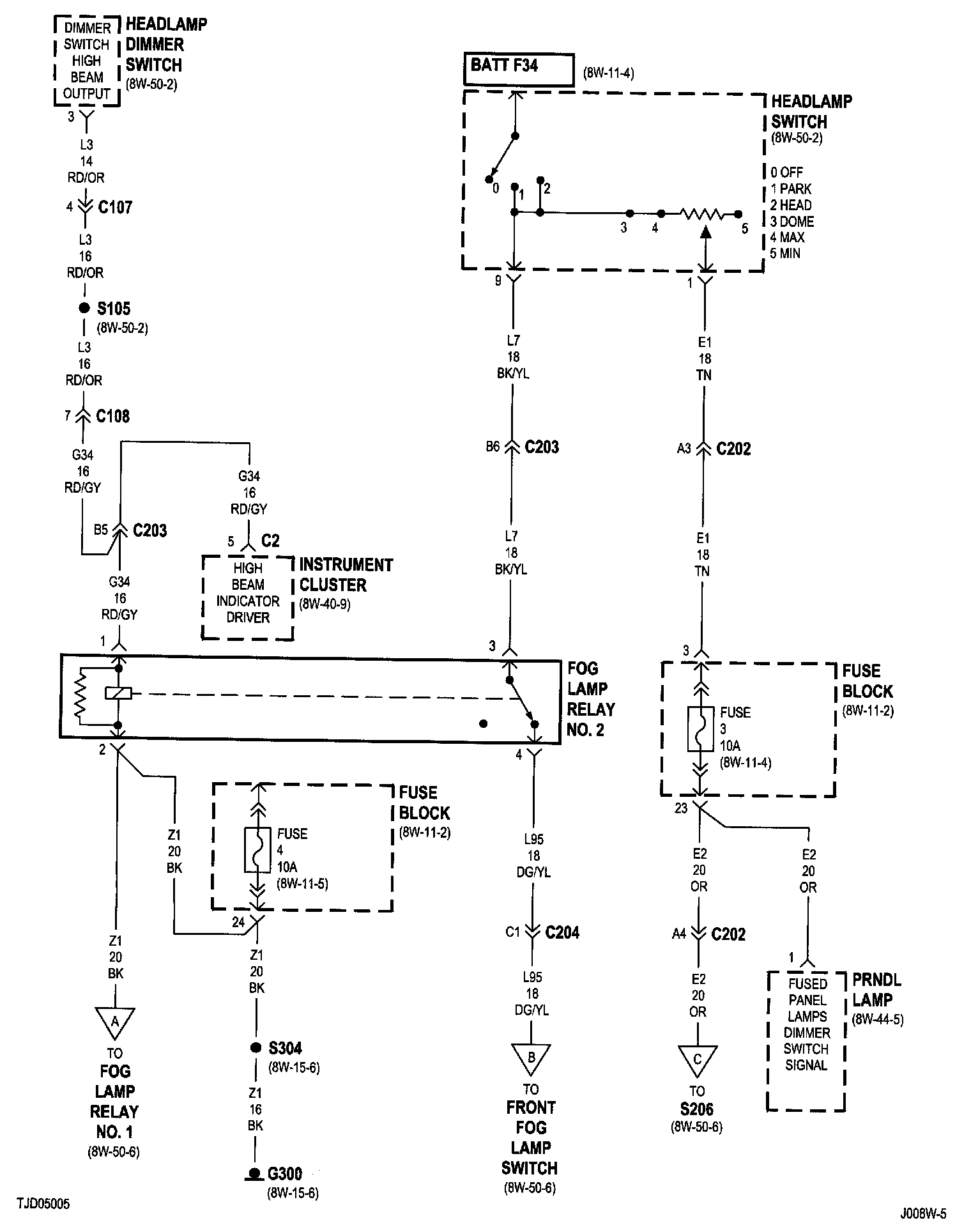

8w-50-5 (Fog Lamps):




Fog Lamp Relay No.2
Fuse 3 (FB)
Fuse 4 (FB)
Fuse Block
G300
Headlamp Dimmer Switch
Headlamp Switch
Instrument Cluster
PRNDL Lamp

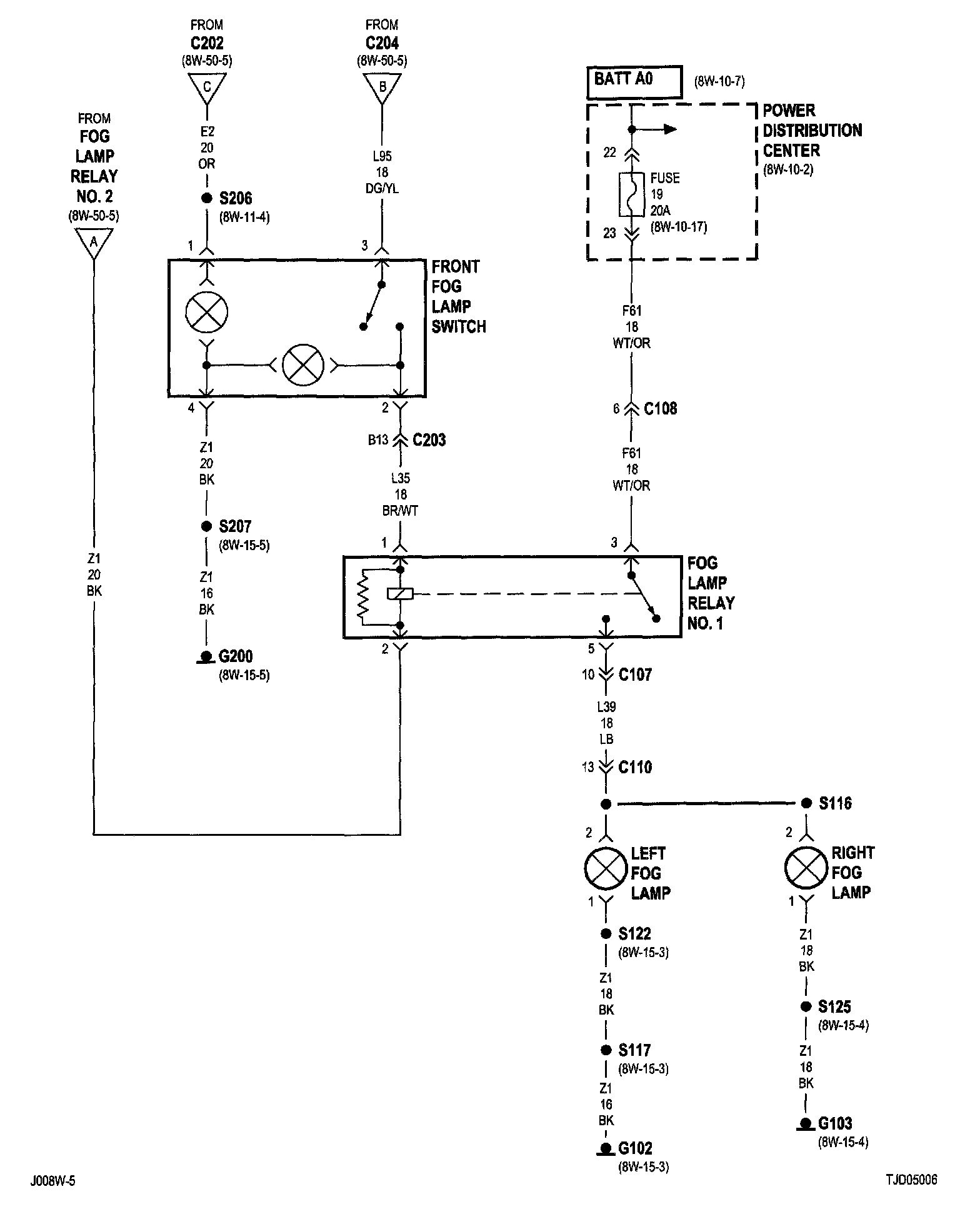

8w-50-6 (Fog Lamps):




Fog Lamp Relay No.1
Front Fog Lamp Switch
Fuse 19 (PDC)
G102
G103
G200
Left Fog Lamp
Power Distribution Center
Right Fog Lamp

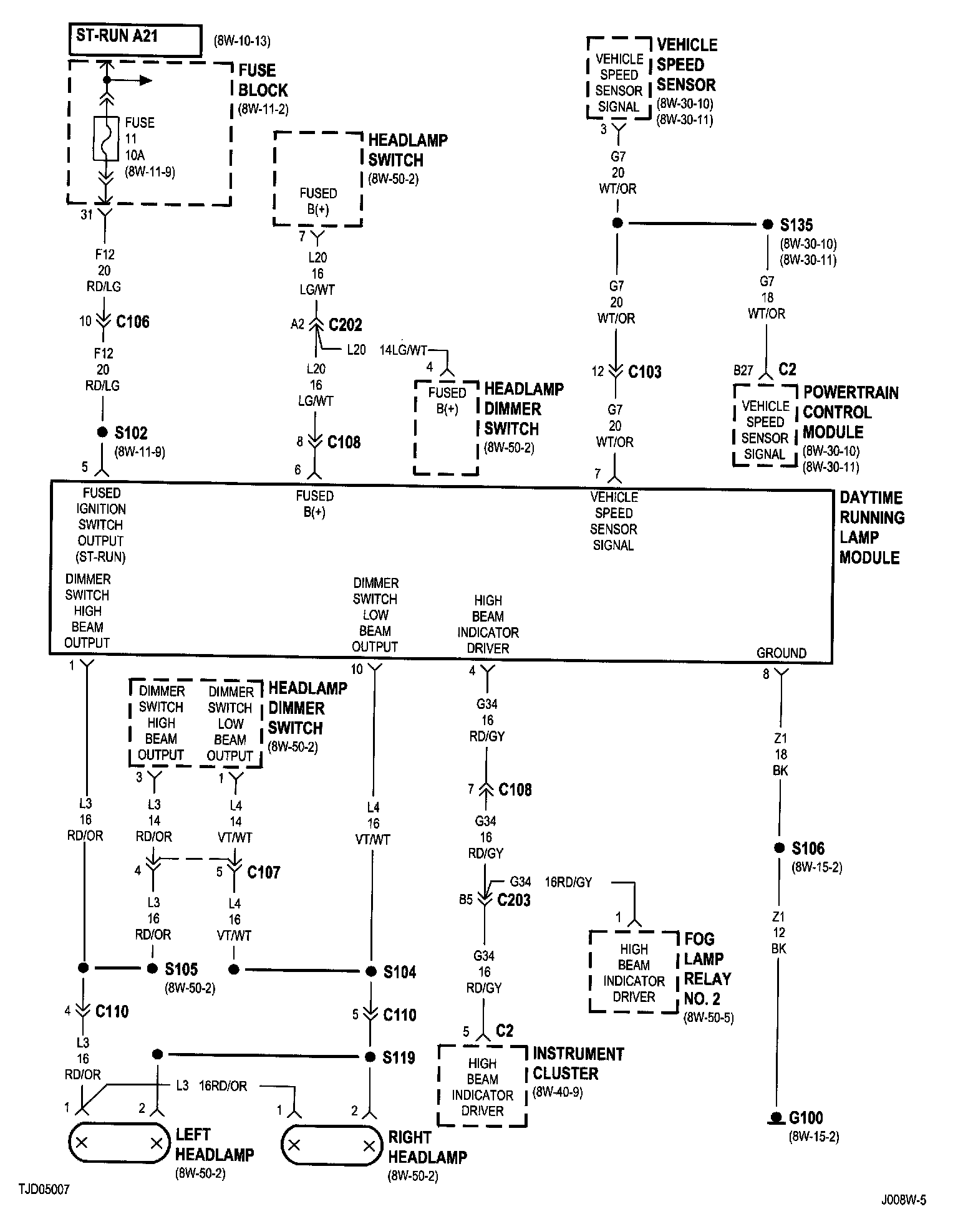

8w-50-7 (DRL):




Daytime Running Lamp Module
Fog Lamp Relay No.2
Fuse 11 (FB)
Fuse Block
G100
Headlamp Dimmer Switch
Headlamp Switch
Instrument Cluster
Left Headlamp
Powertrain Control Module
Right Headlamp
Vehicle Speed Sensor
S104
S119


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams
