Interior Lighting

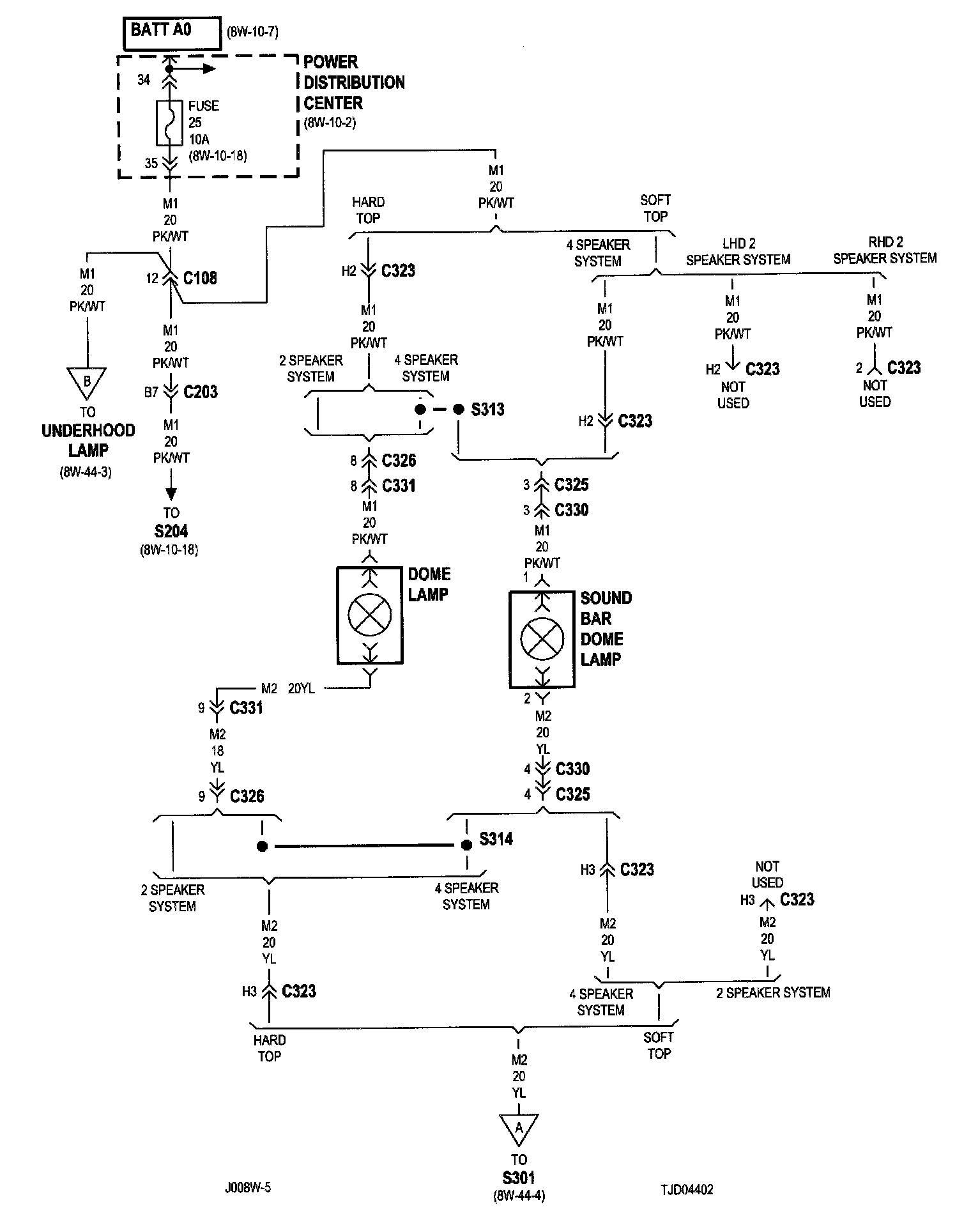

8w-44-2:




Dome Lamp
Fuse 25 (PDC)
Power Distribution Center
Sound Bar Dome Lamp
S314


8w-44-3:




G100
Underhood Lamp

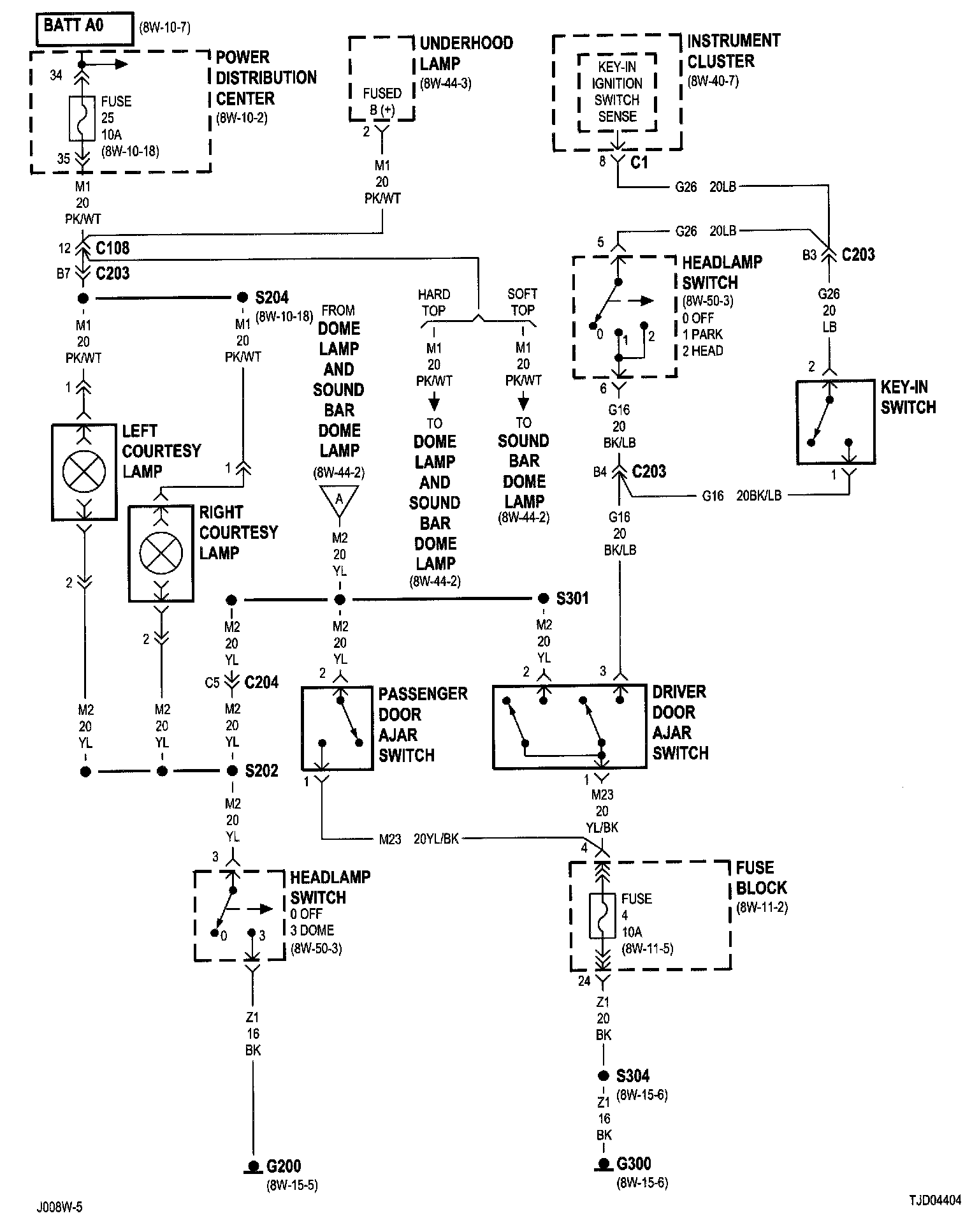

8w-44-4:




Driver Door Ajar Switch
Fuse 4 (FB)
Fuse 25 (PDC)
Fuse Block
G200
G300
Headlamp Switch
Instrument Cluster
Key-In Switch
Left Courtesy Lamp
Passenger Door Ajar Switch
Power Distribution Center
Right Courtesy Lamp
Sound Bar Dome Lamp
Underhood Lamp
S202
S301

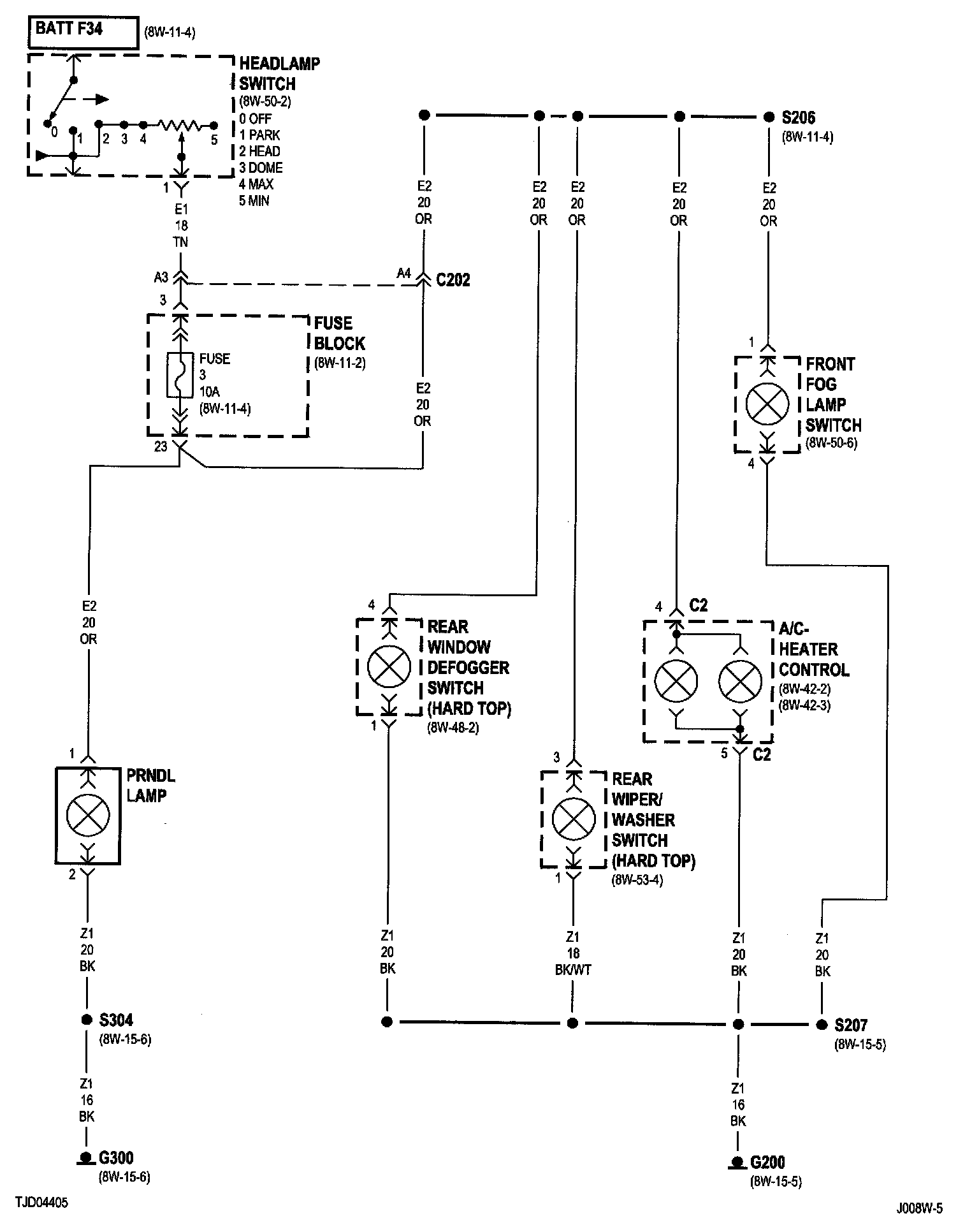

8w-44-5:




A/C- Heater Control
Front Fog Lamp Switch
Fuse 3 (FB)
Fuse Block
G200
G300
Headlamp Switch
PRNDL Lamp
Rear Window Defogger Switch
Rear Wiper/Washer Switch

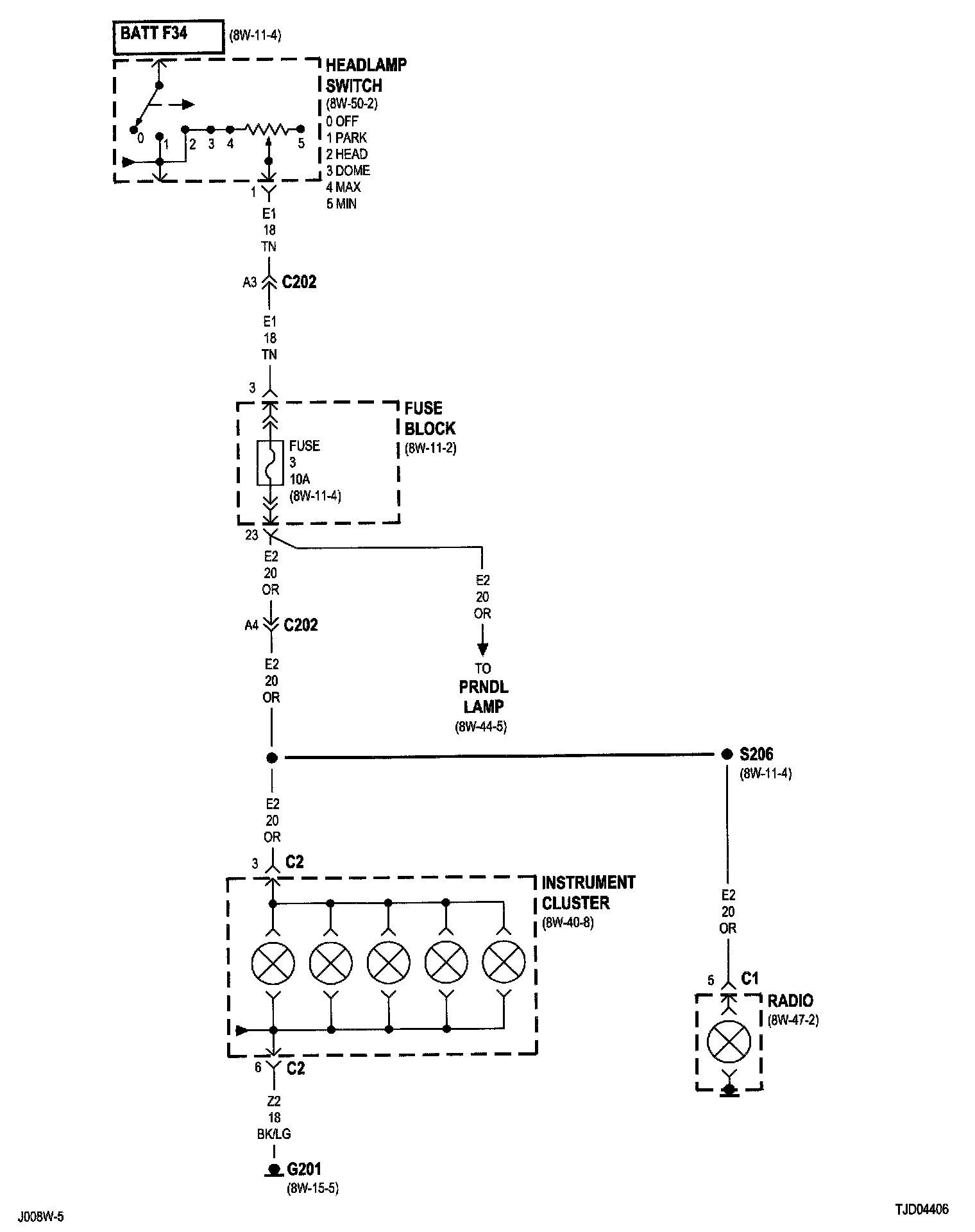

8w-44-6:




Fuse 3 (FB)
Fuse Block
G201
Headlamp Switch
Instrument Cluster
PRNDL Lamp
Radio


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams
