Fog/Driving Lamp: Adjustments

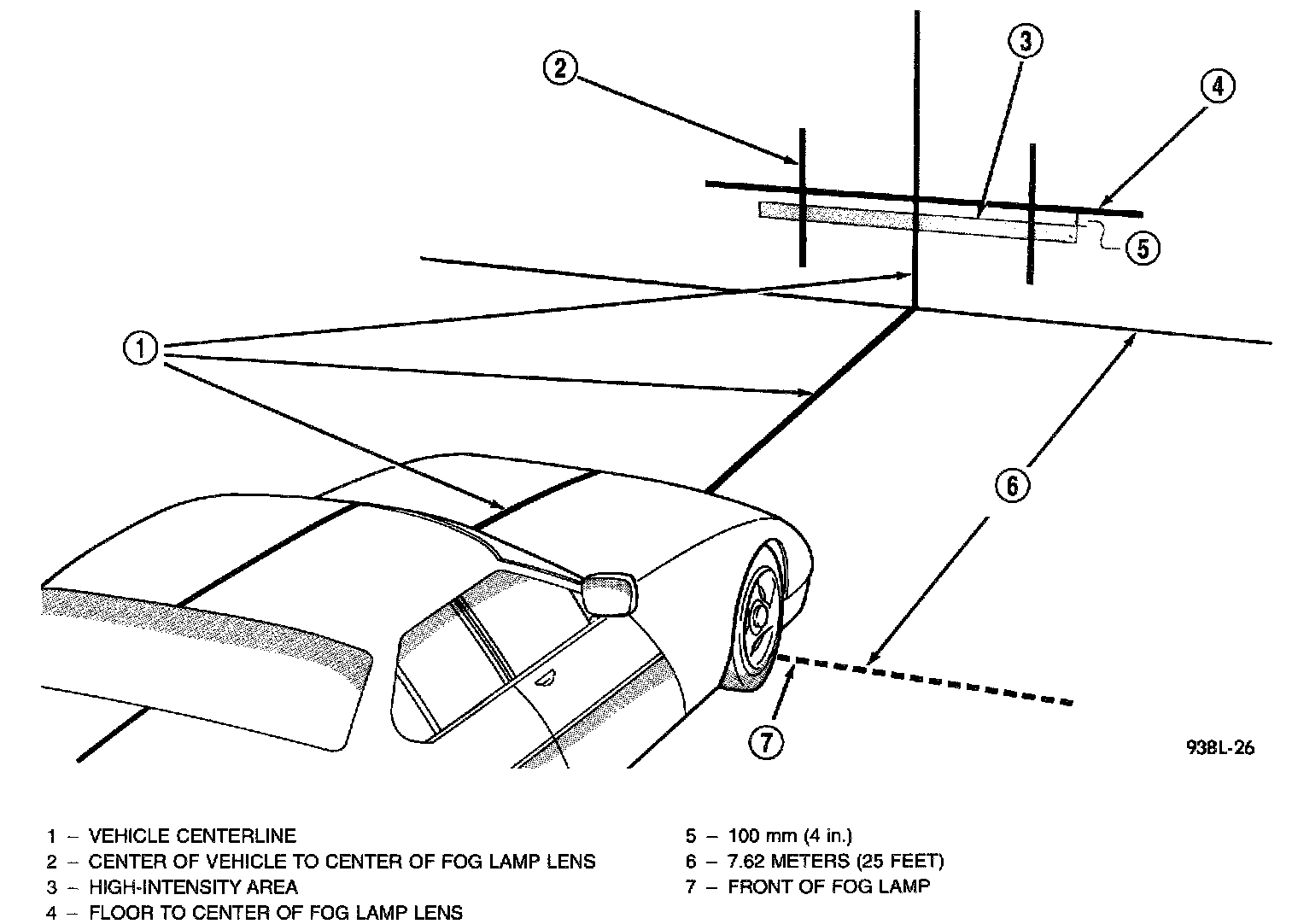

Fog Lamp Alignment - Typical:
Prepare an alignment screen. A properly aligned
fog lamp will project a pattern on the alignment screen
100 mm (4 in.) below the fog lamp centerline and straight ahead.

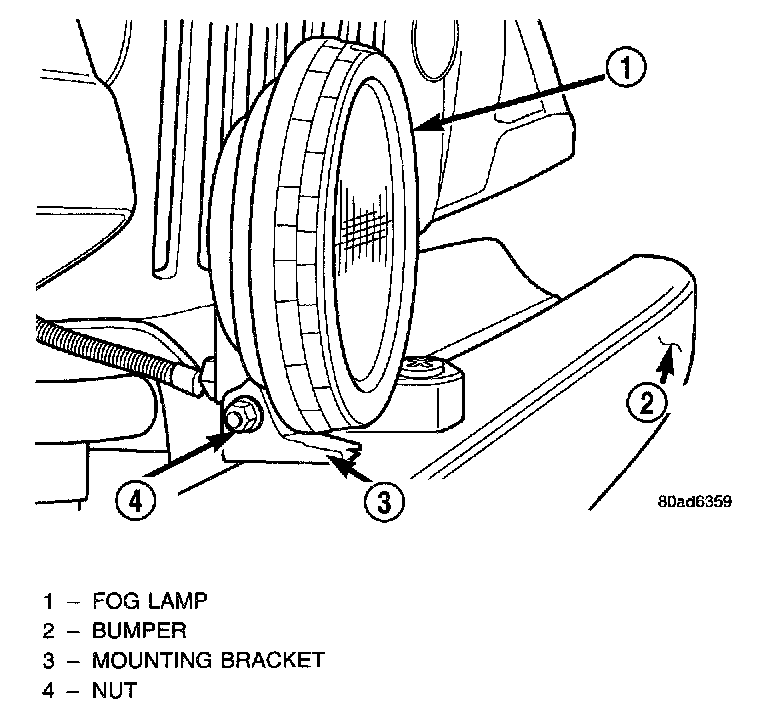

Fog Lamp Adjustment:
1.
Loosen the nut attaching the
fog lamp to the mounting bracket.
2.
Move the
fog lamp to adjust beam height.
3.
Tighten the nut attaching the
fog lamp to the mounting bracket.
