Fog/Driving Lamp Bulb: Service and Repair

REMOVAL
1. Remove the screws that attach the reflector to the lamp housing.
2. Separate the reflector from the lamp housing.
3. Squeeze the bulb retainer together to disengage it from the reflector.

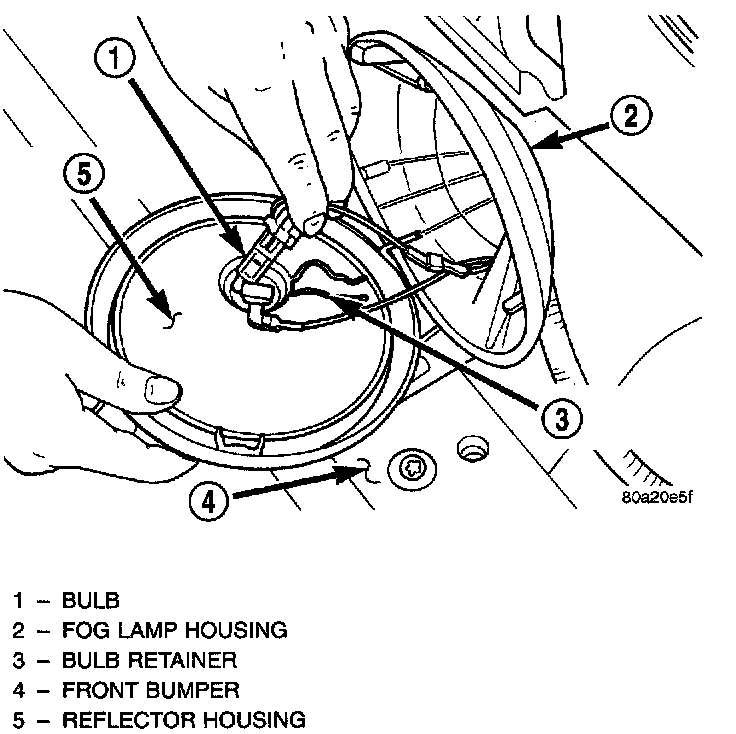

Fog Lamp Bulb:

4. Remove the bulb/element from the reflector.
5. Disconnect the electrical connector.

INSTALLATION

CAUTION: Do not touch the bulb glass with fingers or other oily surfaces. Reduced bulb life will result.

1. Connect the electrical connector.
2. Position the bulb/element in the reflector.
3. Engage the bulb retainer.
4. Position the reflector in the lamp housing.
5. Install the screws that attach the reflector to the lamp housing.
