Parking Lamp: Service and Repair

REMOVAL

Park/Turn Signal Lamp:

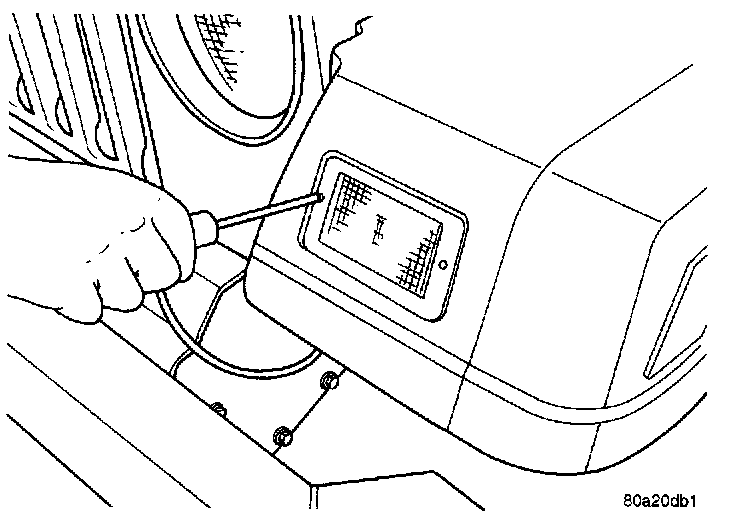

1. Remove the park/turn signal lamp housing screws.
2. Separate the park/turn signal lamp housing from the fender.
3. Rotate bulb socket one third turn counter-clockwise and separate bulb socket from lamp

INSTALLATION
1. Install the bulb socket in the lamp housing.
2. Position the park/turn signal lamp housing in the fender.
3. Install the park/turn signal lamp housing screws.
