No Crank Condition

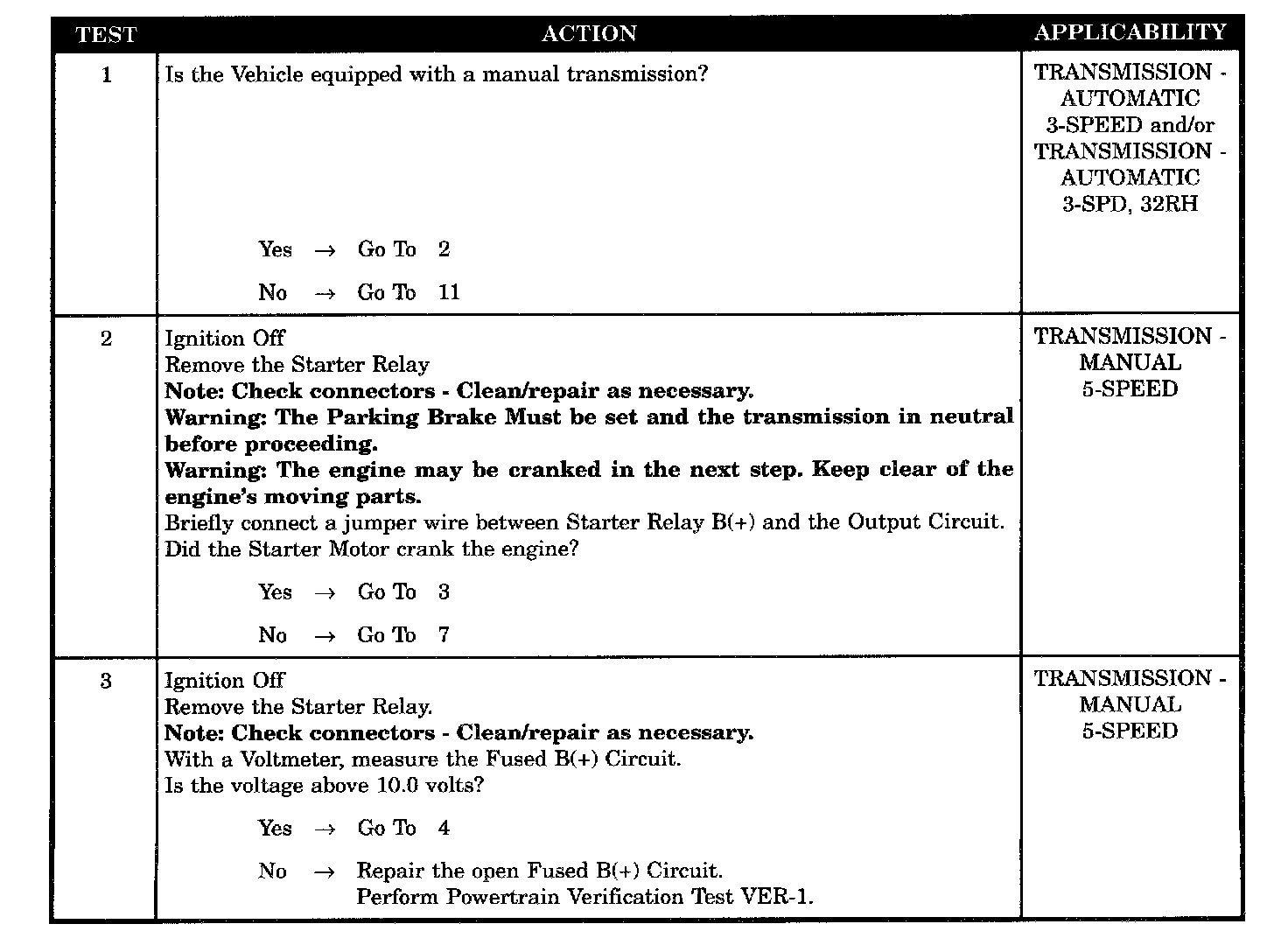

Tests 1 - 3:

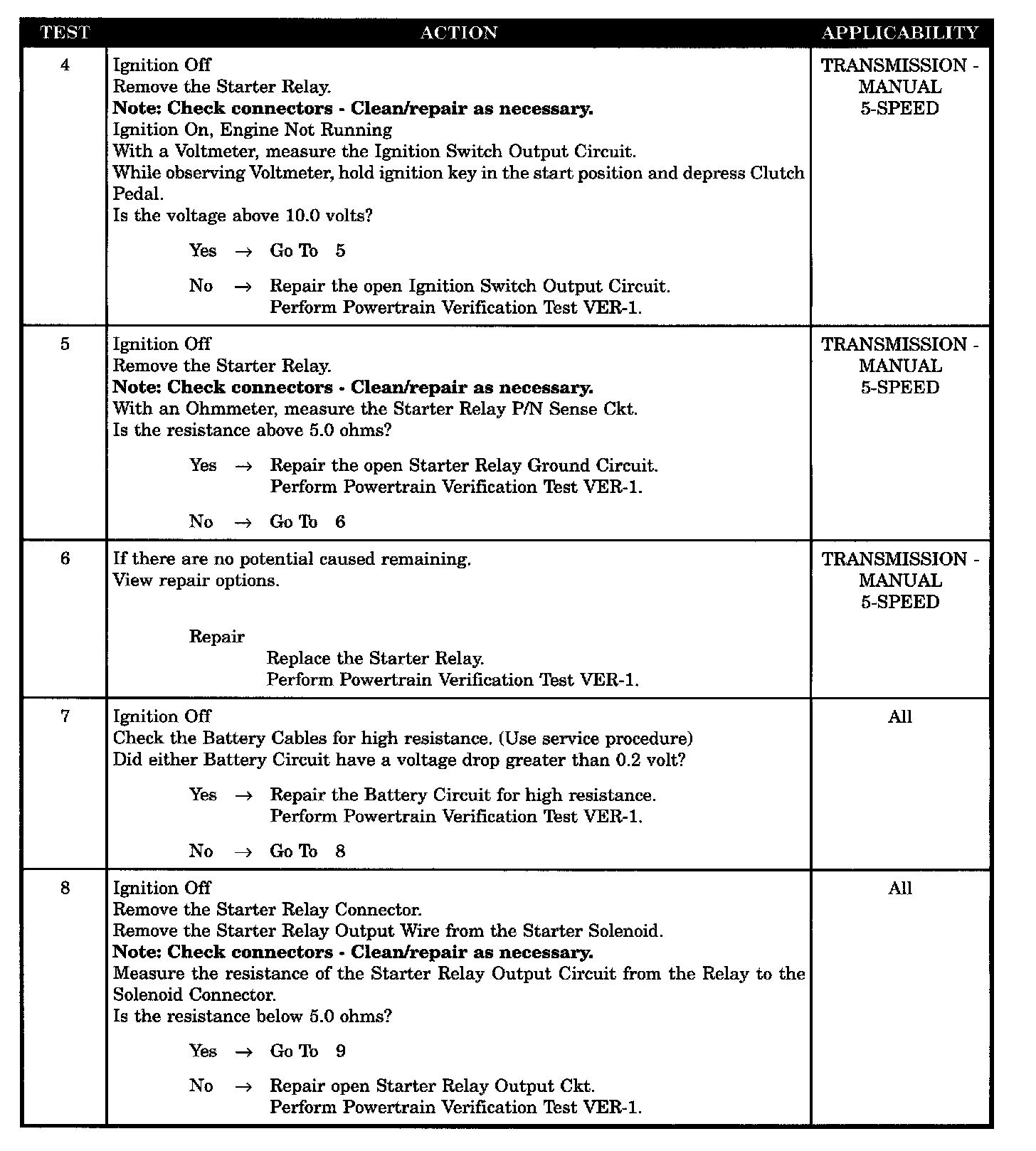

Tests 4 - 8:

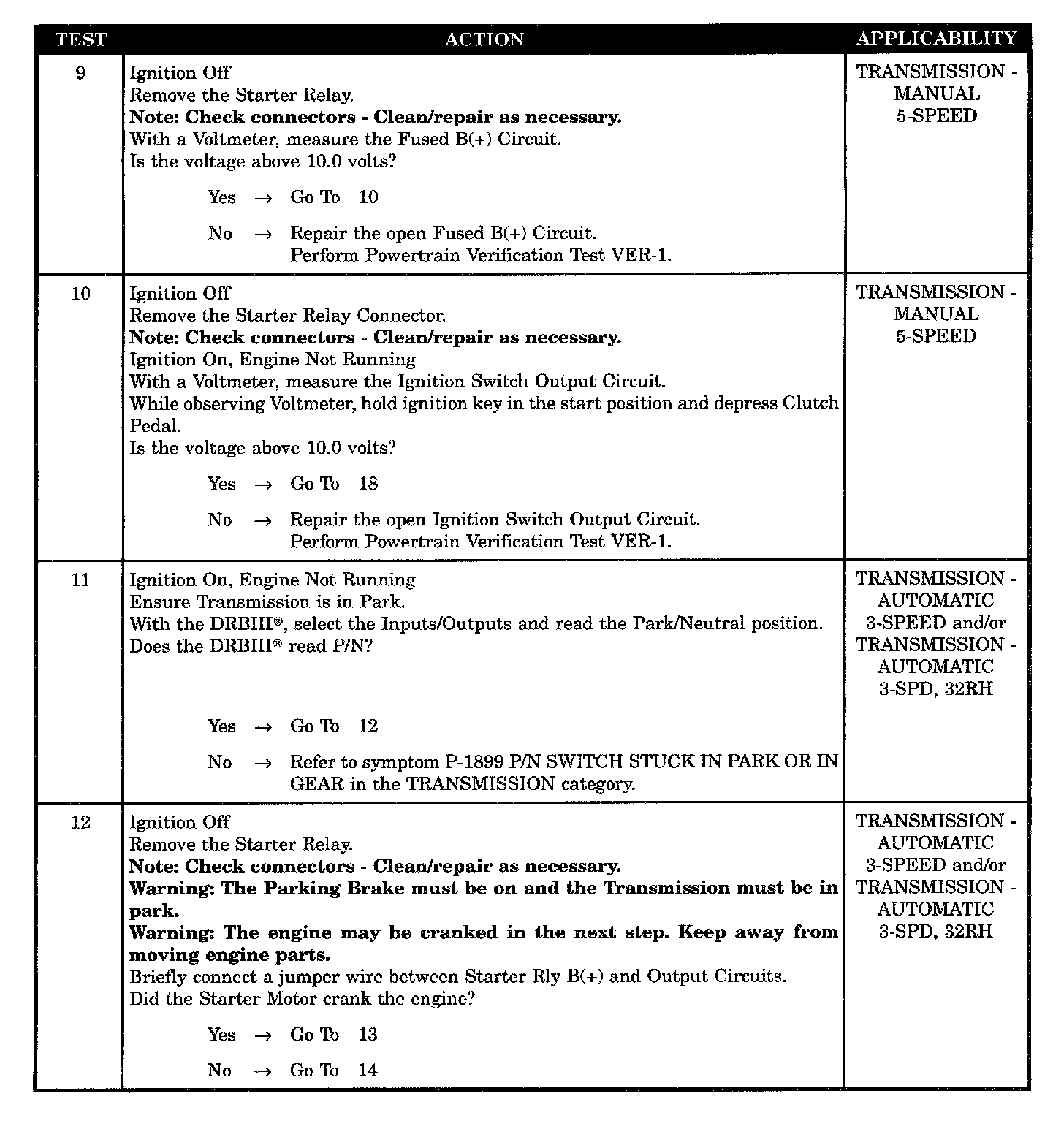

Tests 9 - 12:

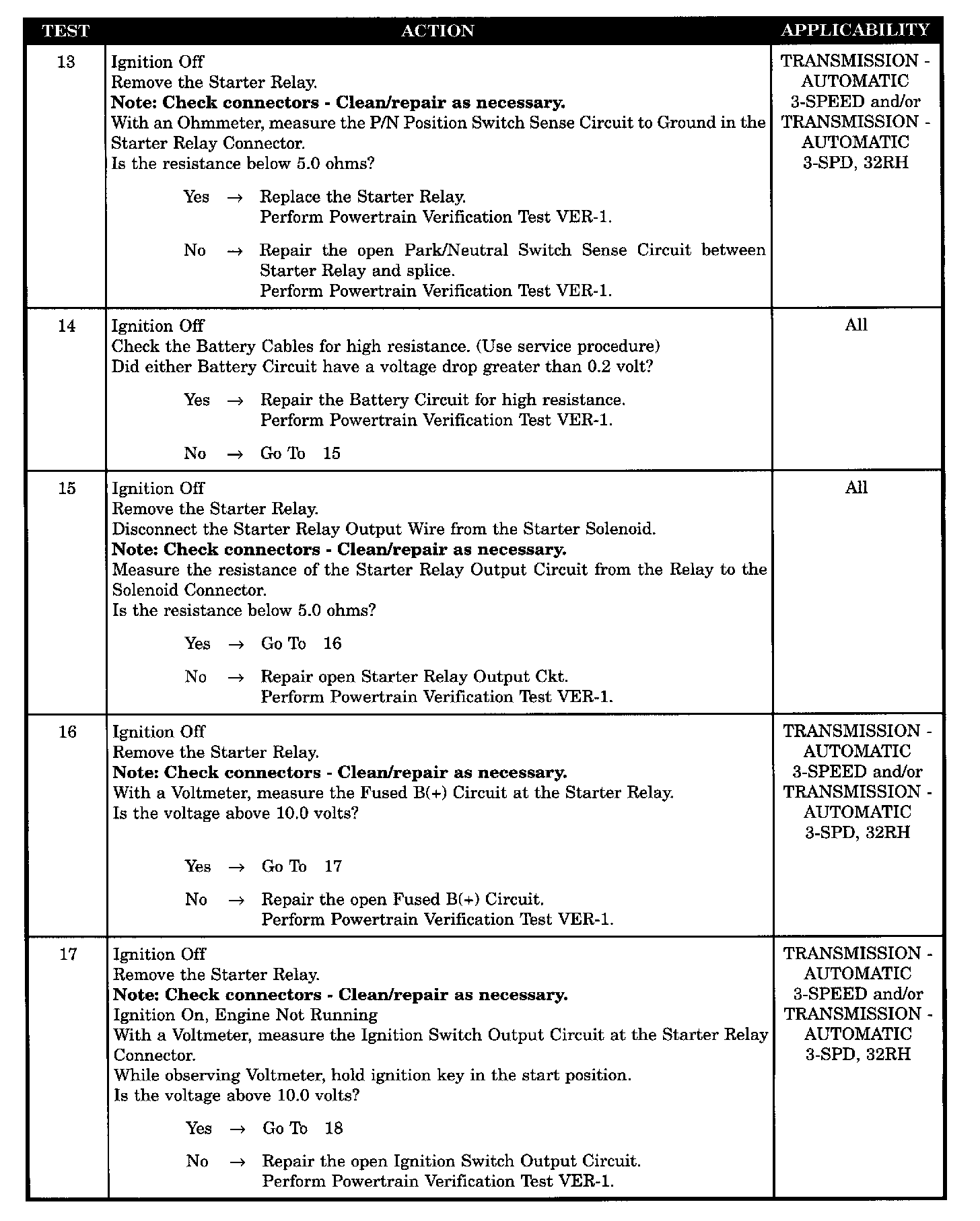

Tests 13 - 17:
Test 18:
SYMPTOM ENGINE WILL NOT CRANK
POSSIBLE CAUSES -
Battery circuit resistance too high
-
Fused B(+) circuit open
-
Ignition switch output circuit open
-
Park/Neutral switch sense circuit open
-
Starter relay ground circuit open
-
Starter relay output circuit open
-
Starter motor
-
Starter relay
