Checking Charging System Operation With No DTC's Present

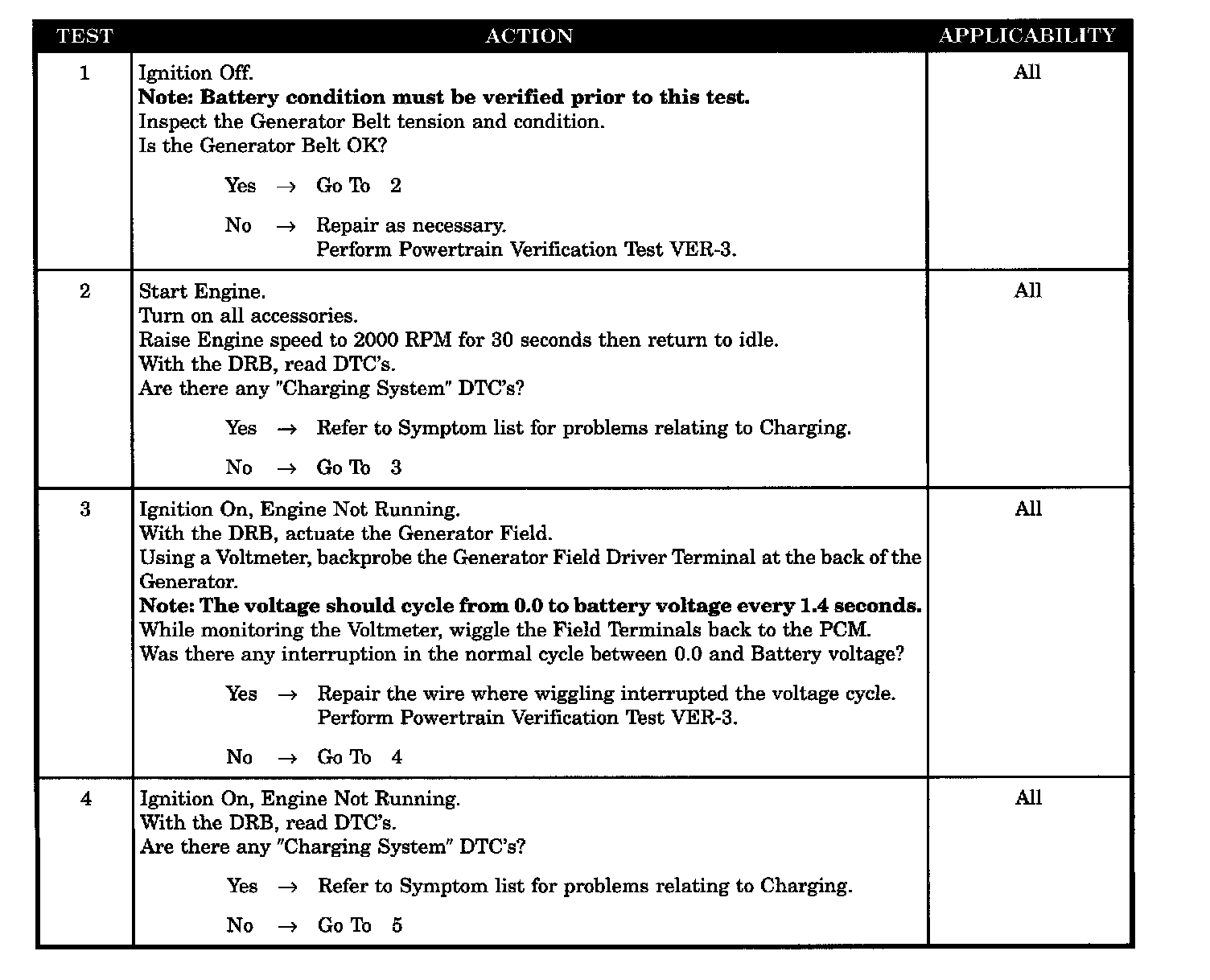

Tests 1 - 4:

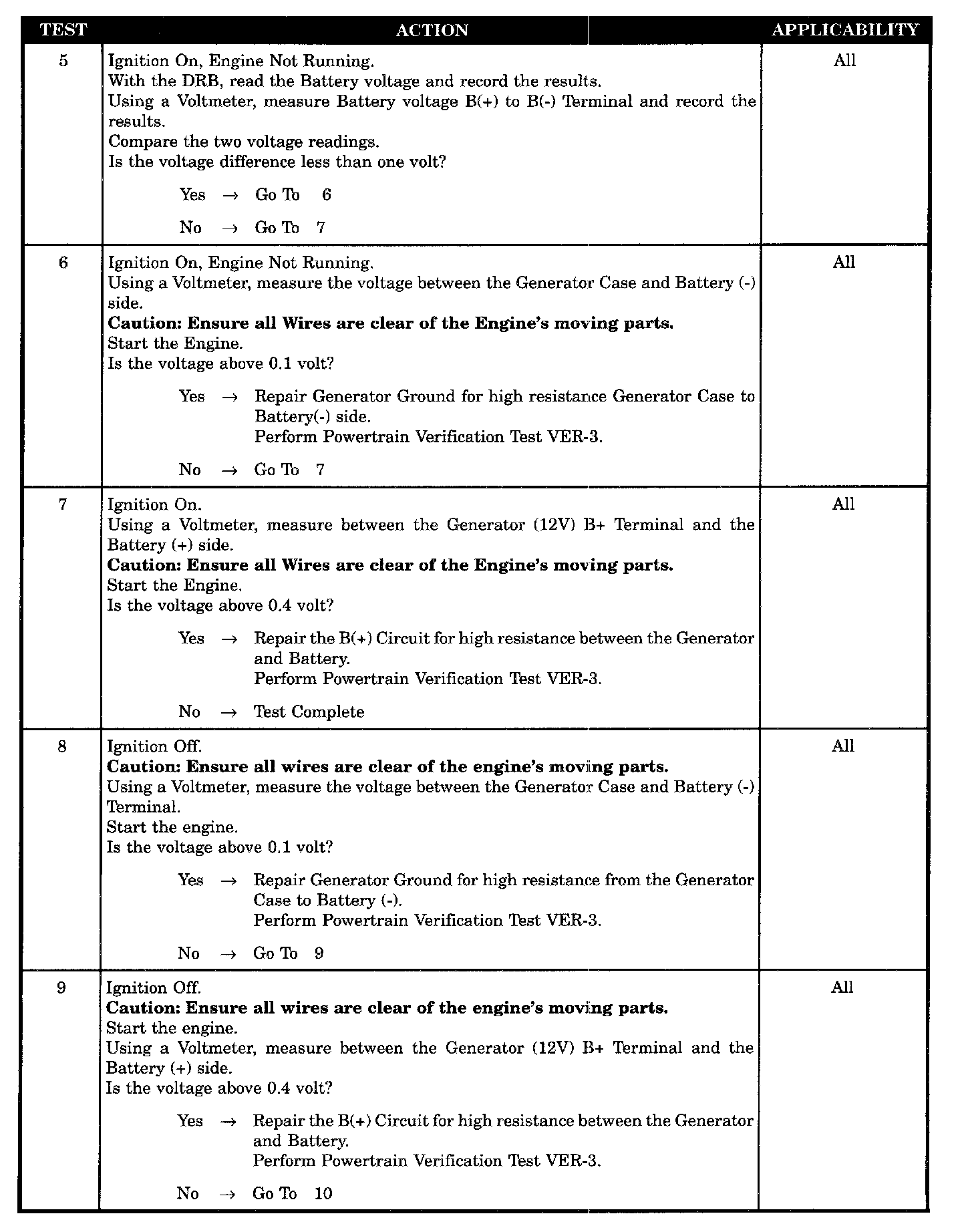

Tests 5 - 9:

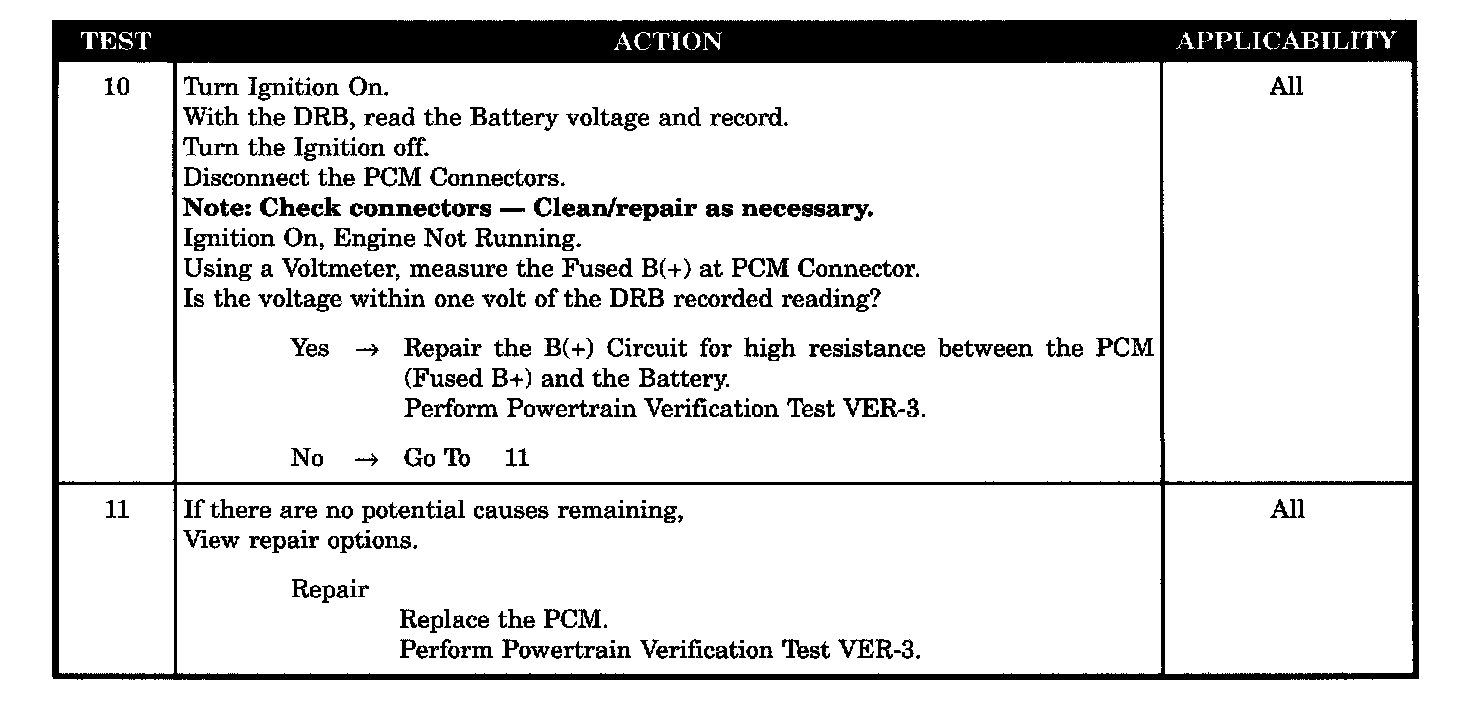

Tests 10 - 11:
SYMPTOM CHARGING SYSTEM NO CODE
POSSIBLE CAUSES -
Trouble codes present
-
Trouble codes present
(2000 rpm) -
Generator field terminal intermittent defect
-
Generator ground circuit high resistance
-
Generator belt
-
B(+) circuit high resistance
(0.4 volt) -
B(+) circuit high resistance
(1.0 volt) -
PCM (
charging system no code)
