Door Glass

DOOR GLASS

REMOVAL

1. Remove the door trim panel and the waterdam.
2. Pull the door glass run channel from the door sail.
3. Roll glass fully downward.

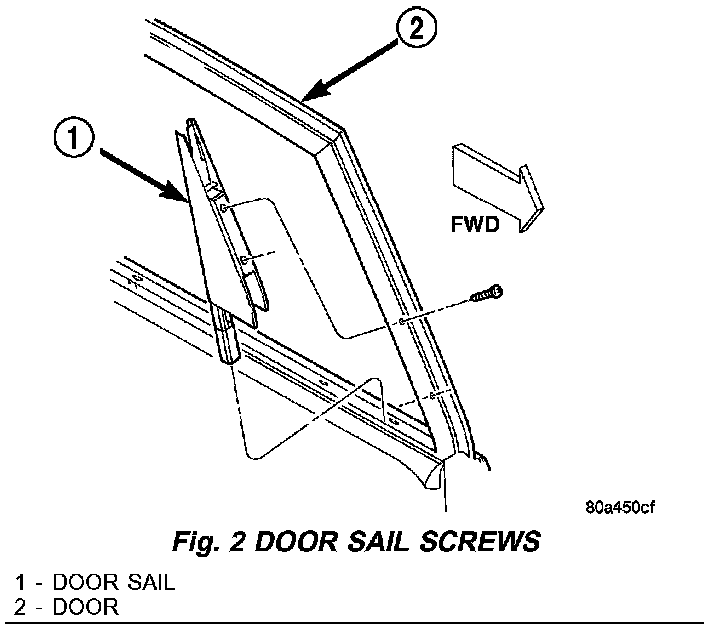

Fig. 2:

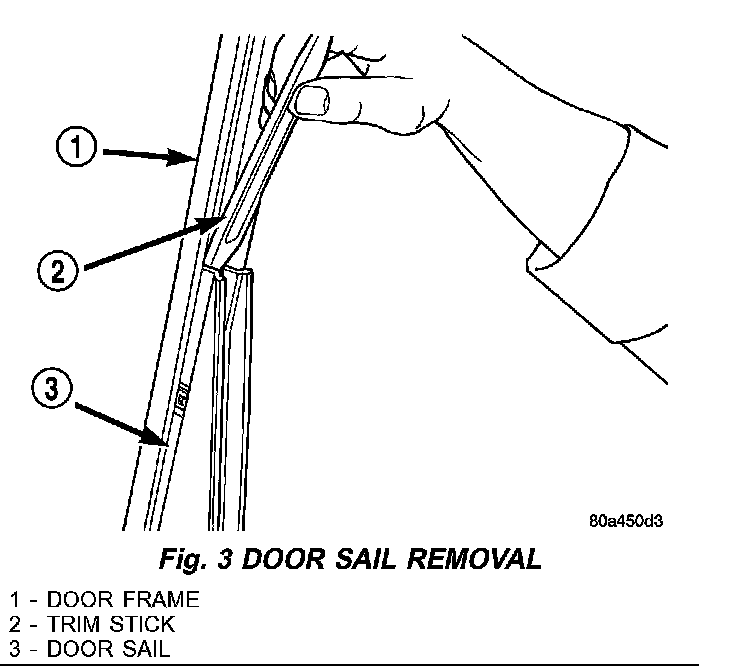

Fig. 3:

4. Using a trim stick C-4755 or equivalent, remove the screws and remove the door sail panel (Fig. 2) and (Fig. 3).
5. Roll glass 1/4 upward to access regulator arm guide.
6. Remove the screws that attach the regulator arm guide to the glass.
7. Lift the glass upward while tilting inward and remove from the door.

INSTALLATION

1. Position the glass in the door ensuring the glass is aligned in the glass run channel.
2. Install the screws that attach the regulator arm guide to the glass.
3. Install the door sail panel.
4. Install the run channel in the door sail.
5. Install the waterdam and the door trim panel.
