Windshield Washer Reservoir: Service and Repair

REMOVAL
1. Disconnect and isolate the battery negative cable.

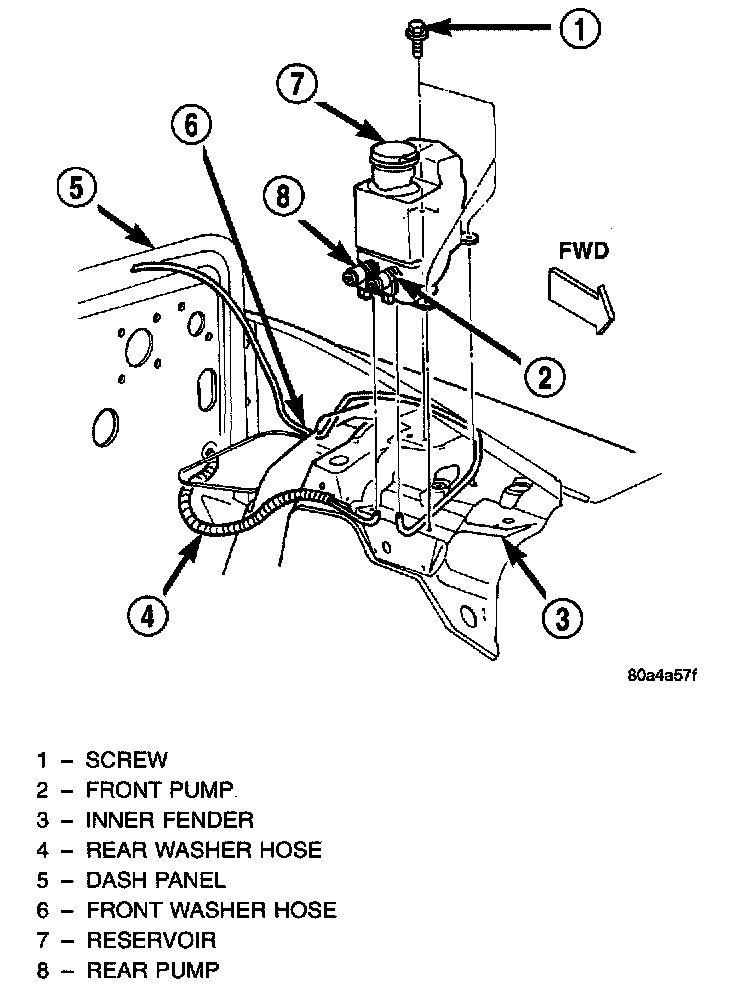

Washer Reservoir Remove/Install:

2. Remove the three screws that secure the washer reservoir to the inner fender.
3. Lift the reservoir far enough to access the washer pump(s).
4. Remove the washer supply hose(s) from the washer pump(s) and drain the washer fluid from the reservoir into a clean container for reuse.
5. Unplug the wire harness connector(s) from the washer pump(s).
6. Remove the washer reservoir from the vehicle.


INSTALLATION
1. Reverse the removal procedures to install.
2. Tighten the reservoir mounting screws to 4 Nm (35 in. lbs.).
