Front

REMOVAL

1. Open and support the hood.

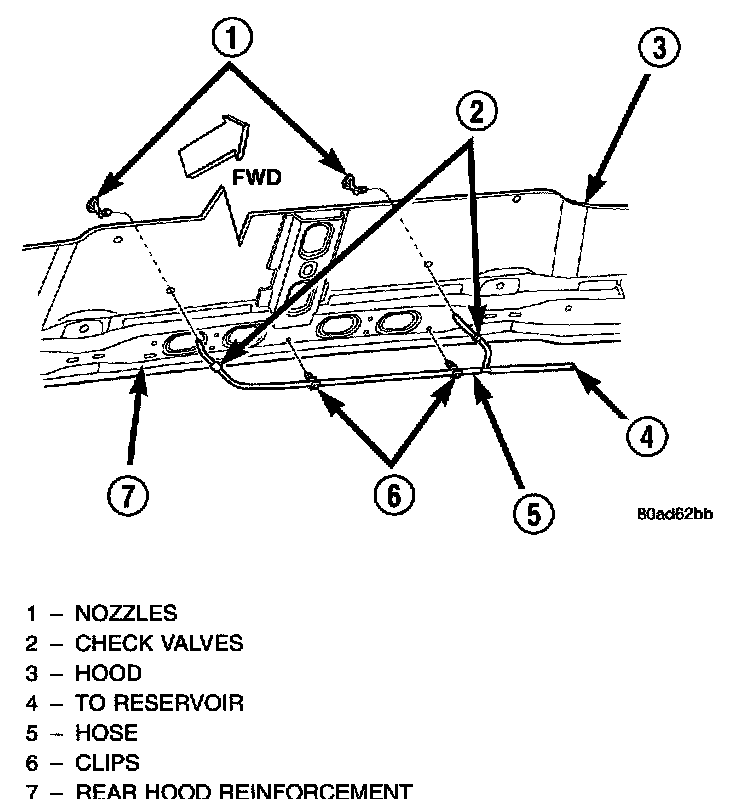

Front Washer Nozzles Remove/Install:

2. From under the rear of the hood, disconnect the washer supply hose from the barbed nipple of the washer nozzle.
3. From under the rear of the hood, gently squeeze the nozzle retainers and push the nozzle out through the top of the hood panel.

INSTALLATION

1. Reverse the removal procedures to install. See Washer Nozzles and Plumbing for the nozzle adjustment procedures.
