Rear

REMOVAL

1. Disconnect and isolate the battery negative cable.

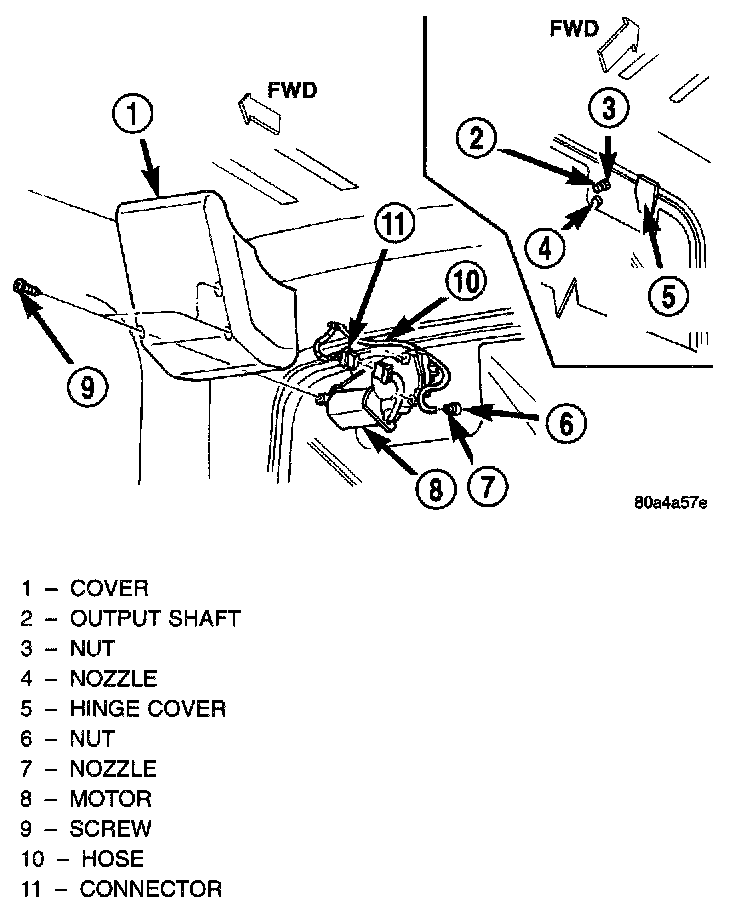

Rear Washer Nozzle Remove/Install:

2. From the inside of the lift glass, remove the three screws that secure the rear wiper motor cover to the motor.
3. Remove the rear wiper motor cover.
4. Disconnect the washer supply hose from the barbed rear washer nozzle nipple.
5. While holding the nozzle securely from the outside of the lift glass, remove the plastic nut that secures the threaded nozzle nipple from the inside of the lift glass.
6. Push the nozzle and seal out through the lift-glass from the inside.

INSTALLATION

1. Reverse the removal procedures to install.
2. Tighten the washer nozzle nut to 0.9 Nm (8 in. lbs.).
