Installation

INSTALLATION










1. Reconnect the wire harness routing clips to the lever.

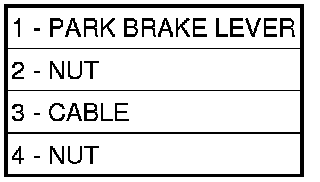

2. Reconnect the front cable (3) at the hand brake lever (1).
3. Install the 3 hand brake lever (1) mounting bolts.
4. Unlock out the park brake hand lever (1).
5. Reconnect the park brake switch wire connector.
6. Check the operation of the parking brake lever (1) and cable (3).





7. Install the center console (1) ,Floor Console - Installation.





8. Install the rear cover (2) or the DVD player (if equipped).
