Integrated Control Unit (ICU) - Disassembly
DISASSEMBLY 1.

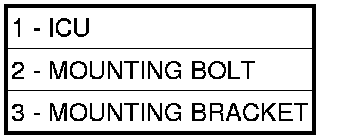

If the mounting bracket (3) needs to be removed from the ICU, remove the single mounting bolt (2), then slide the ICU's mounting pins out of the grommets in the bracket and remove the bracket.
2.
Remove the mounting pins from the ICU.
3.

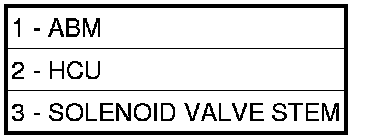

Remove the four screws (1) attaching the ABM (2) to the HCU.
4.
Separate the ABM (1) from the HCU (2).
