Flip-Up Glass Latch - Installation
INSTALLATION 1.

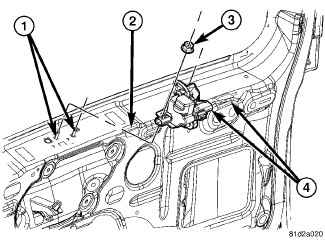

Install the latch onto the liftgate studs (1) and install the nuts (3).
2.
Tighten the nuts (3) to 13 Nm (115 in. lbs.)
3.
Connect the electrical connectors (2, 4).
4.
Adjust the glass (1), .
5.

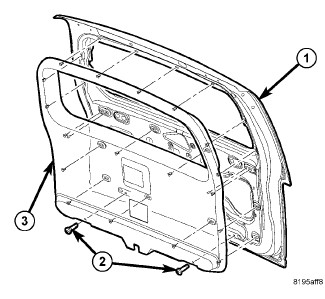

Install the liftgate trim (3),
Liftgate Trim Panel - Installation.
