Rear Door Glass Channel - Installation

INSTALLATION





1. Lubricate entire seal using rosewater (or soapy water)

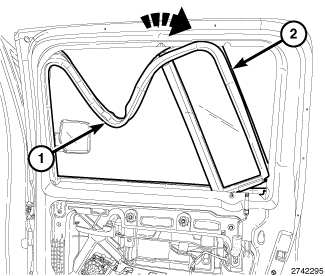

2. Partially install the run channel (1) and quarter glass (2) into the window opening in the door. Insert front end down into door at belt opening.
3. Seat the lower front part of the run channel (1) fully into the door channel.





4. Install the carrier plate to the door, Rear Door Glass - Installation.

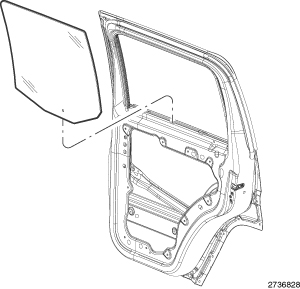

5. Install the rear door glass to the window opening in the door, Rear Door Glass - Installation.
6. Cycle the window several times to make sure the window doesn't bind on the outer weatherstrip or run channel.
