Home >> Kia >> 2006 >> Amanti V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Common Connector >> X-30 - X-39

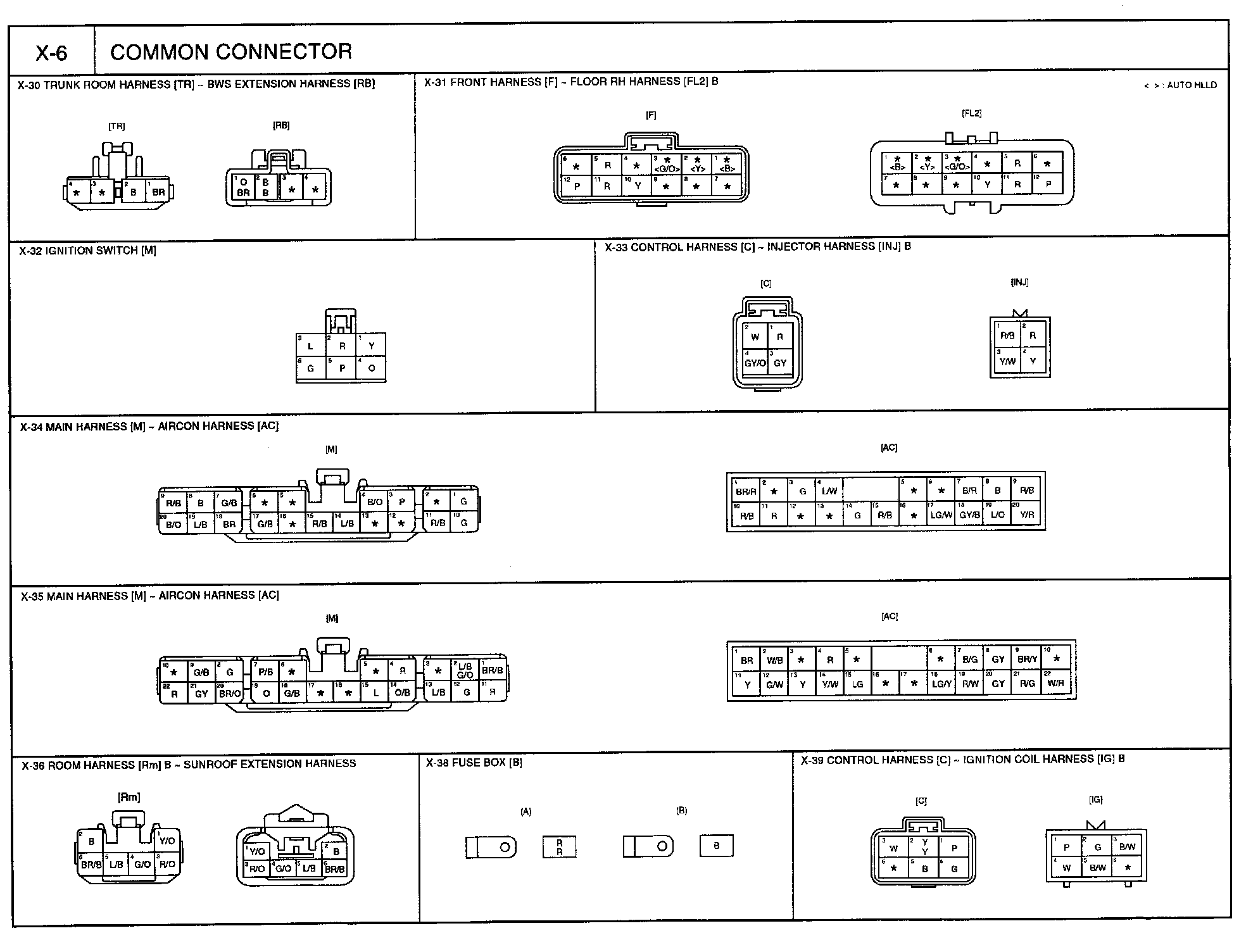

X-30 - X-39

X-30 - X-39:
