Roof and Associated Components: Service and Repair

ROOF RACK REPLACEMENT

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

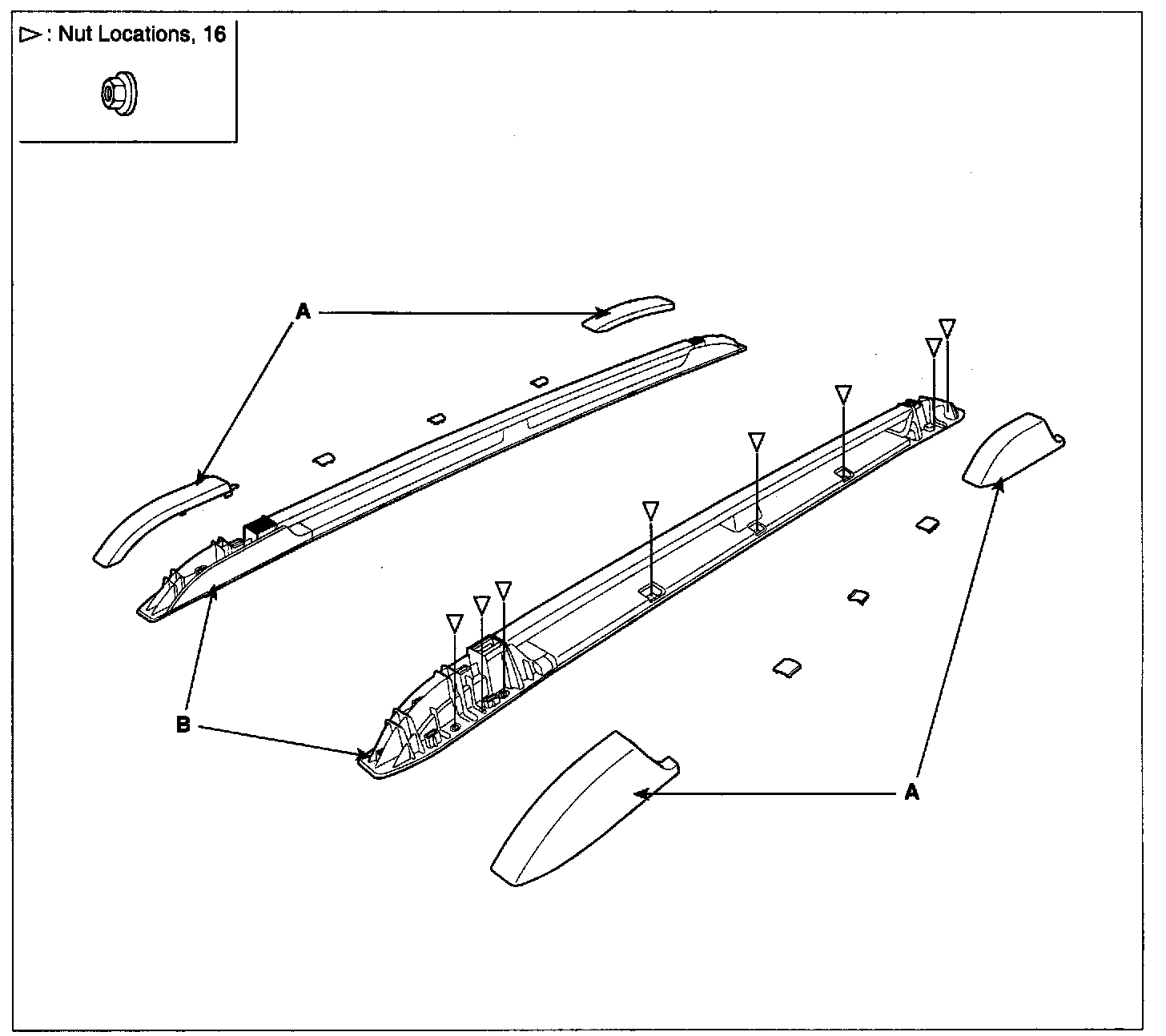

1. Remove the roof rack cover (A).
2. Remove the roof rack (B), by removing nut protector covers, and removing the nuts.
3. Installation is the reverse of removal.
