Parking Assist Control Module: Testing and Inspection

DIAGNOSIS




1. DIAGNOSIS

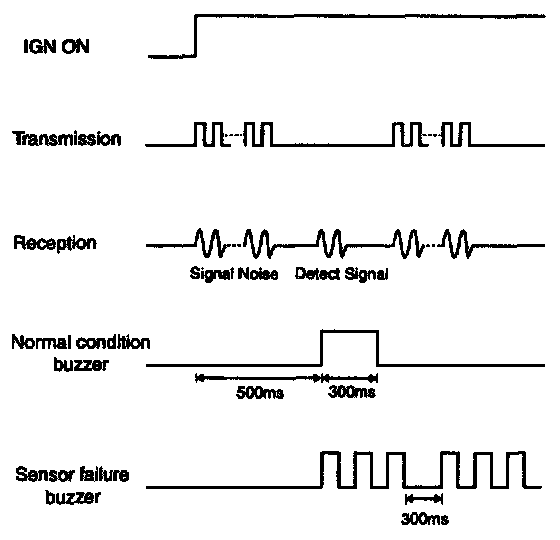

Turn the ignition switch ON, then shift the transaxle lever to 'R'. The Back Warning System is then checked.
If no trouble, it generates buzzer alarm sound for 0.3 seconds after 0.5 seconds from power approval. In case of system failure, buzzer alarm is generated 3 times continuously with the interval of 0.3 seconds.







2. DIAGNOSIS MODE

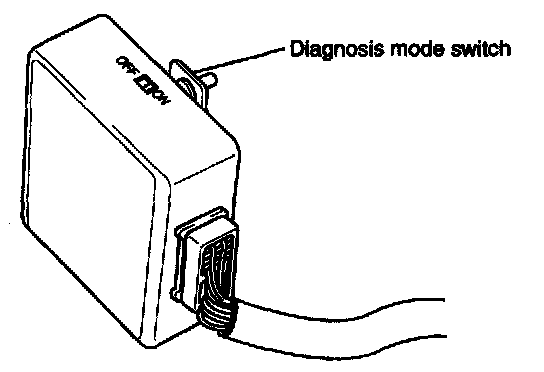

Switch on diagnosis mode upon system failure. In case of system failure, then it indicates the failed point as shown.
