Problem Symptoms Table

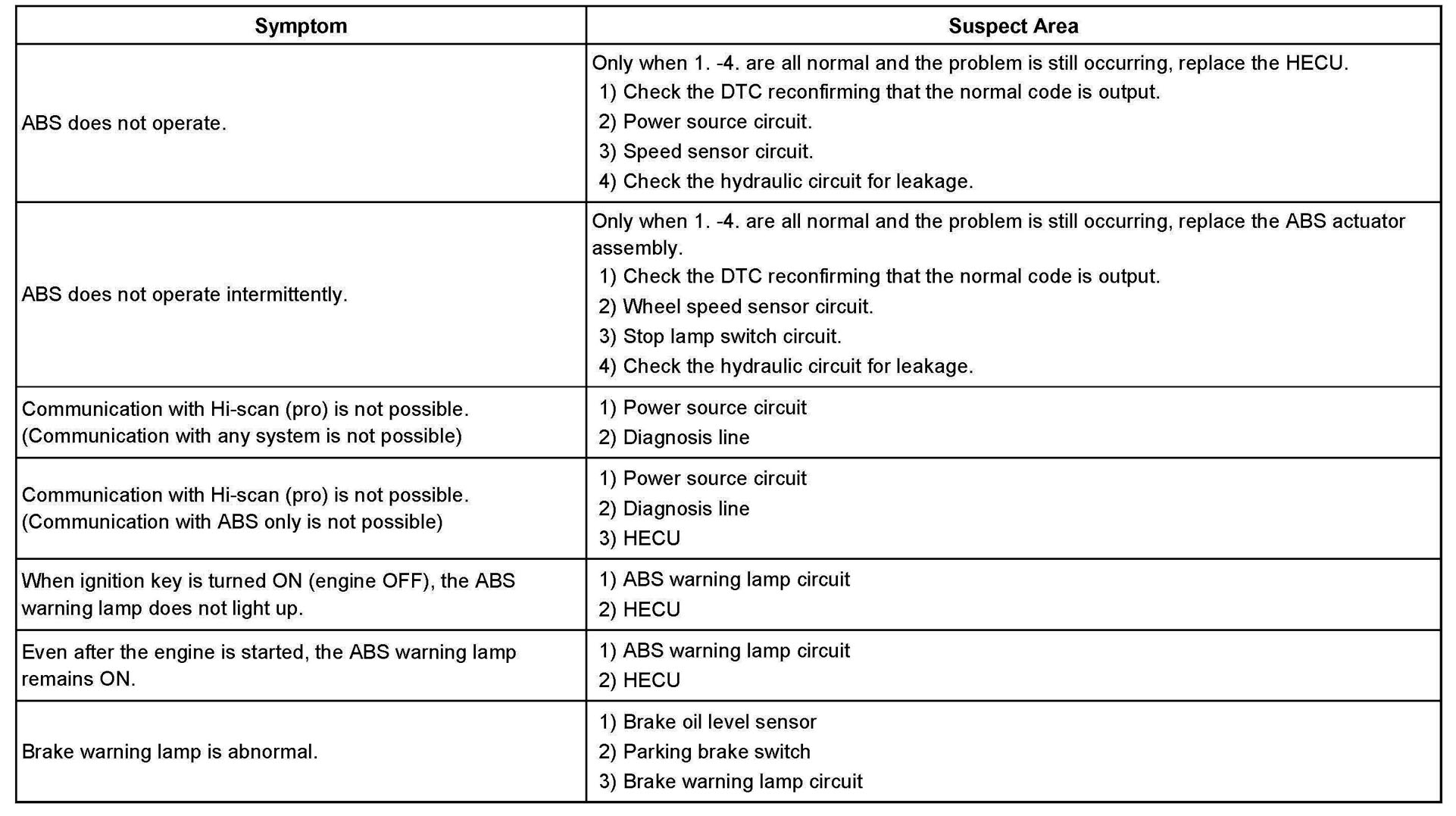

PROBLEM SYMPTOMS TABLEIf a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.
CAUTION: During ABS operation, the brake pedal may vibrate or may not be able to be depressed. Such phenomena are due to intermittent changes in hydraulic pressure inside the brake line to prevent the wheels from locking and is not an abnormality.
ABS Does Not Operate ABS Does Not Operate
ABS Does Not Operate Intermittently ABS Does Not Operate Intermittently
Communication With Hi-Scan (Pro) Is Not Possible (Communication With Any System Is Not Possible) Communication With Hi-Scan (Pro) Is Not Possible (Communication With Any System Is Not Possible)
Communication With Hi-Scan (Pro) Is Not Possible (Communication With ABS Only Is Not Possible) Communication With Hi-Scan (Pro) Is Not Possible (Communication With ABS Only Is Not Possible)
When Ignition Key Is Turned On (Engine Off), the ABS Warning Lamp Does Not Light Up When Ignition Key Is Turned On (Engine Off), the ABS Warning Lamp Does Not Light Up
Even After the Engine Is Started, the ABS Warning Lamp Remains on Even After the Engine Is Started, the ABS Warning Lamp Remains on
Brake Warning Lamp Is Abnormal Brake Warning Lamp Is Abnormal
