Wheels: Testing and Inspection
WHEEL RUNOUT 1.
Jack up the vehicle and support it with jack stands.
2.

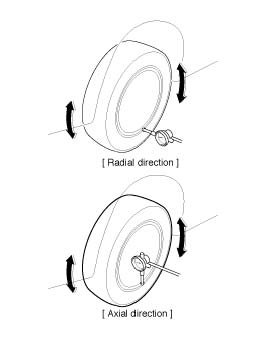

Measure the wheel runout with a dial indicator as illustrated.
3.
Replace the wheel if the wheel runout exceeds the limit.
Wheel runout [Limit] Steel wheel Radial :
0.6 mm (0.02 in.) (Average of LH & RH) Axial :
1.0 mm (0.04 in.) Aluminum wheel Radial :
0.3 mm (0.012 in.) Axial :
0.3 mm (0.012 in.)
