Disassembly

DISASSEMBLY

NOTE:
Identify MLA(Mechanical Lash Adjuster), valves and valve springs as they are removed so that each item can be reinstalled in its original position.

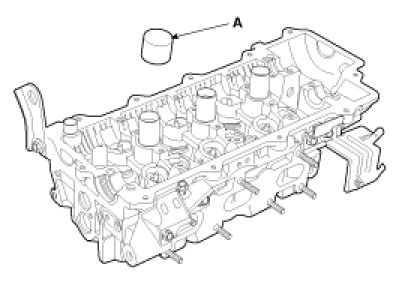

1. Remove MLA(Mechanical Lash Adjuster)s(A).




2. Remove valves.

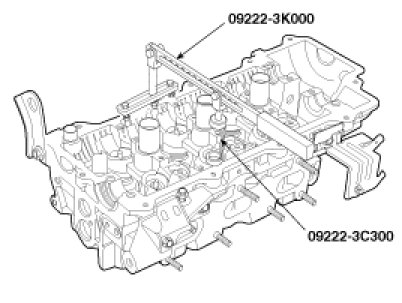

(1) Using SST(09222-3K000, 09222-3C300), compress the valve spring and remove retainer lock.




(2) Remove the spring retainer.
(3) Remove the valve spring.
(4) Remove the valve.

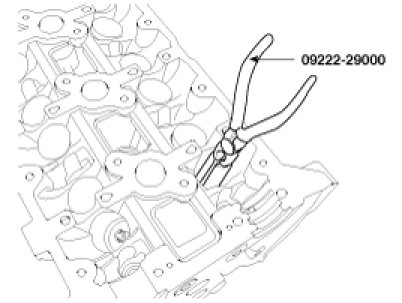

(5) Using SST(09222-29000), remove the valve stem seal.





NOTE:
Do not reuse the removed valve stem seals.

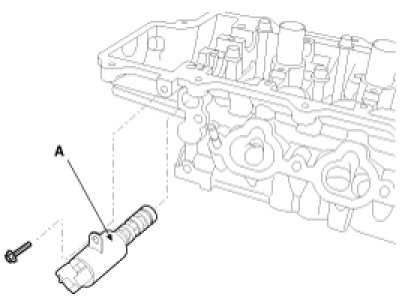

3. Remove OCV(Oil Control Valve)(A).
