Repair Procedures

REMOVAL

1. Remove the rear wheel & tire.

CAUTION:
Be careful not to damage the hub bolts when removing the wheel & tire.

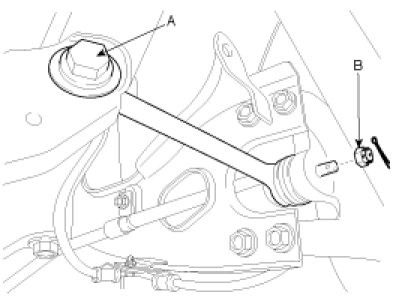

2. Remove the cam bolt (A), split pin, and castle nut (B).

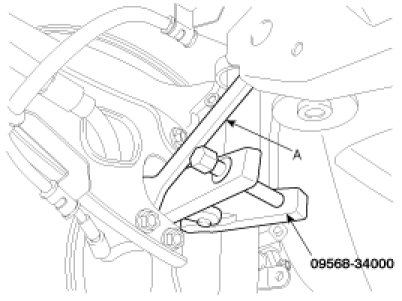

3. Disconnect the ball joint of the rear assist arm (A) with the carrier assembly with the SST (09568-34000).






INSTALLATION

1. Install the rear assist and the cam bolt (A) and then tighten the nut.

Tightening torque Nm (kgf.m, lb-ft):
80 - 100 (8.0 - 10.0, 58 - 72)

2. Install the castle nut (B) and split pin to the rear assist arm ball joint.

Tightening torque Nm (kgf.m, lb-ft):
45 - 55 (4.5 - 5.5, 33 - 40)




3. Install the rear wheel & tire.

Tightening torque Nm (kgf.m, lb-ft):
90 - 110 (9.0 - 11.0, 65 - 80)

CAUTION:
Be careful to damage the hub bolts when installing the wheel & tire.
