Headlamp: Service and Repair





REMOVAL

1. Disconnect the negative (-) battery terminal.

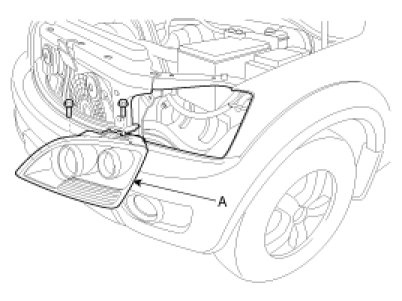

2. Loosen the mounting bolts (3EA). And remove the head lamp assembly (A) after disconnecting the lamp connectors.





NOTE:

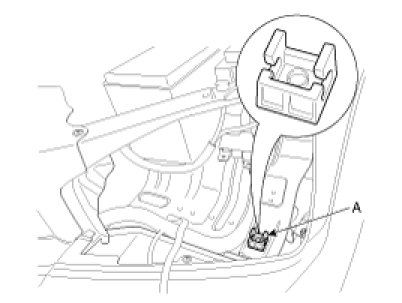

Take care that retaining clip (A) is not to be damaged.

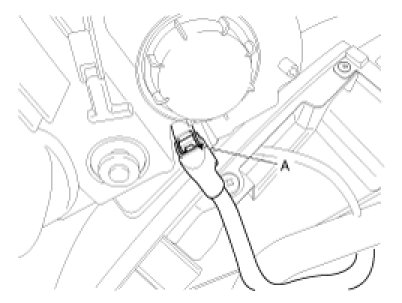

3. Remove the power connector (A) of lamp assembly.

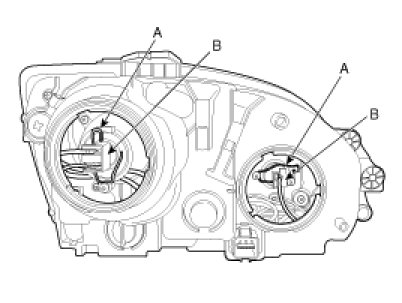

4. Remove the fixing spring (A) and bulb connector (B) after loosening the cover.

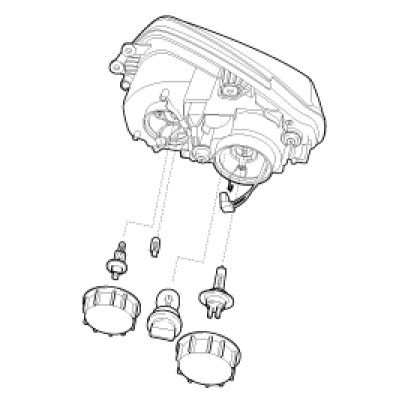

5. Remove the head lamp bulb.






INSTALLATION

1. Reassemble the head lamp bulb.
2. Connect the bulb connector and fixing spring.
3. Connect the power connector to the lamp assembly
4. Reassemble the head lamp assembly to retaining clip.
