Vacuum Control Unit
Vacuum Control UnitRemove 1.

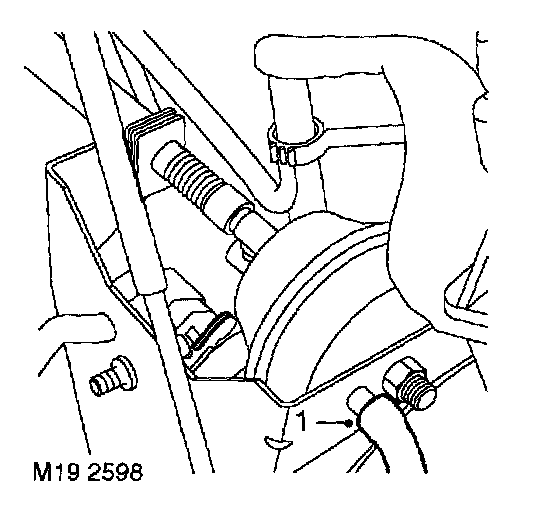

Disconnect vacuum hose from actuator.
2.

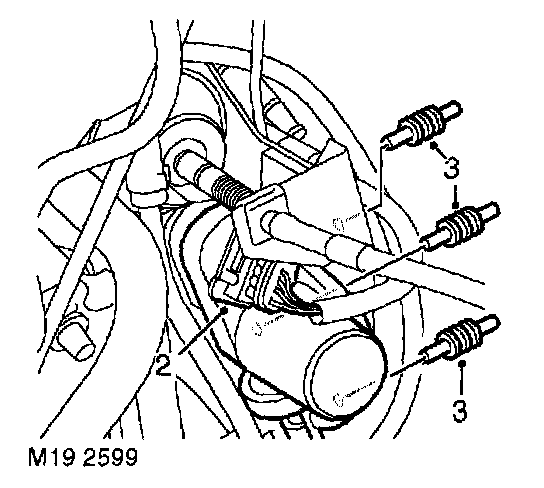

Disconnect multiplug from vacuum control unit
3.
Release 3 rubber mountings securing
control unit, and remove from mounting bracket.
4.
Remove vacuum hose from
control unit.
Refit 1.
Position vacuum hose to
control unit.
2.
Position
control unit and secure mountings.
3.
Connect multiplug and vacuum hose.
