Cruise Control Servo Cable: Adjustments

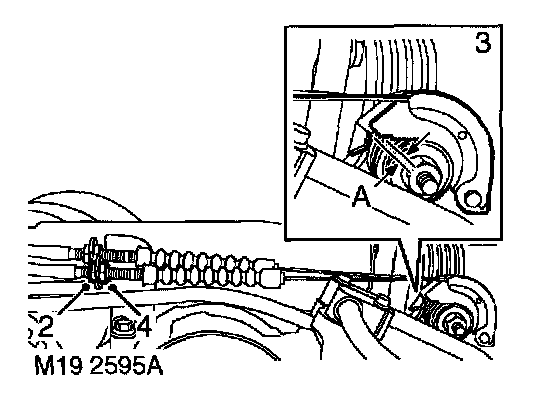

Cruise Control Cable - Adjust 1.
Ensure that the throttle cable is correctly adjusted.
2.
Loosen outer cable locknuts.
3.
Adjust the rear locknut to obtain a
0.5 to 1.5 mm (0.019 to 0.060 in) gap,
dimension 'A', between the cruise control cable lever and the throttle cable driven lever.
4.
Tighten cable front locknut.
