Cruise Control Servo Cable: Service and Repair



Cable - Cruise Control

Remove







1. Release clip and disconnect inner cable from actuator.
2. Release outer cable from actuator mounting bracket.

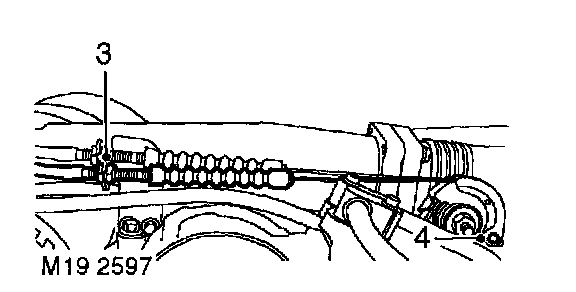

3. Loosen cable locknuts, release outer cable from abutment bracket and retaining clip.
4. Release inner cable from operating lever and remove cable.

Refit
1. Position cable and connect to operating lever.
2. Position cable to abutment bracket.
3. Position outer cable to actuator mounting bracket and connect inner cable to actuator.
4. Adjust cruise control cable.
