Cruise Control Servo: Service and Repair

Actuator - Cruise Control

Remove

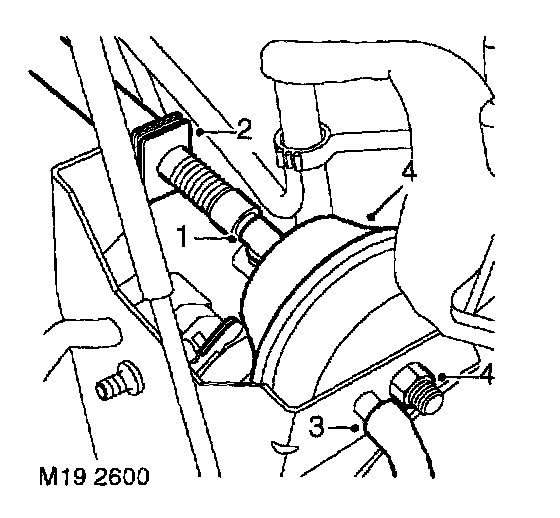

1. Release clip and disconnect inner cable from actuator.
2. Release outer cable from actuator mounting bracket.
3. Release vacuum hose from actuator.
4. Remove nut, and remove actuator from mounting bracket.

Refit
1. Position actuator and tighten retaining nut.
2. Connect vacuum hose to actuator.
3. Connect outer cable to mounting bracket.
4. Connect inner cable to actuator.
