Switch - Cruise Control (Set/Resume)




Switch - Cruise Control (Set/Resume)

Remove
1. Remove the key from the starter switch. Disconnect both battery leads, negative lead first. Wait ten minutes before starting work.
2. Remove driver's airbag module.

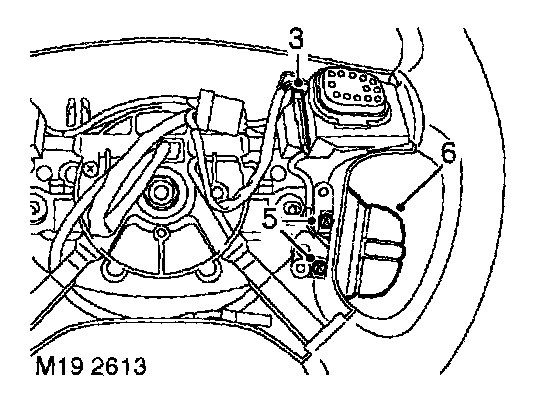

3. Release remote control switches multiplug and leads from steering wheel base.
4. Disconnect remote control switches multiplug from harness.
5. Remove 2 screws securing remote control switches to steering wheel base.
6. Release and remove remote control switches from steering wheel.

Refit
1. Fit remote control switches to steering wheel and secure with screws.
2. Connect remote control switches multiplug to harness.
3. Secure leads and multiplug to base of steering wheel.
4. Fit driver's airbag module.
