System Diagnosis

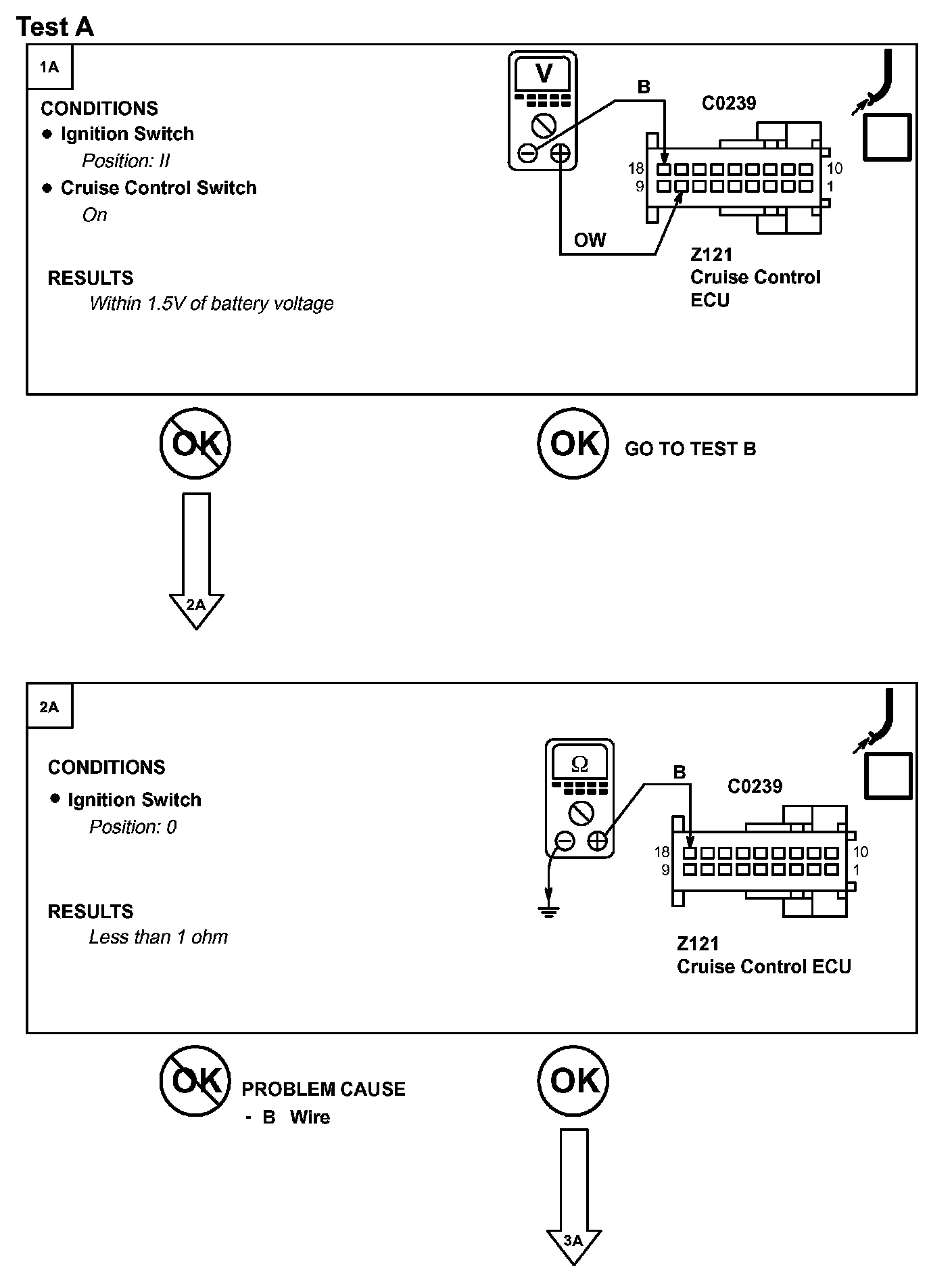

CRUISE CONTROLSYSTEM DIAGNOSIS1A To 2A:

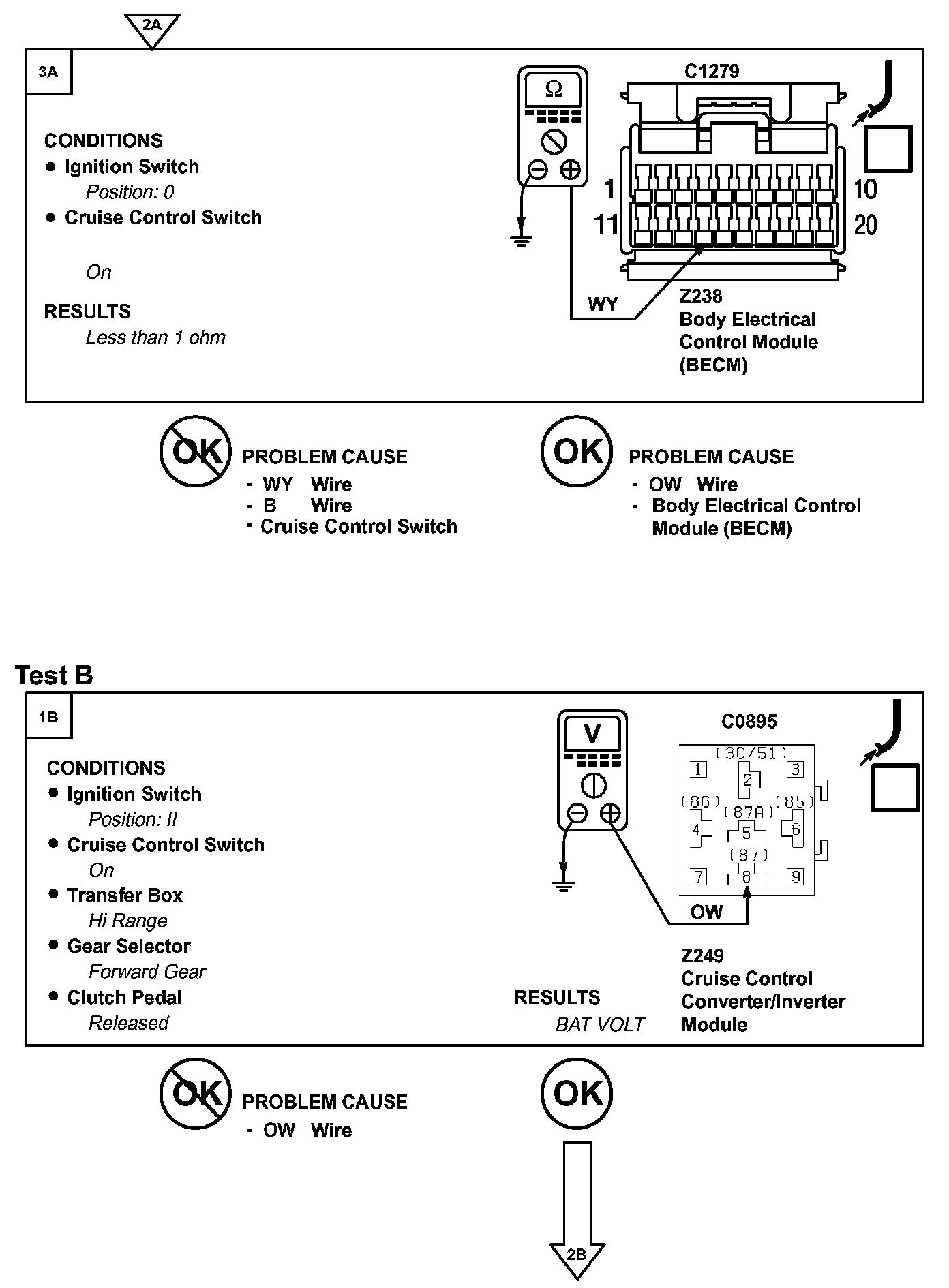

3A To 1B:

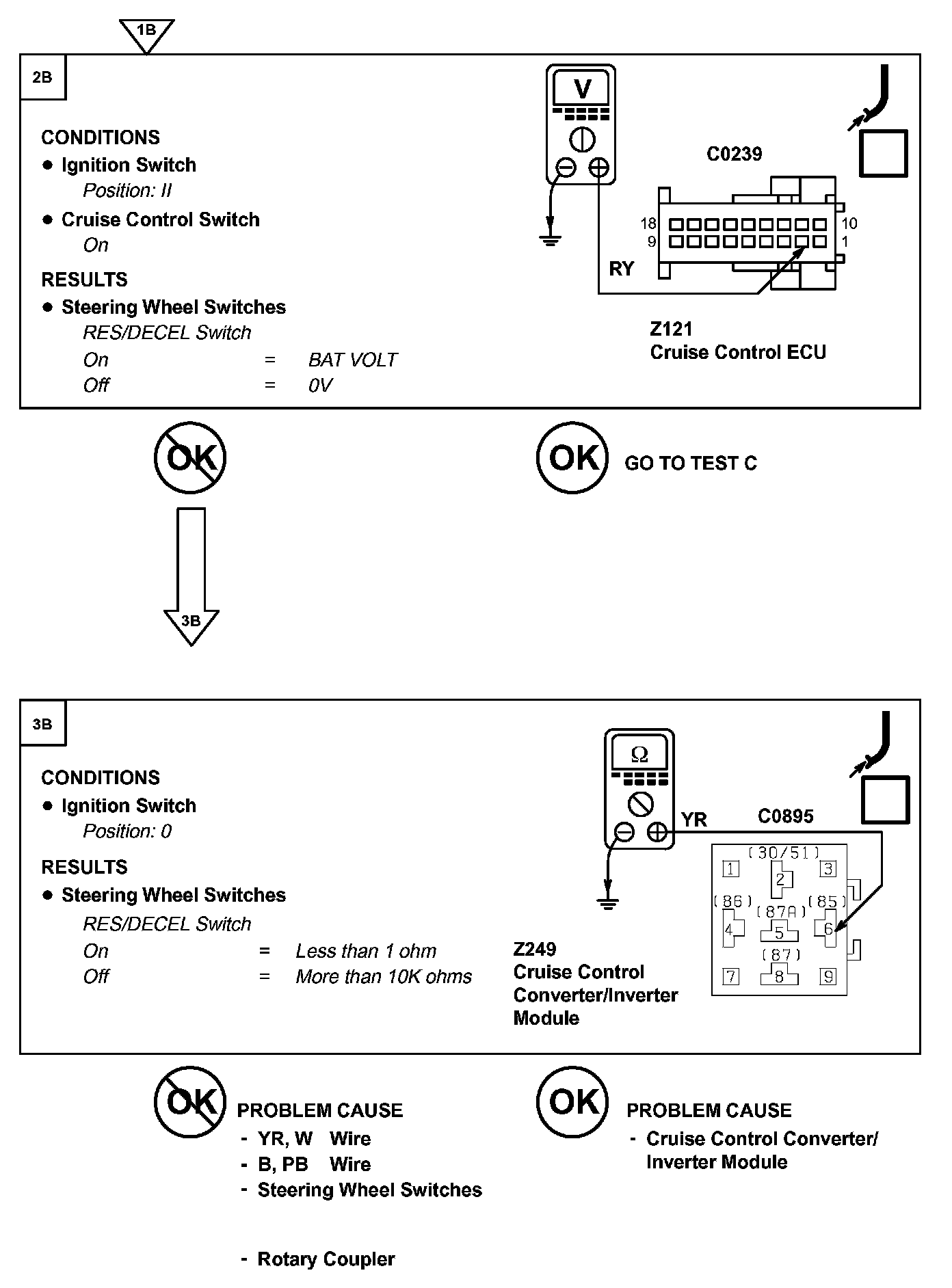

2B To 3B:

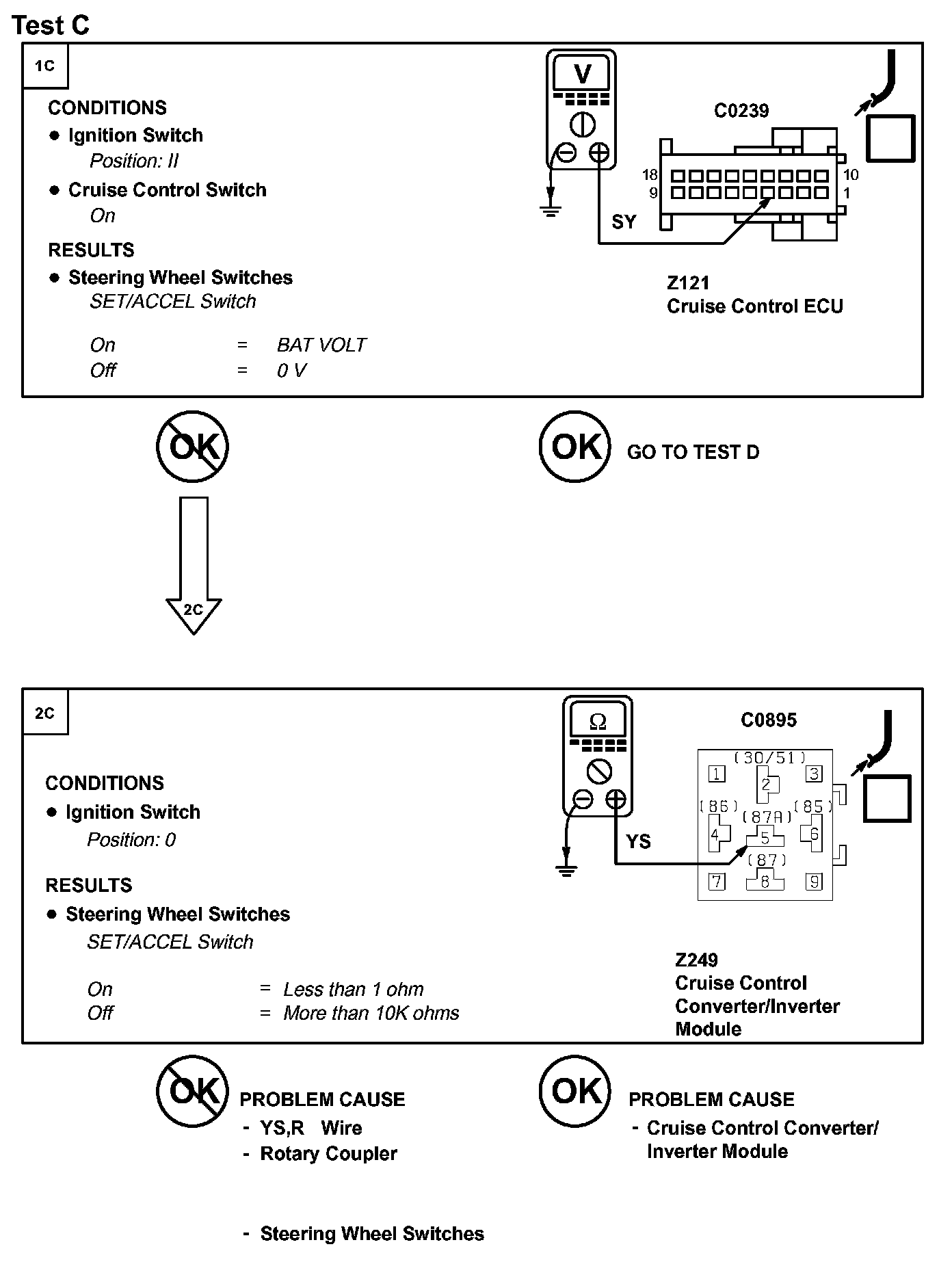

1C To 2C:

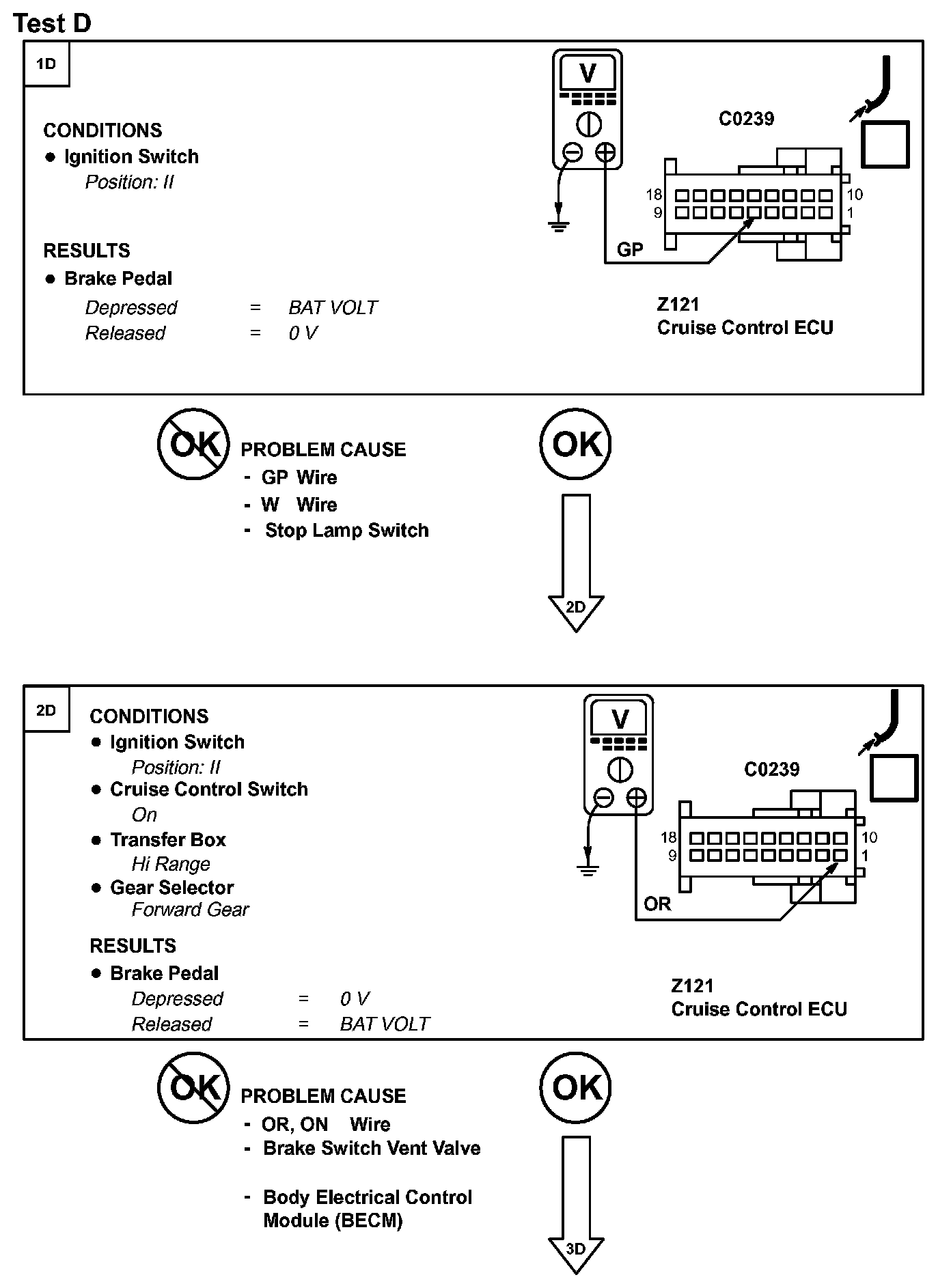

1D To 2D:

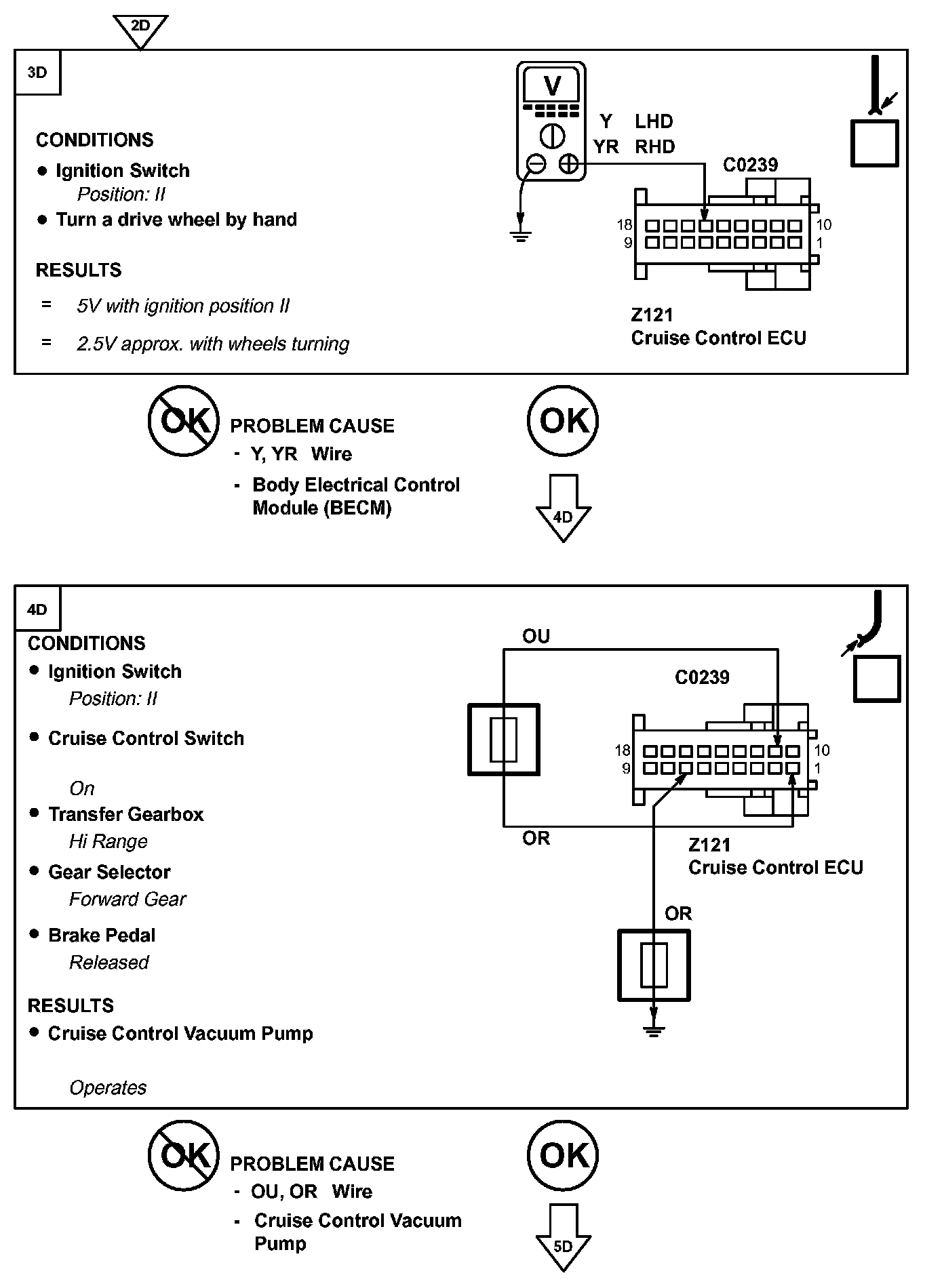

3D To 4D:

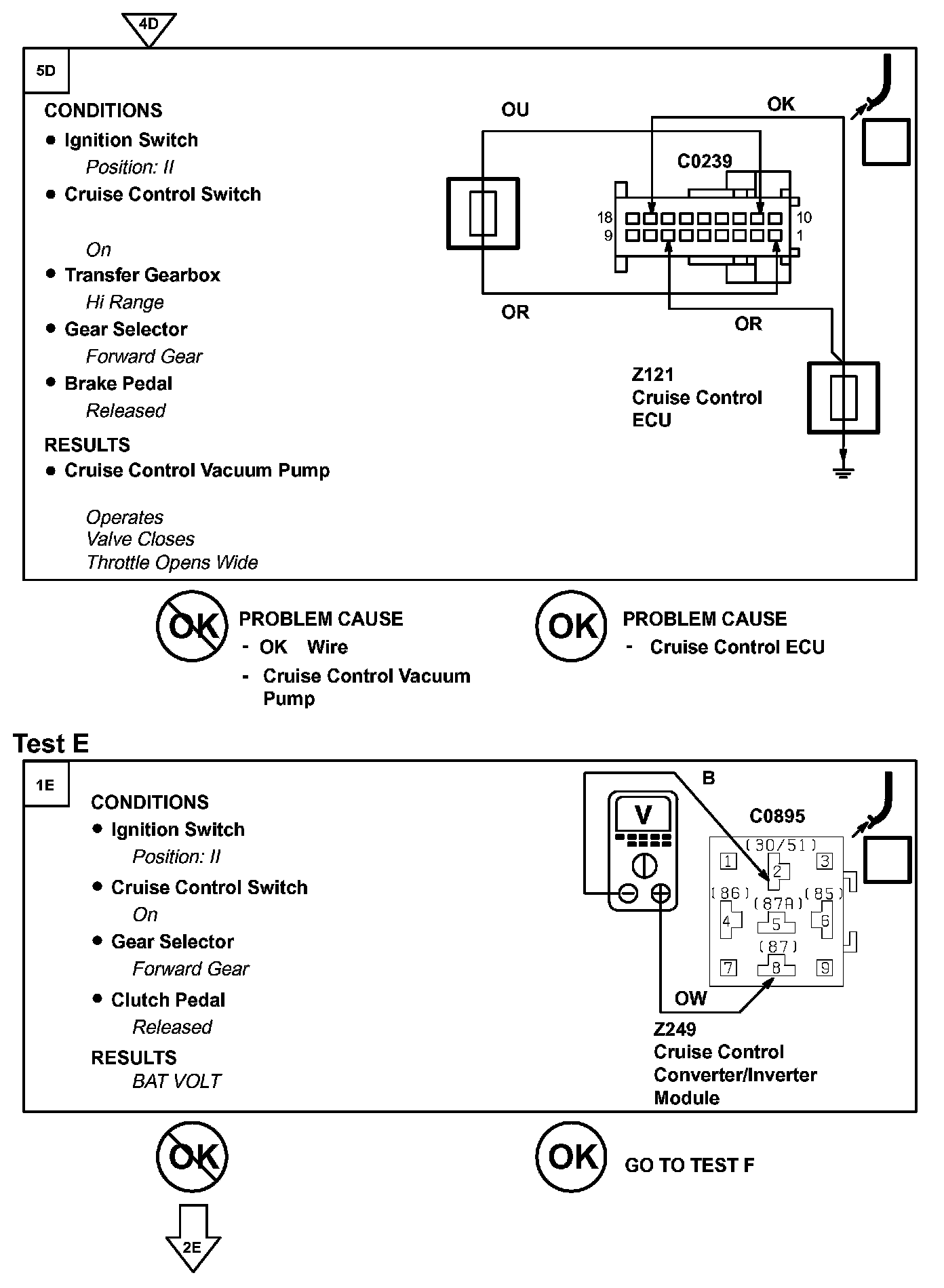

5D To 1E:

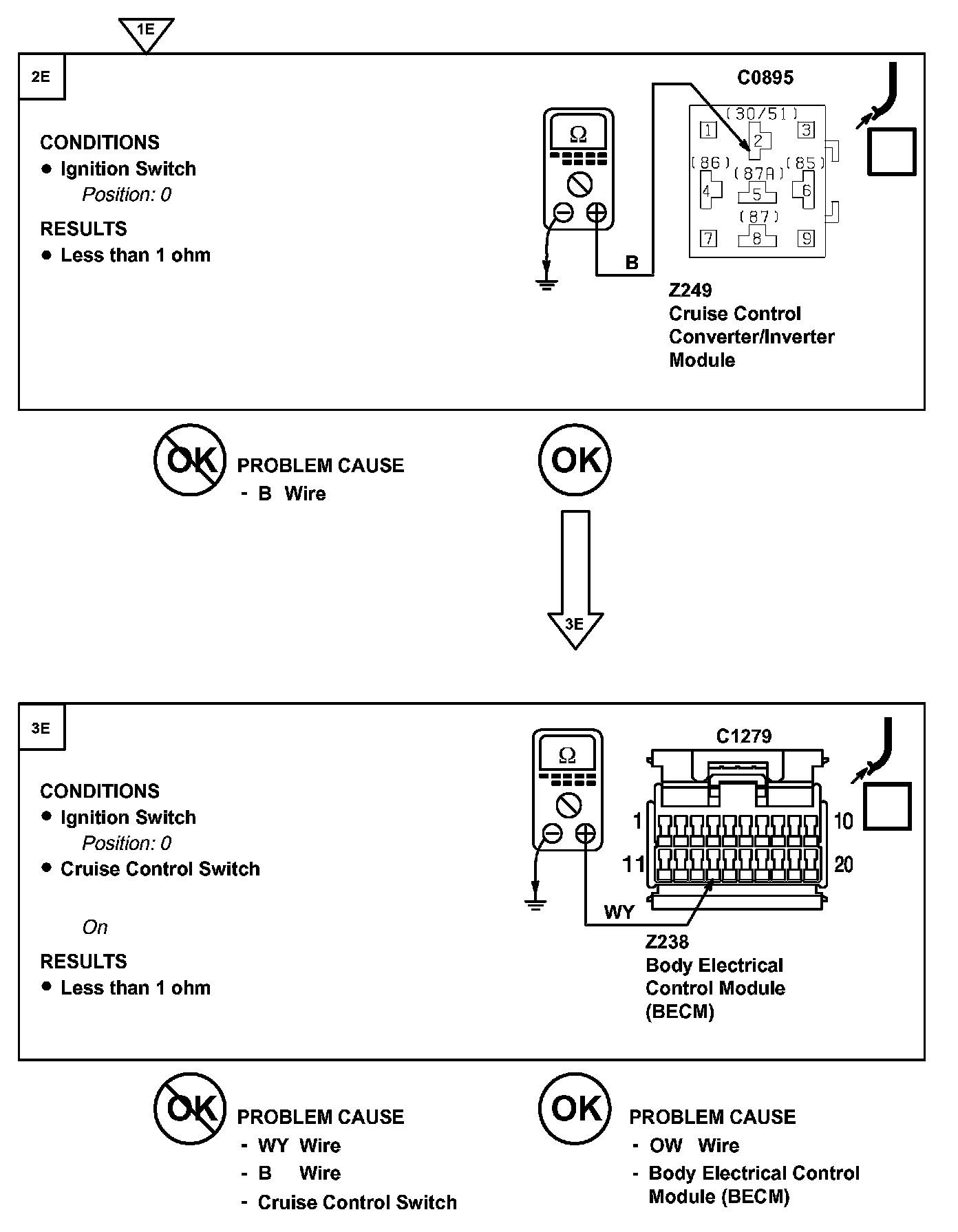

2E To 3E:

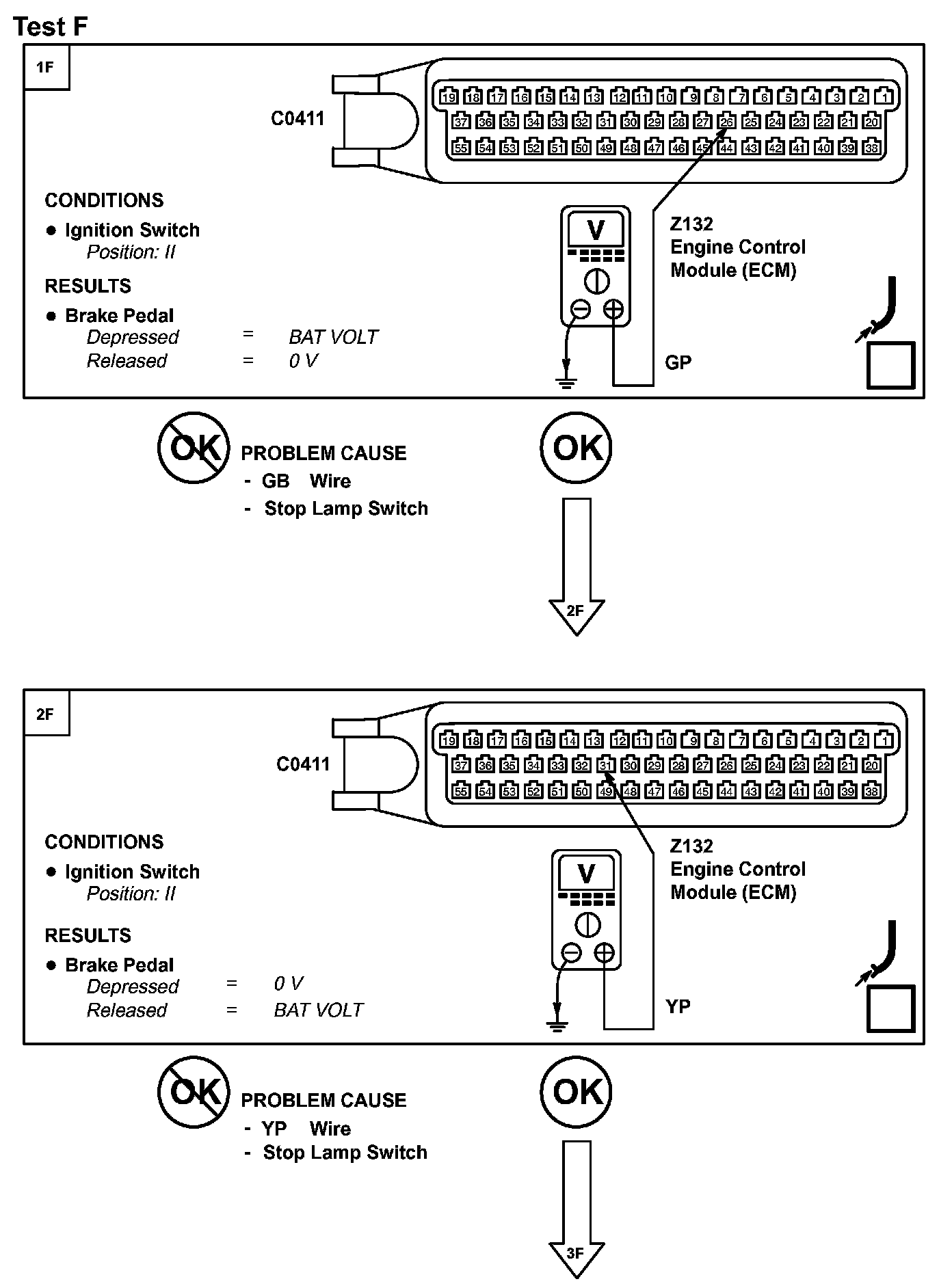

1F To 2F:

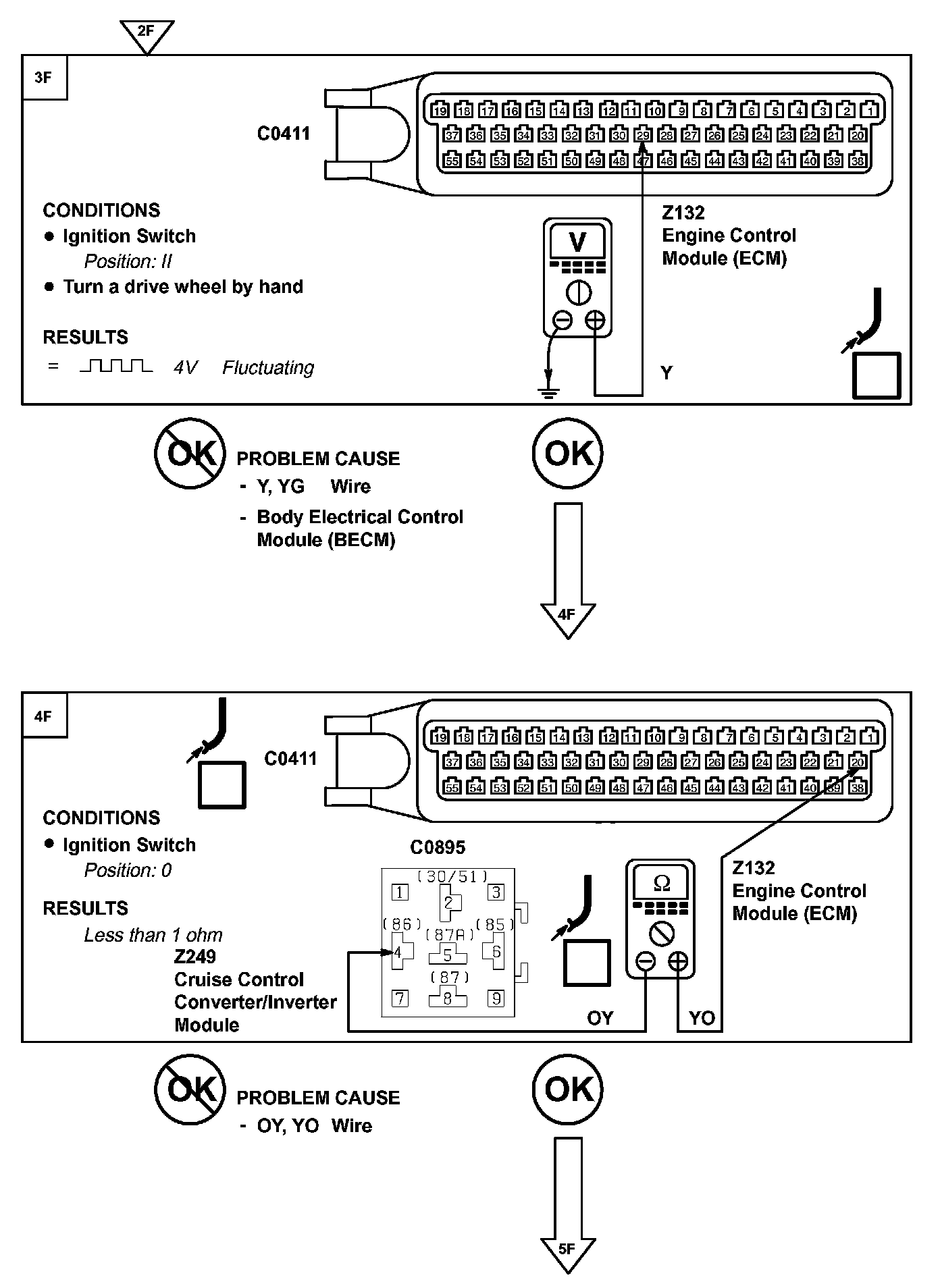

3F To 4F:

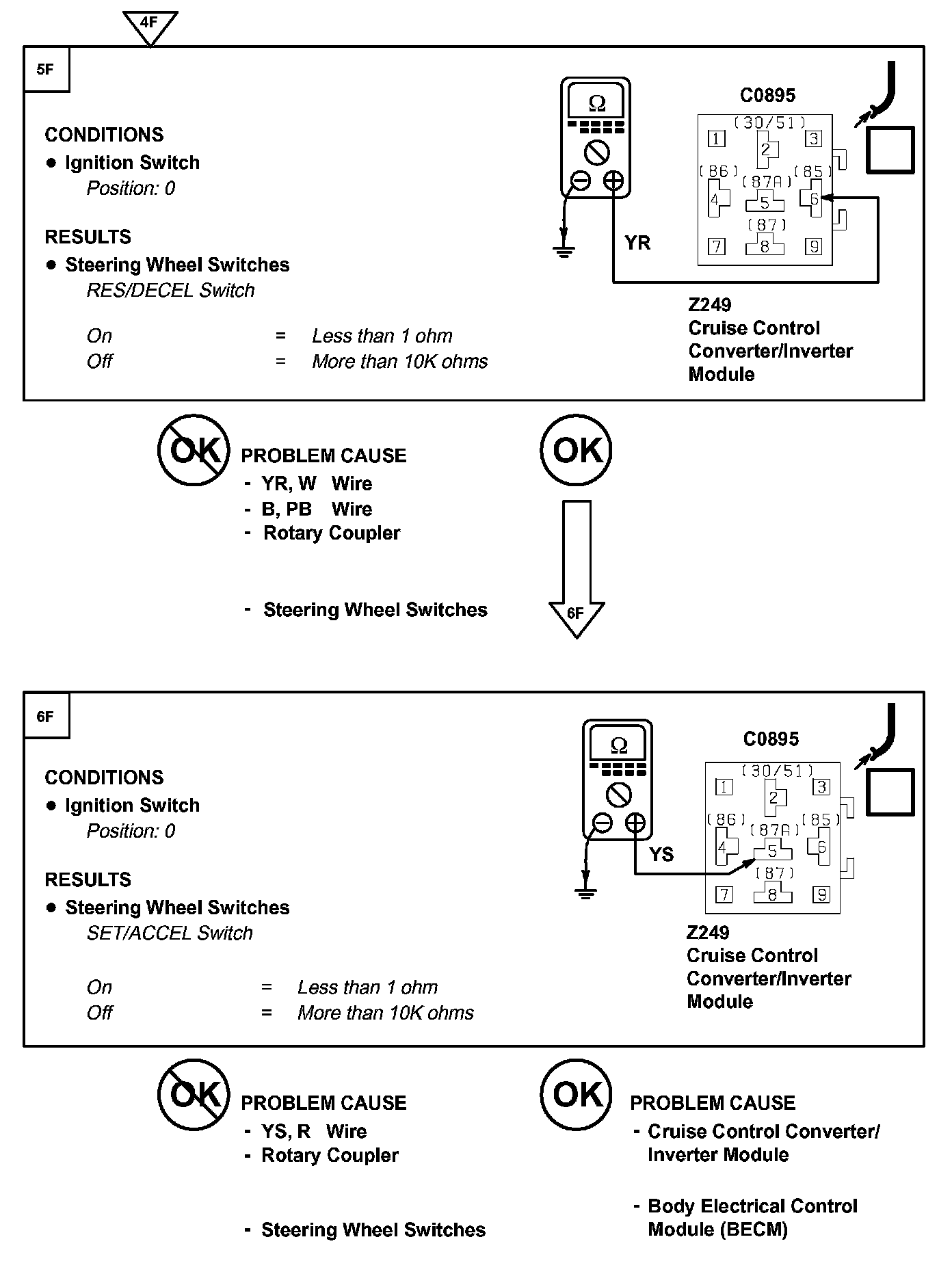

5F To 6F:
1.
If the
cruise control system does not operate correctly and the vehicle is equipped with a Petrol Engine, do Test A.
2.
If the
cruise control system does not operate correctly and the vehicle is equipped with a Diesel Engine, do Test E.
