Memory Seats

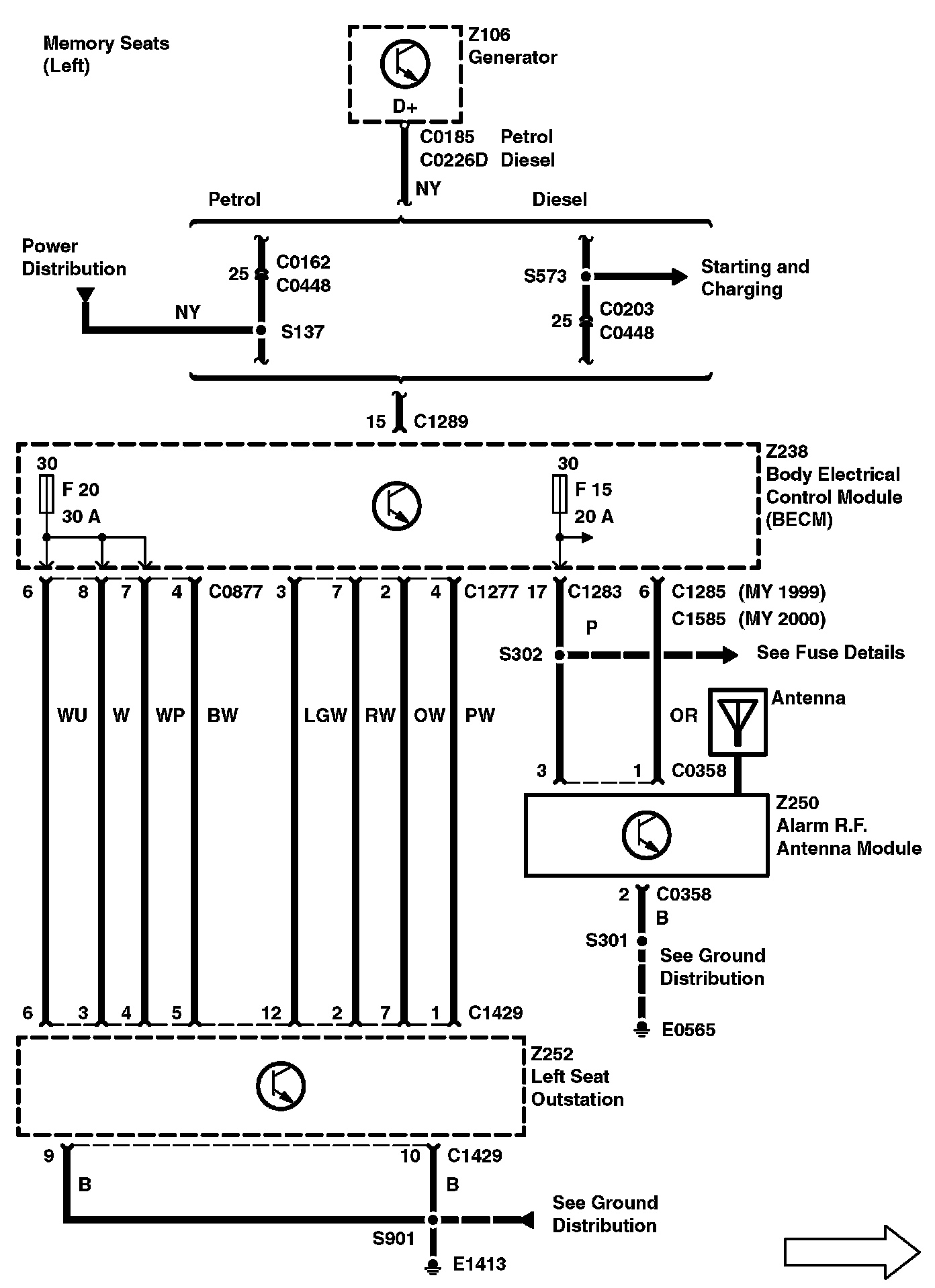

Memory Seats (Left) (Sheet 1):

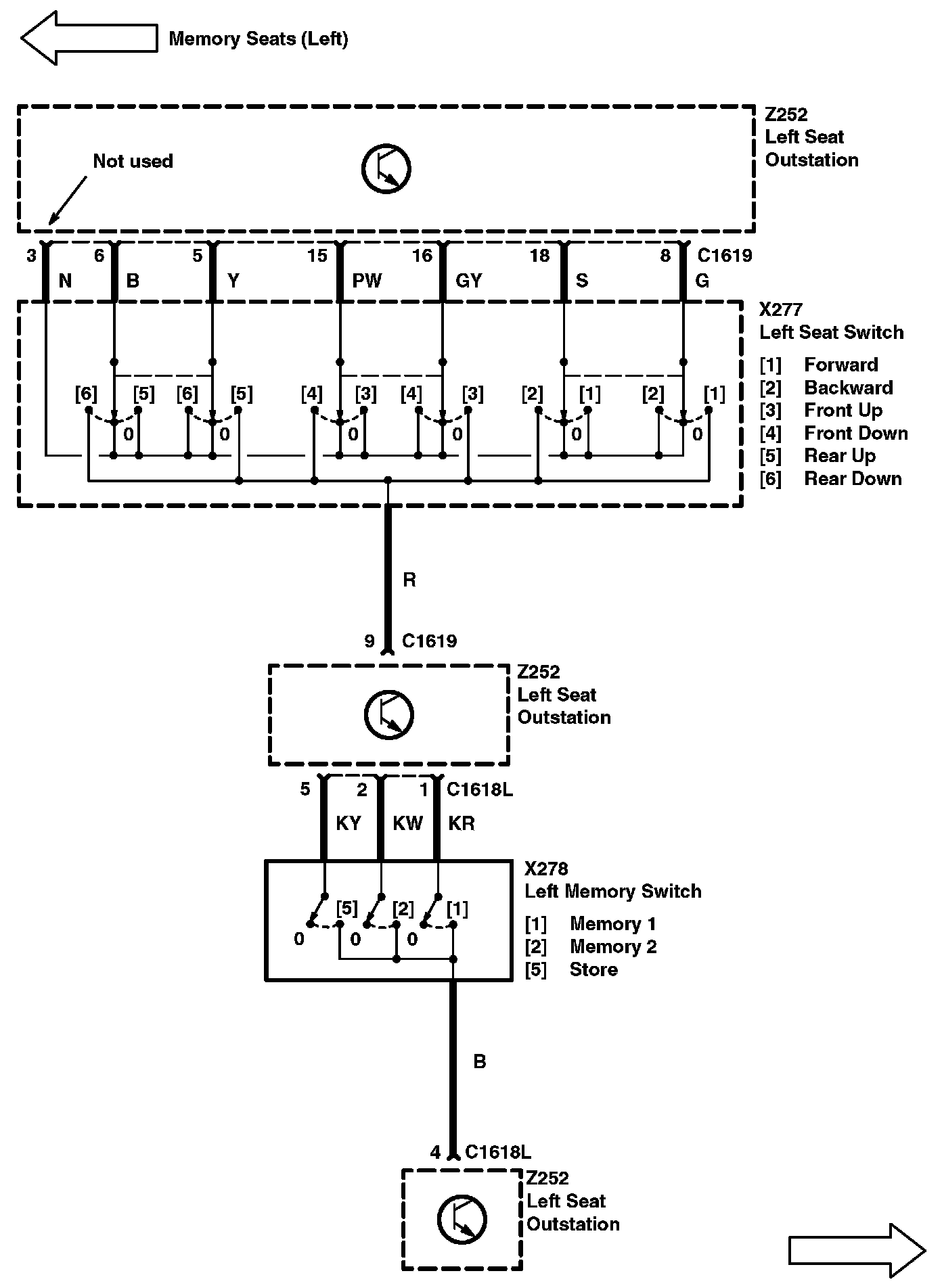

Memory Seats (Left) (Sheet 2):

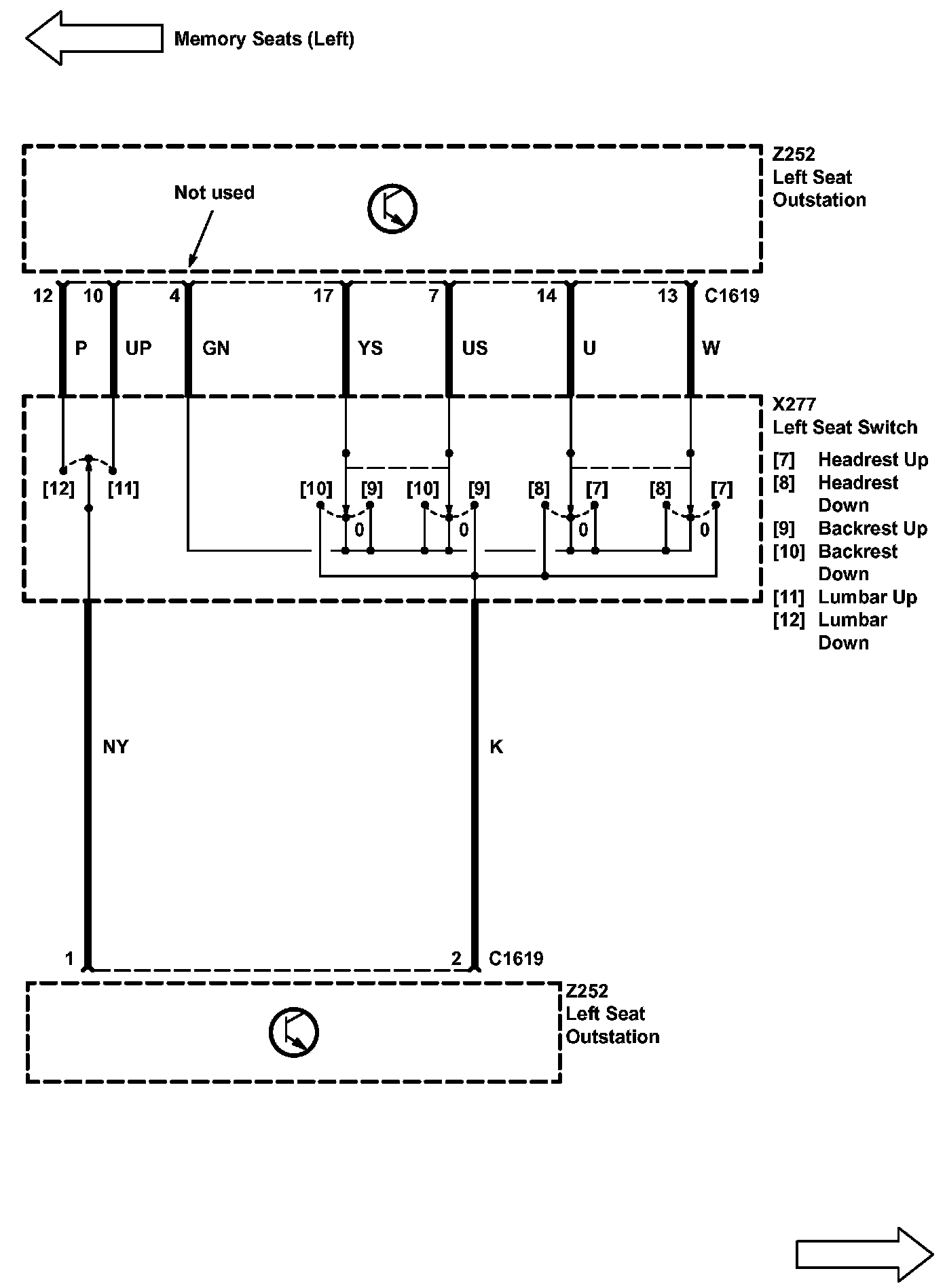

Memory Seats (Left) (Sheet 3):
Memory Seats (Left) (Sheet 4):
Memory Seats (Left) (Sheet 5):
Memory Seats (Left) (Sheet 6):

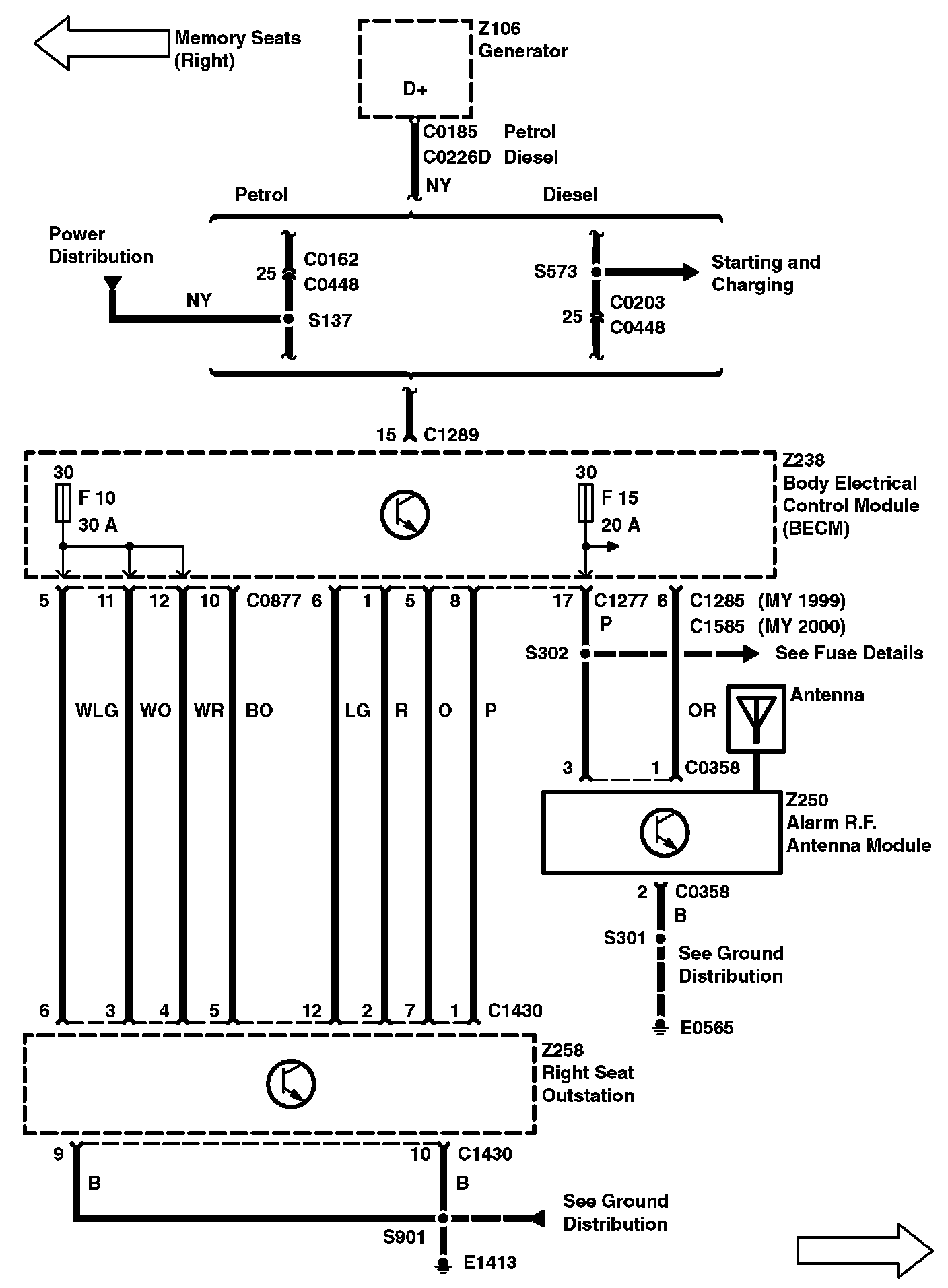

Memory Seats (Right) (Sheet 7):

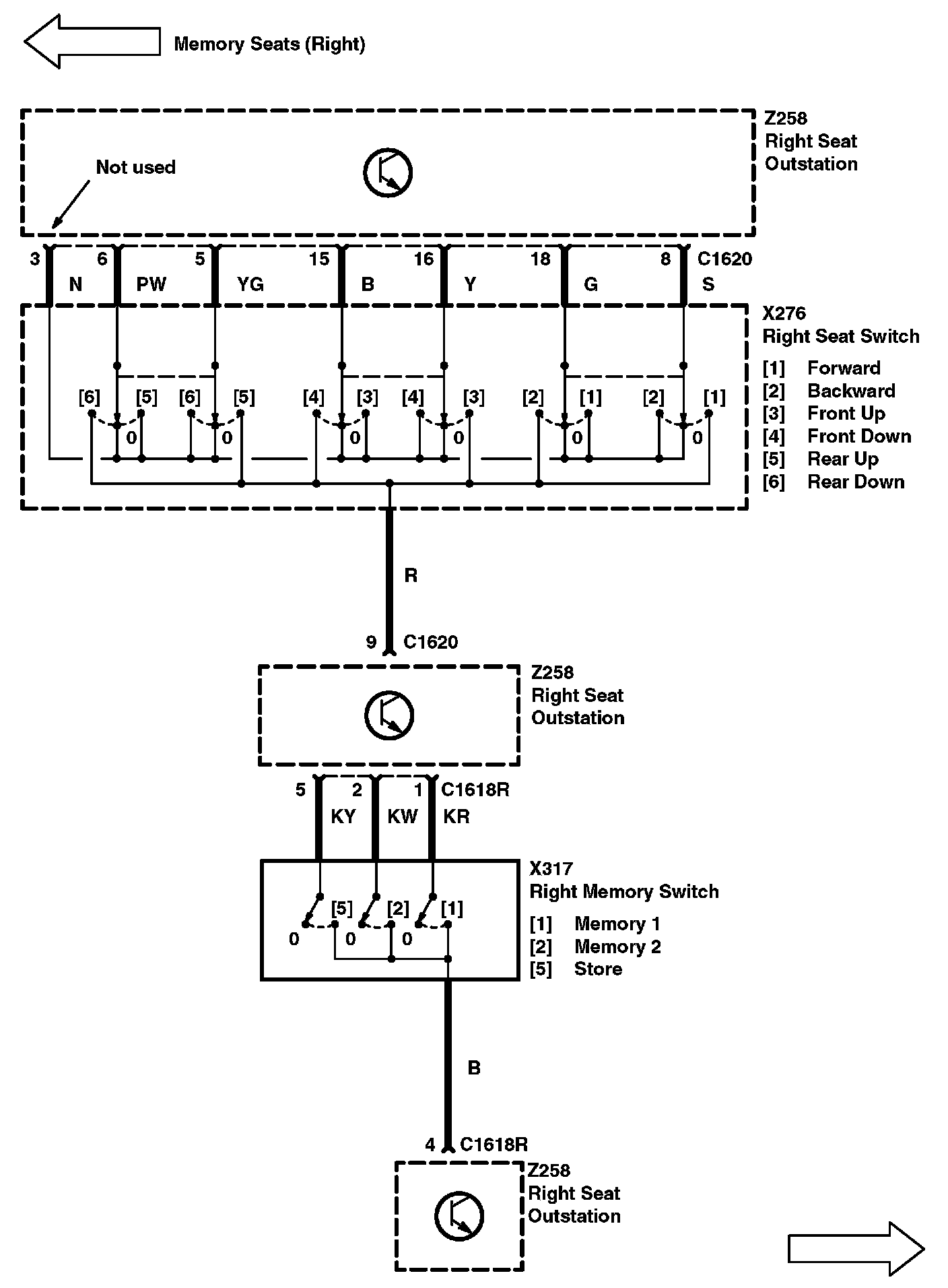

Memory Seats (Right) (Sheet 8):

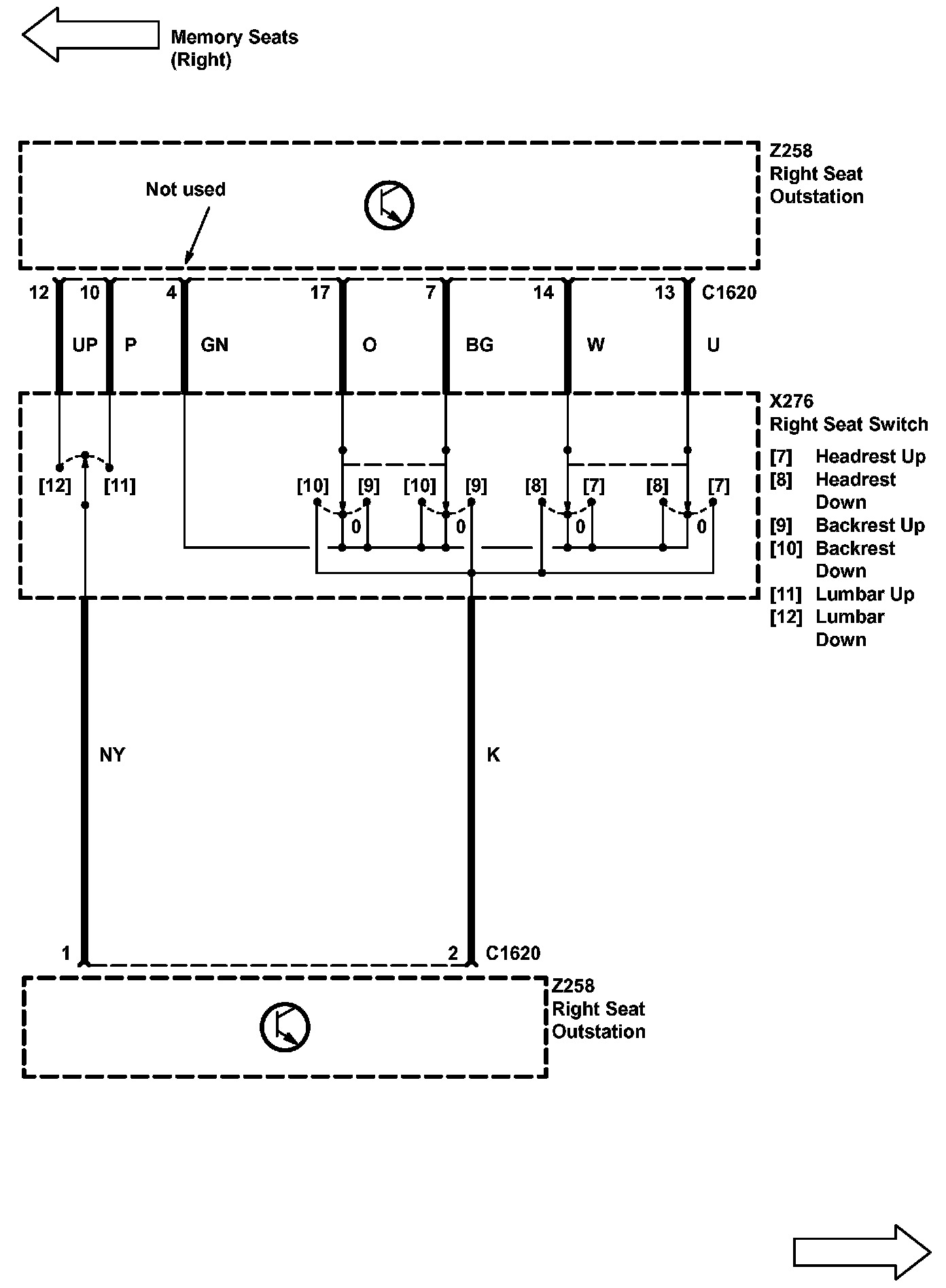

Memory Seats (Right) (Sheet 9):
Memory Seats (Right) (Sheet 10):
Memory Seats (Right) (Sheet 11):
Memory Seats (Right) (Sheet 12):
Memory Seats (Sheet 13):
Connector Locations: The location views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors/Master Location Index. Master Location Index
Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
