Radiator: Service and Repair



RADIATOR
Service repair no - 26.40.04

Remove
1. Disconnect battery negative lead.
2. Raise the vehicle.

WARNING: Support on safety stands.

3. Drain cooling system.

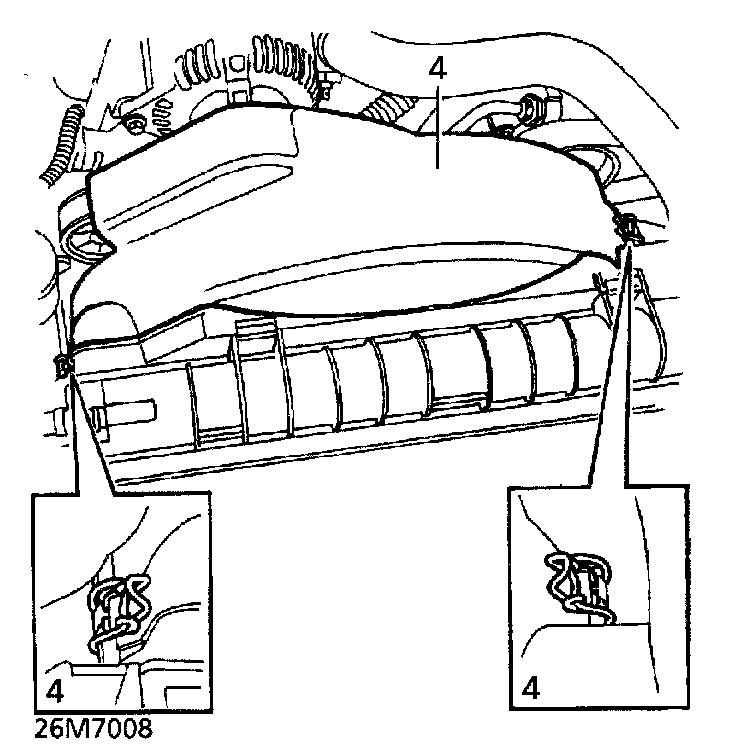

4. Release clips securing upper cooling fan cowl. Remove cowl.





5. Release top hose from radiator.
6. Release expansion tank hose from radiator.
7. Remove clips securing radiator to cooling fan cowl.





8. Slacken bottom hose clips at radiator and thermostat housing.
9. Release thermostat housing from fan cowl. Remove bottom hose.





10. Remove 2 bolts securing radiator to mounting bracket.
11. Release radiator from upper and lower mountings.
12. Remove radiator. Collect lower mounting rubbers.


Refit
13. Reverse removal procedure.
14. Refill cooling system.
