Cooling System: Testing and Inspection

Cooling System Faults

This covers mechanical faults that could occur in the complete cooling system.
1. Engine (coolant) cooling;
2. Engine oil cooling;
3. Gearbox oil cooling.
Before conducting any visual checks within the separate systems and undertaking detailed diagnosis procedures. See Description and operation.

1. ENGINE (COOLANT) COOLING SYSTEM

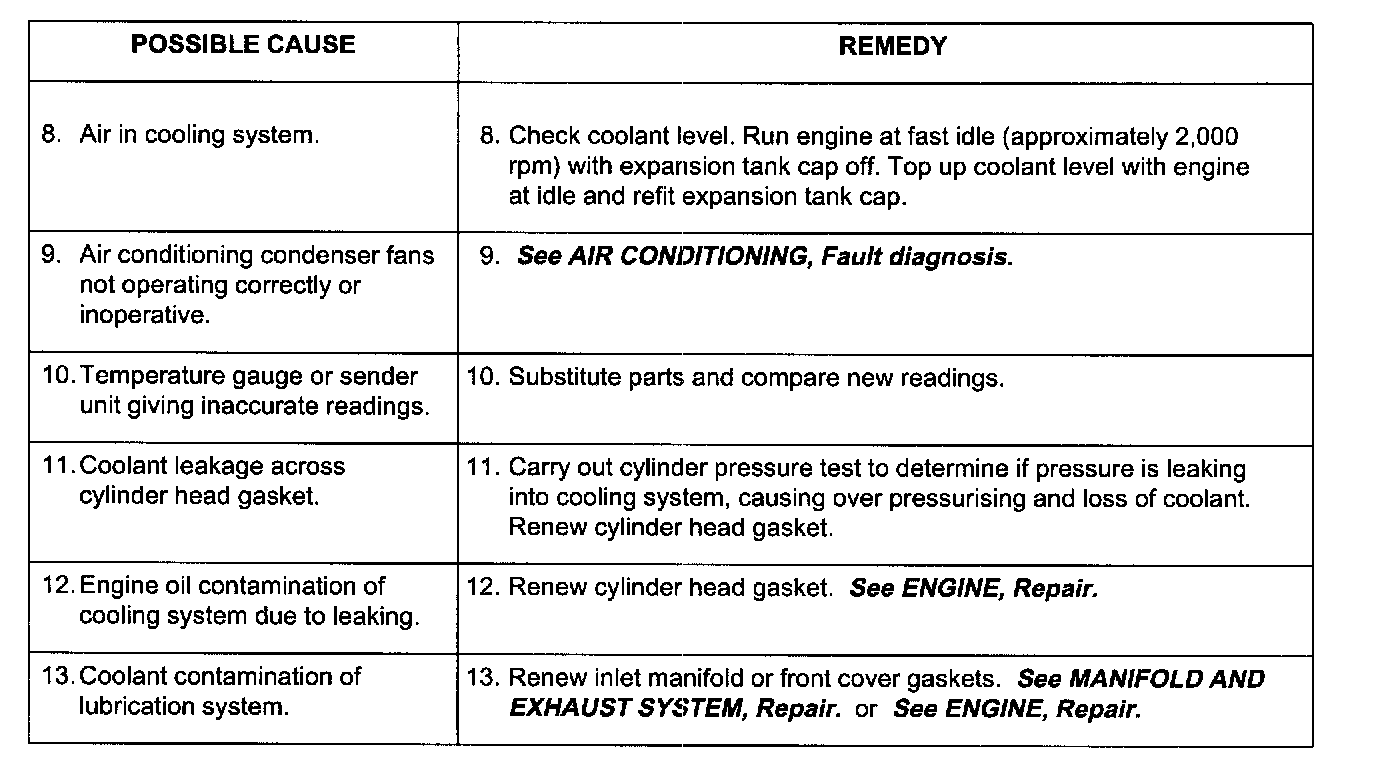

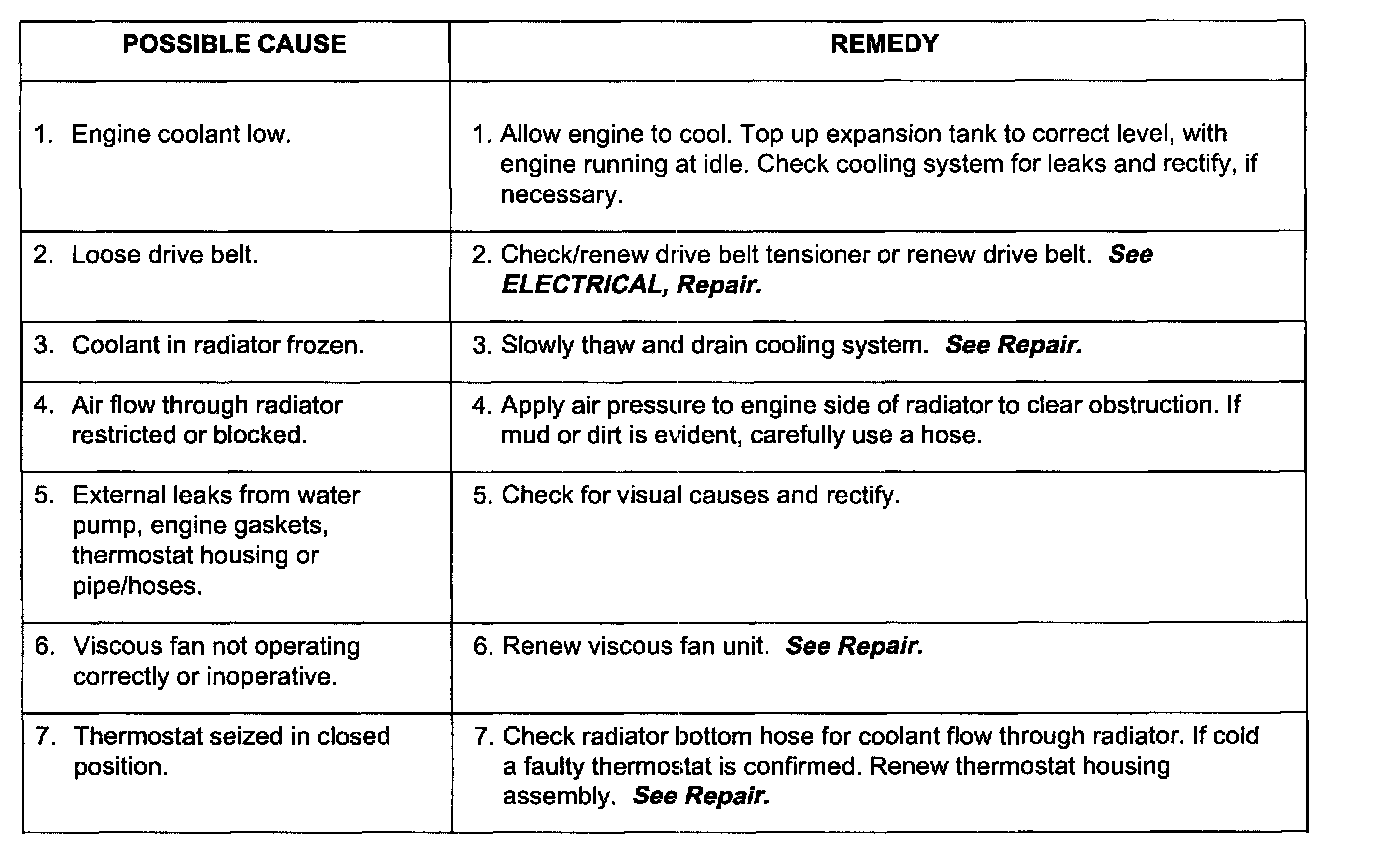

Symptom - Engine Overheating PART 1 OF 2





Symptom - Engine Overheating PART 2 OF 2





Symptom - Engine Runs Cold

2. ENGINE OIL COOLING SYSTEM





Symptom - Engine Oil Overheating

3. GEARBOX OIL COOLING SYSTEM





Symptom - Gearbox Oil Overheating

NOTE: Critical warning messages relating to the complete cooling system are displayed on the message centre in the lower section of the instrument pack, should a fault occur in any of the separate systems.
