Ground Distribution

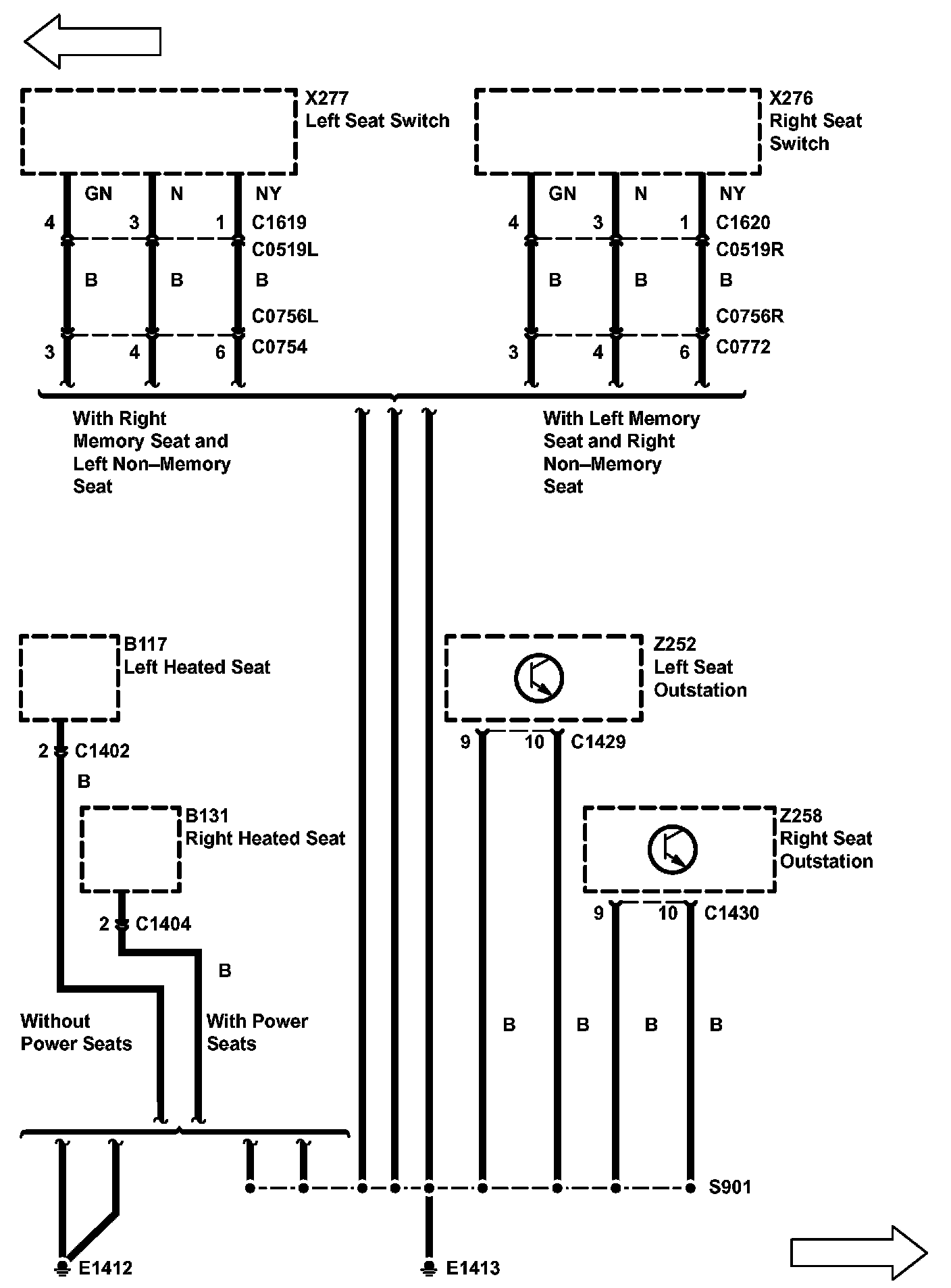

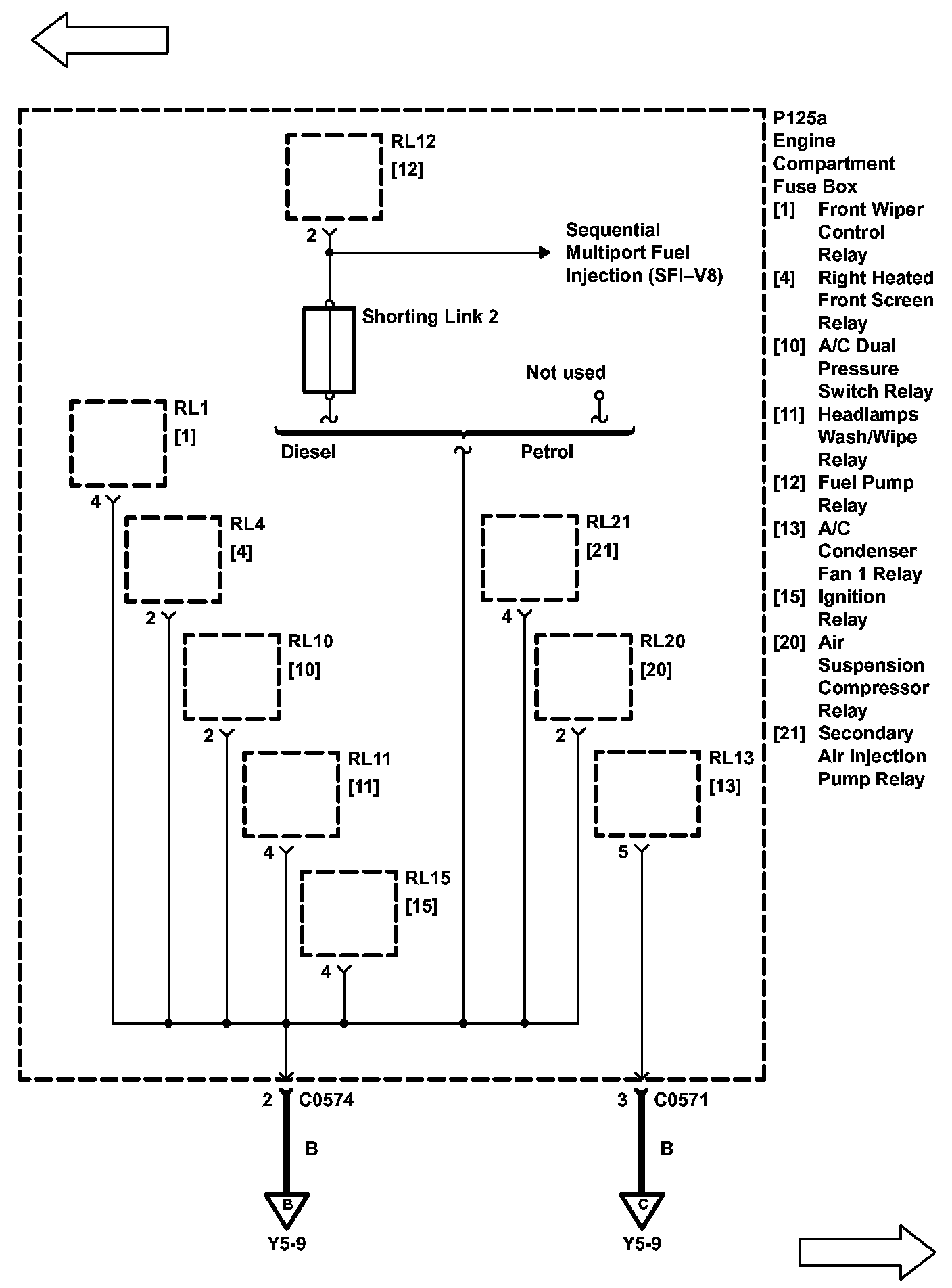

Ground Distribution (Sheet 1):

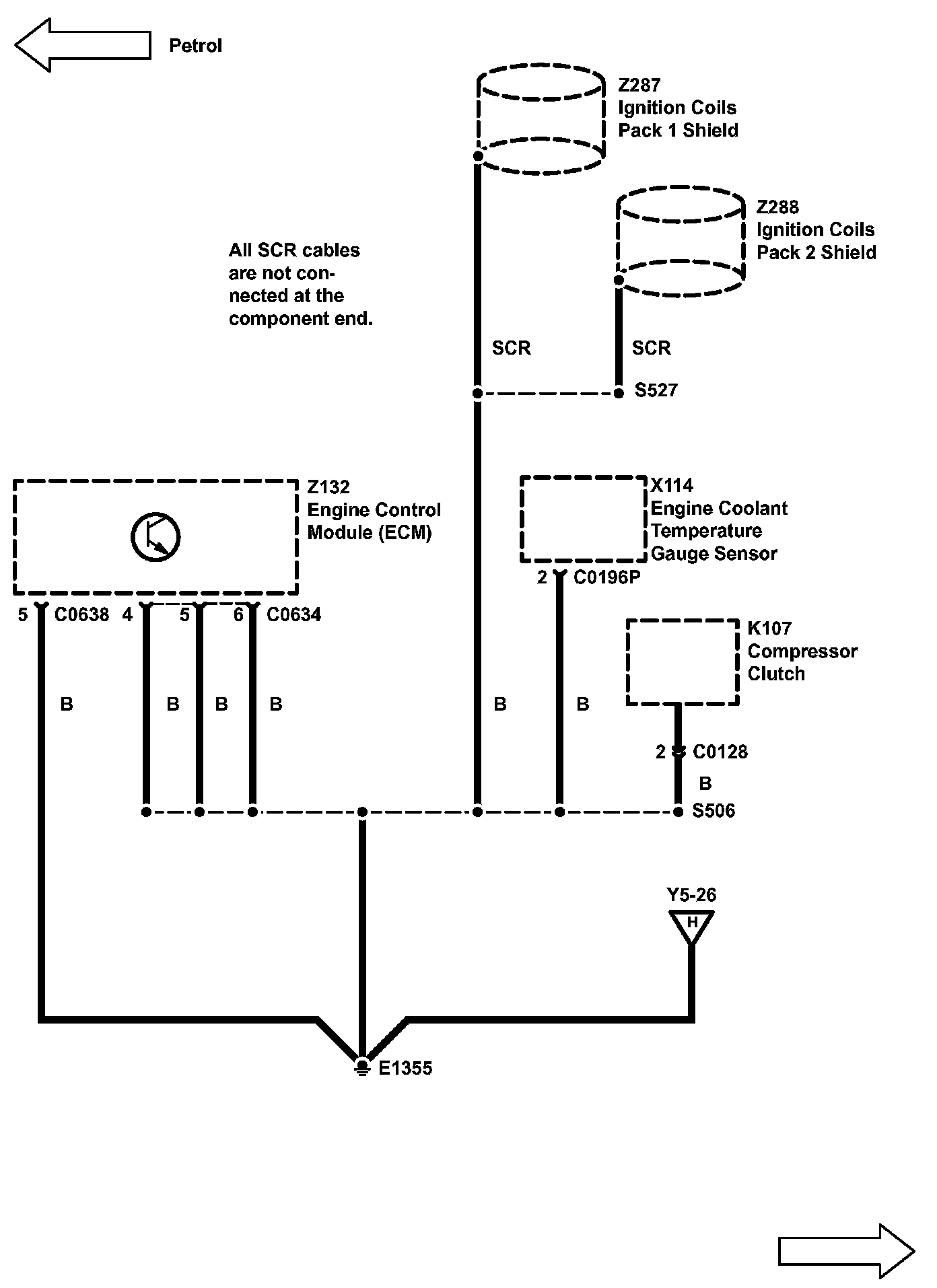

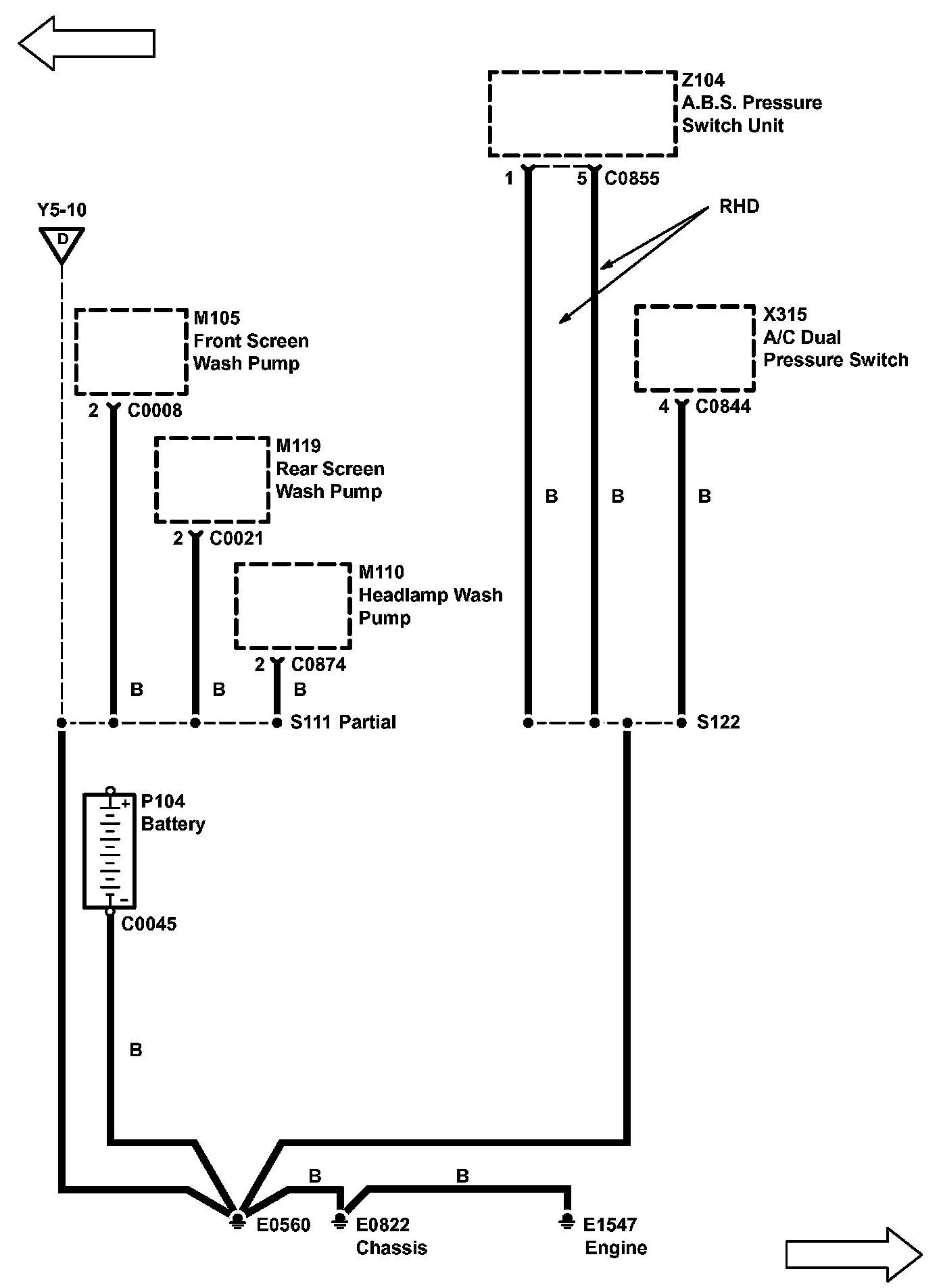

Ground Distribution (Sheet 2):

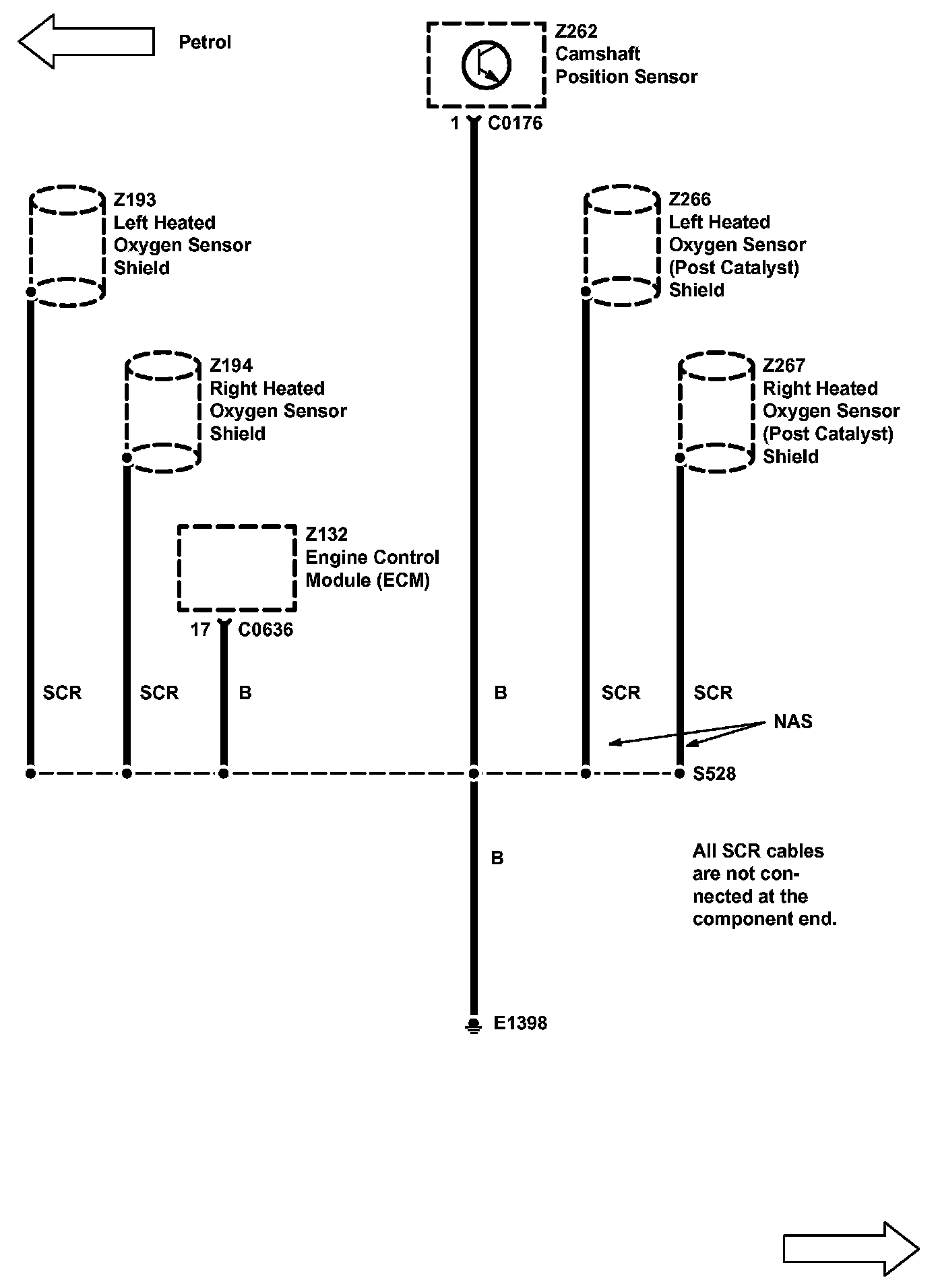

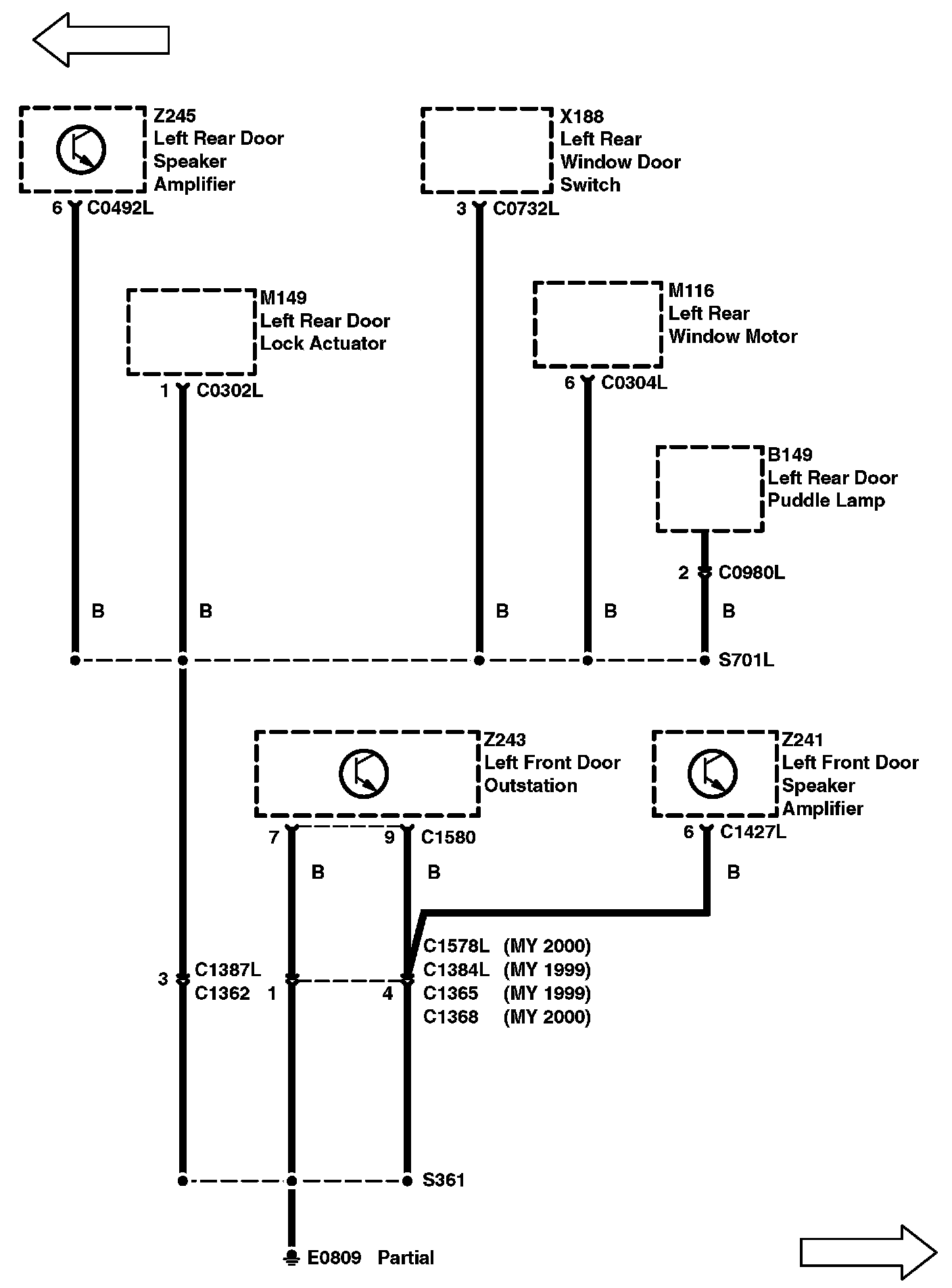

Ground Distribution (Sheet 3):

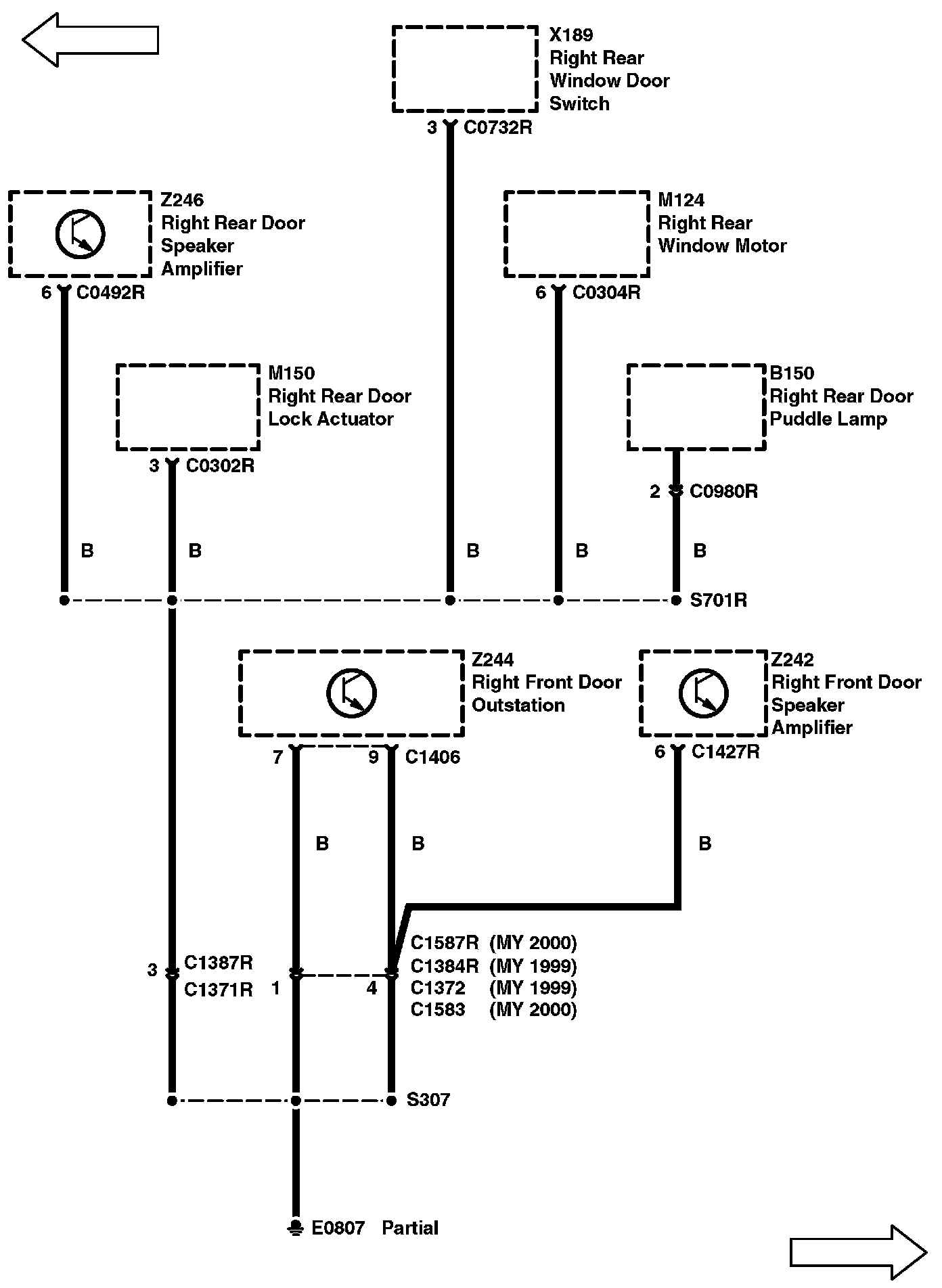

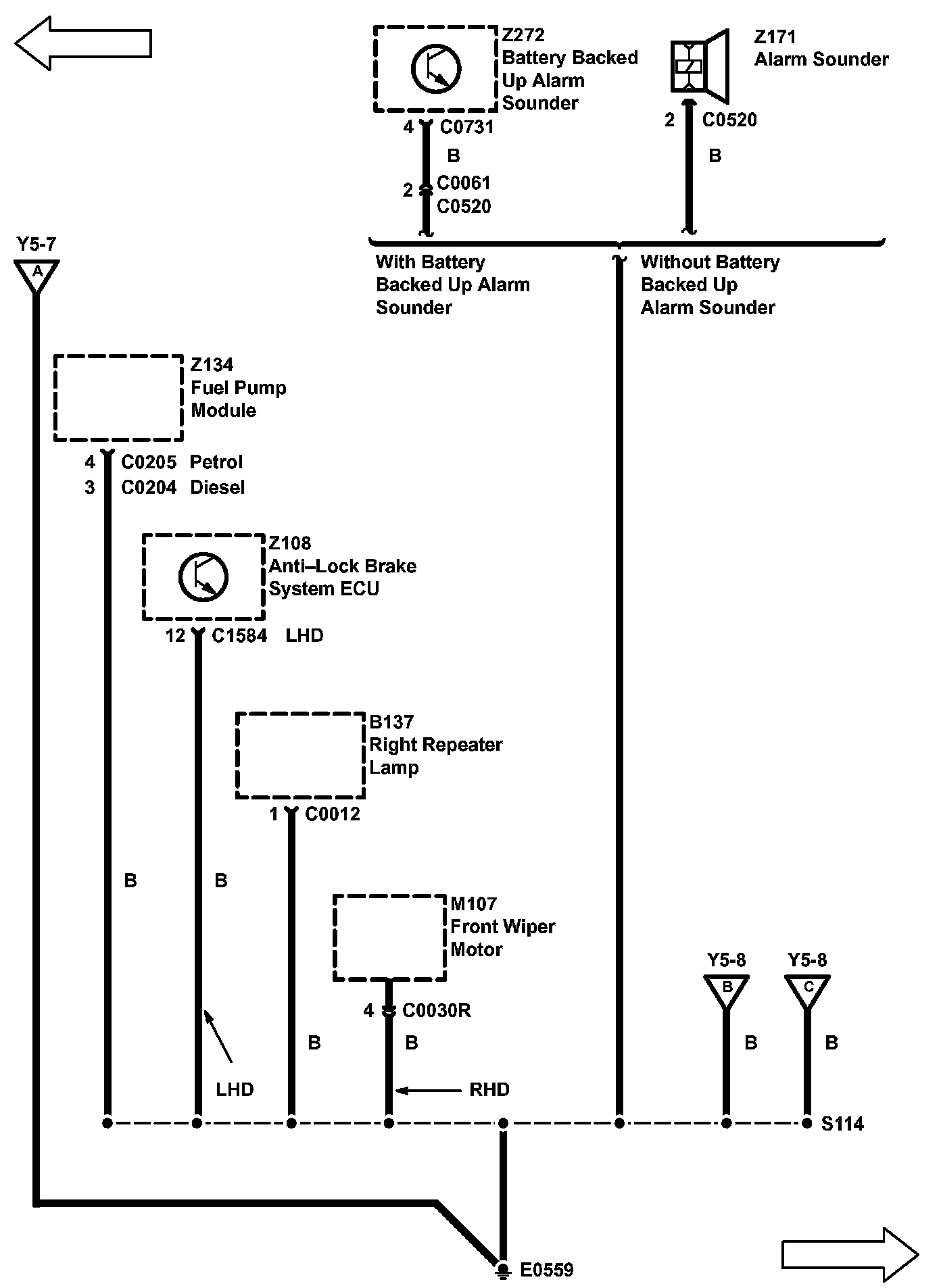

Ground Distribution (Sheet 4):

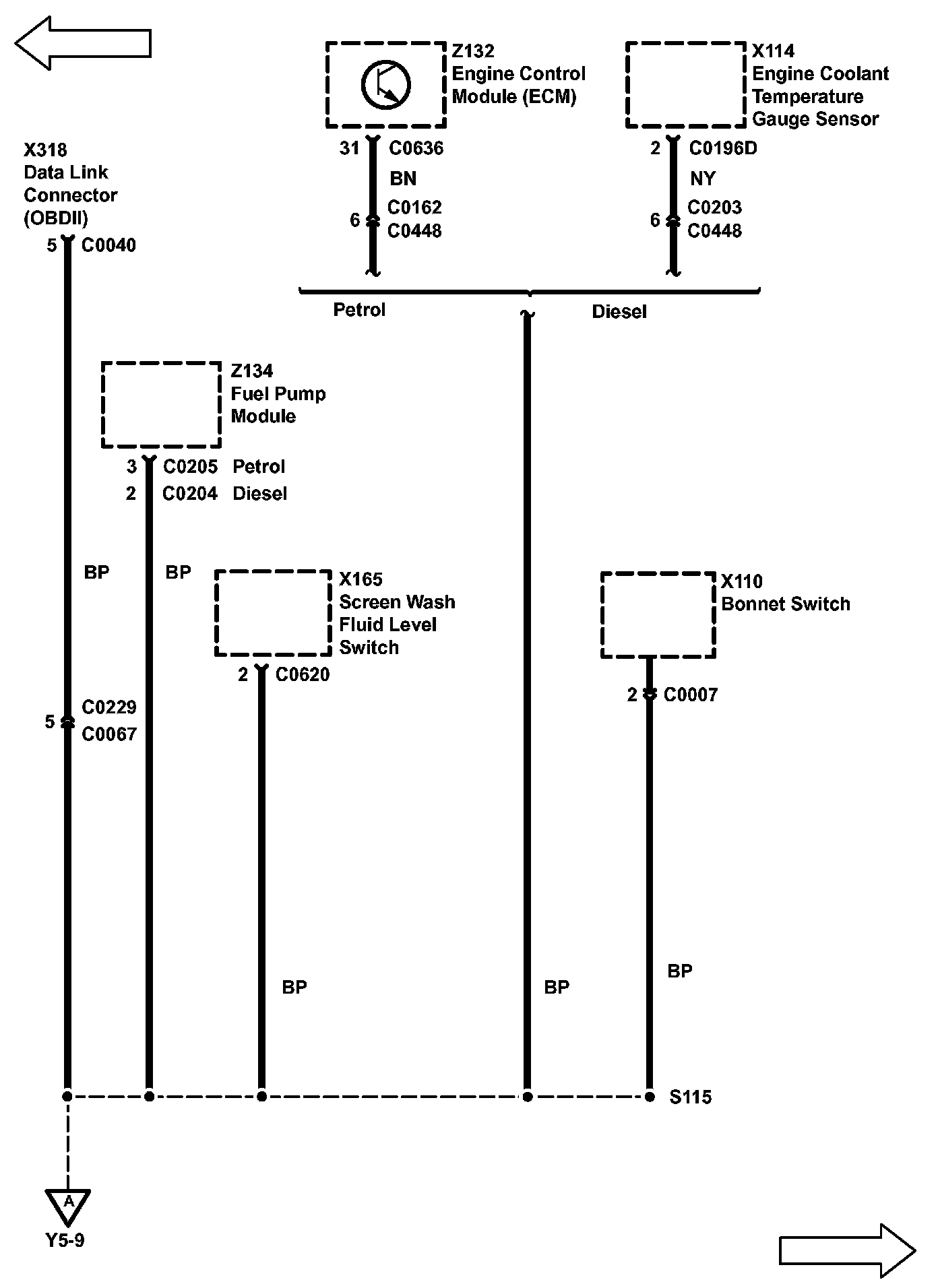

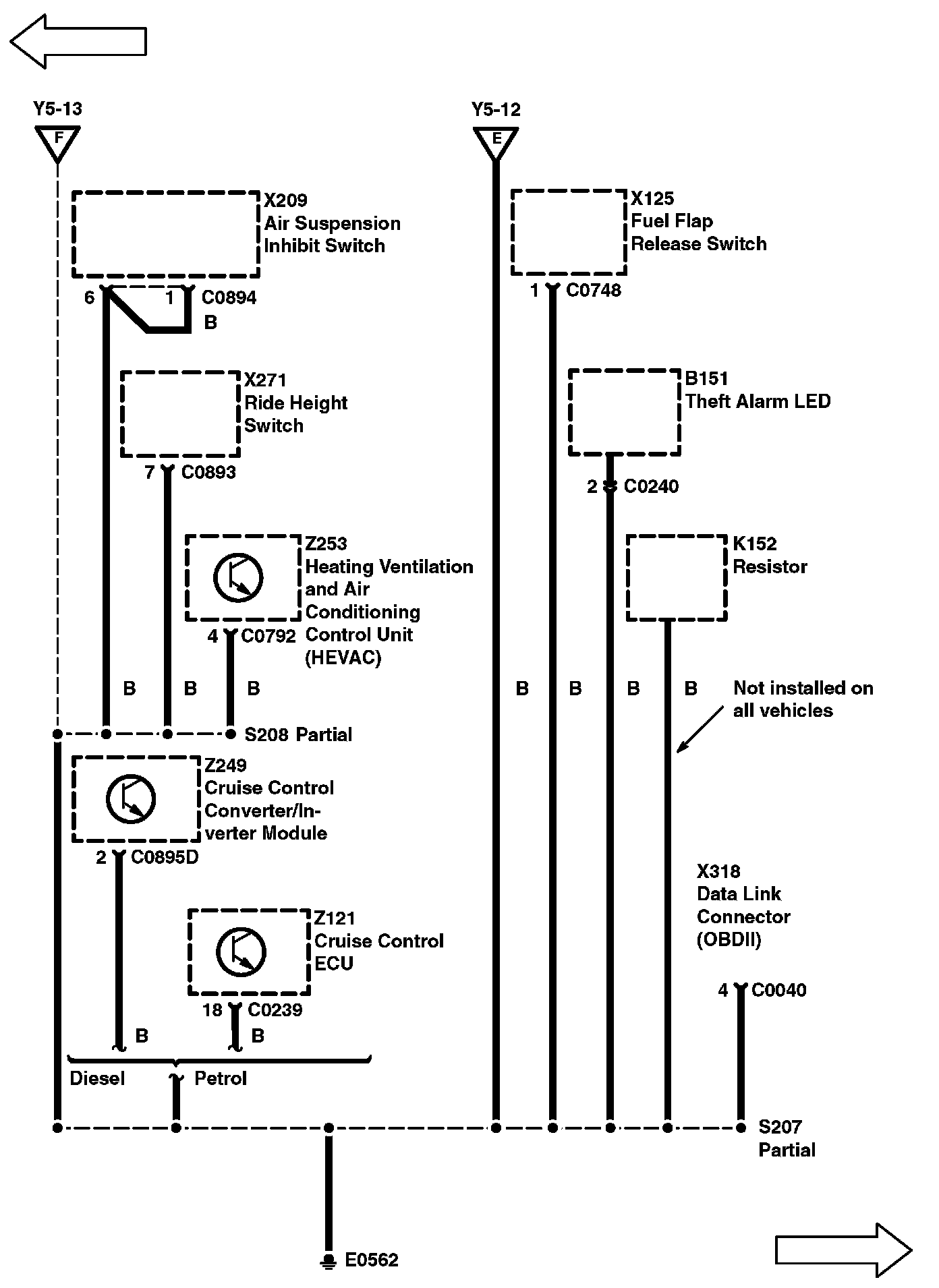

Ground Distribution (Sheet 5):

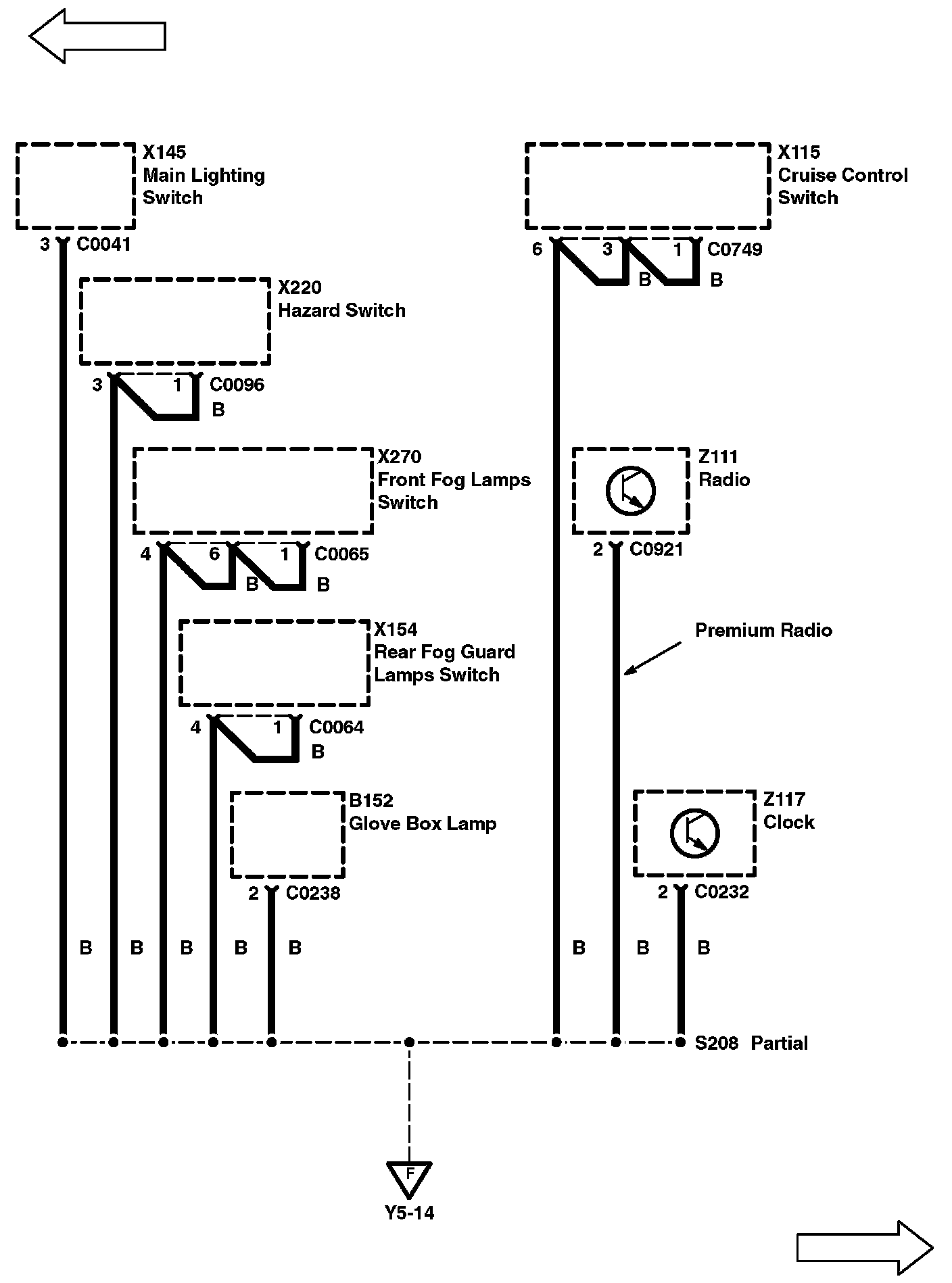

Ground Distribution (Sheet 6):

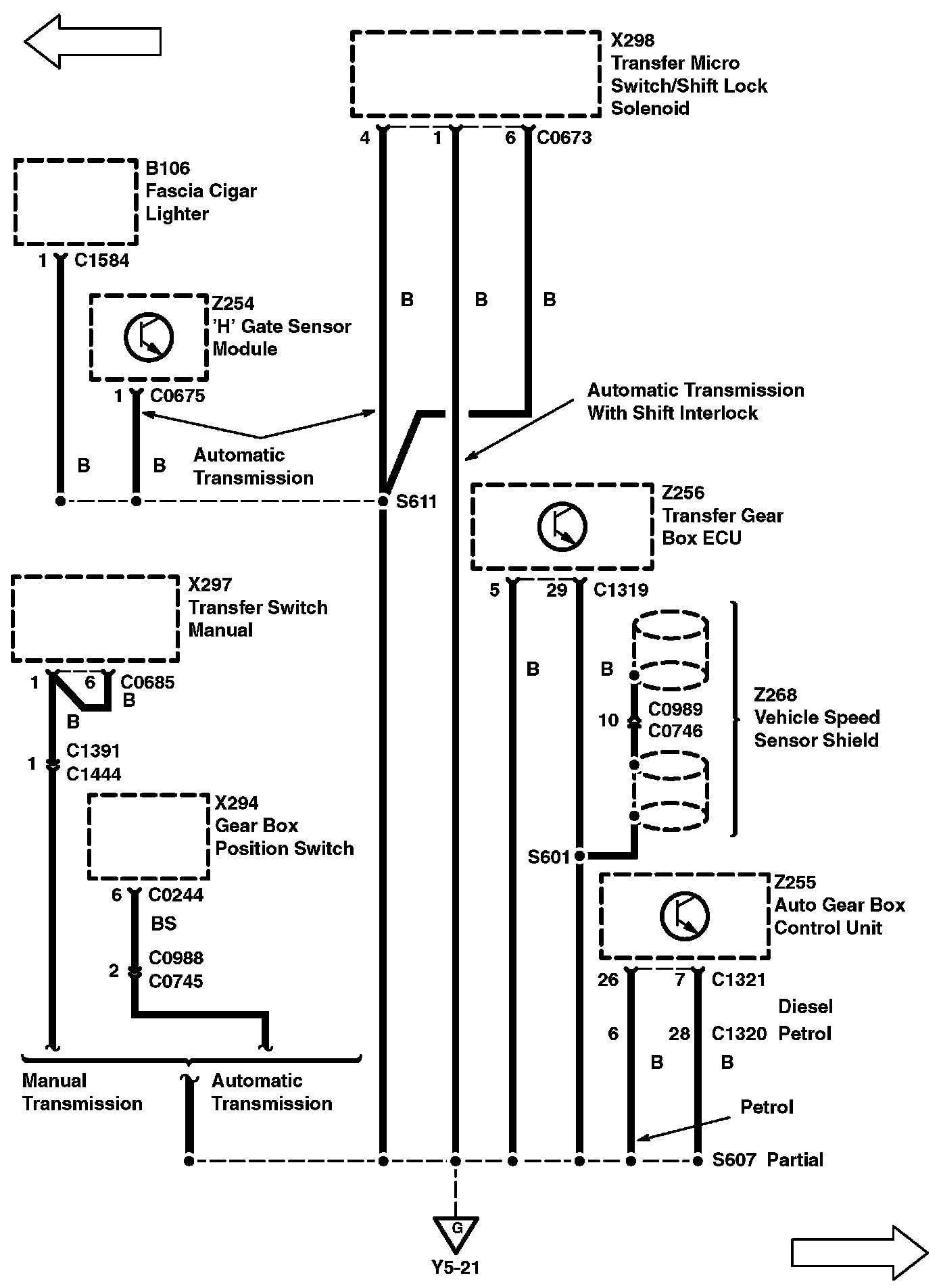

Ground Distribution (Sheet 7):

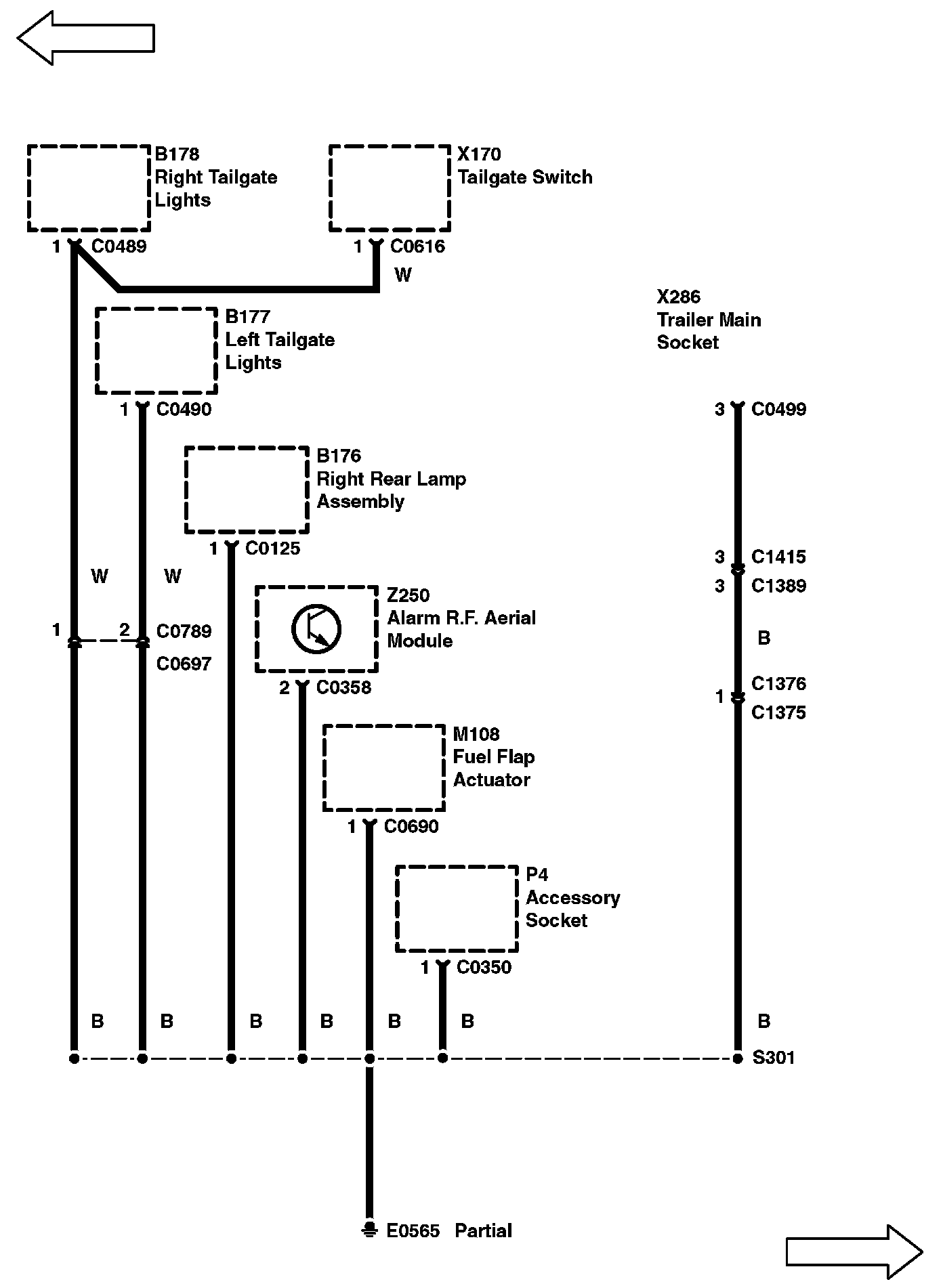

Ground Distribution (Sheet 8):

Ground Distribution (Sheet 9):

Ground Distribution (Sheet 10):

Ground Distribution (Sheet 11):

Ground Distribution (Sheet 12):

Ground Distribution (Sheet 13):

Ground Distribution (Sheet 14):

Ground Distribution (Sheet 15):

Ground Distribution (Sheet 16):

Ground Distribution (Sheet 17):

Ground Distribution (Sheet 18):

Ground Distribution (Sheet 19):

Ground Distribution (Sheet 20):

Ground Distribution (Sheet 21):

Ground Distribution (Sheet 22):

Ground Distribution (Sheet 23):

Ground Distribution (Sheet 24):

Ground Distribution (Sheet 25):

Ground Distribution (Sheet 26):

Ground Distribution (Sheet 27):

Ground Distribution (Sheet 28):

Ground Distribution (Sheet 29):

Connector Locations: The location views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Locations/Connectors/Master Location Index. Master Location Index

Connector Views: The connector pin out views for connectors depicted within these diagrams can be found via the connector's base number (i.e. C0570) at Vehicle/Diagrams/Connector Views. Connector Views
