Camshaft Position Sensor: Service and Repair




Service repair no - 18.30.24

Remove
1. Release fixings and remove battery cover.
2. Disconnect battery earth lead.
3. Raise front of vehicle.


WARNING: Support on safety stands.

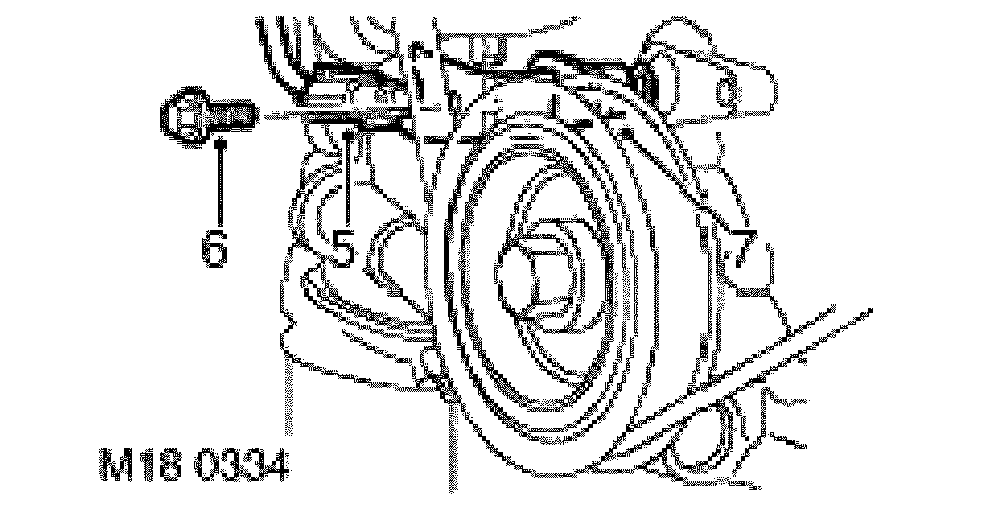

4. Disconnect engine harness from CMP sensor.







5. Disconnect CMP sensor multiplug from bracket.
6. Remove bolt from clamp securing CMP sensor to front cover.
7. Remove clamp and sensor. Discard 'O' ring from CMP sensor.

Refit
8. Ensure CMP sensor is clean, fit new 'O' ring and sensor to cover.
9. Fit clamp to CMP sensor and tighten bolt to 8 Nm (6 labor. ft).
10. Fit sensor multiplug to bracket and connect engine harness to multiplug.
11. Lower vehicle.
12. Connect battery earth lead.
13. Fit battery cover and secure with fixings.
