Air Injection Pump Relay: Locations

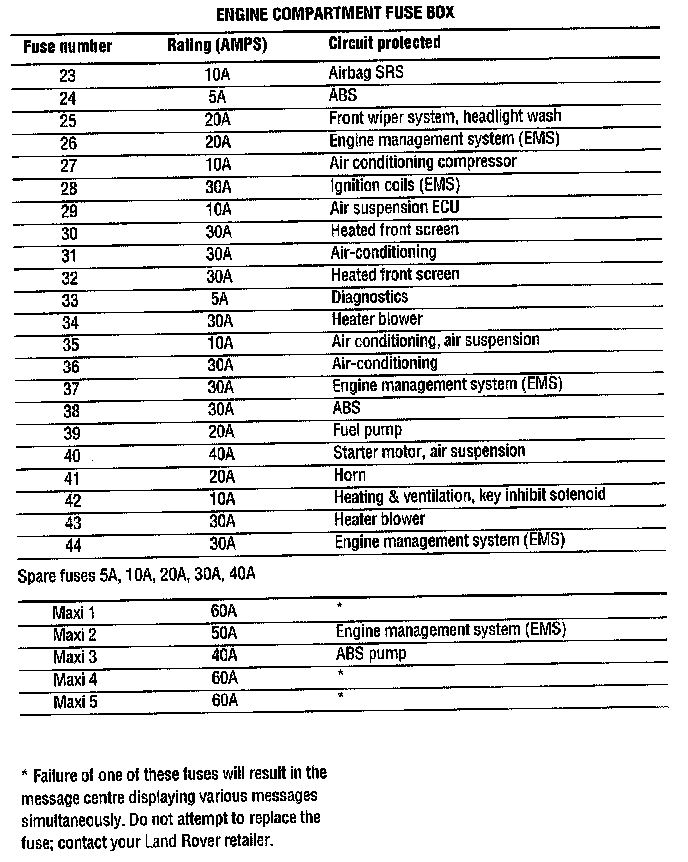

Engine Compartment Fuse Box - Right hand side of engine compartment








RL1 Front Wiper Control Relay
RL2 Ignition Coils Relay (Petrol)
Cooling Fan Relay (Diesel)
RL3 A/C Dual Pressure Switch Relay
RL4 Right Heated Front Screen Relay
RL5 Left Heated Front Screen Relay
RL6 Auxiliary Power 1 Relay
RL7 Auxiliary Power 2 Relay
RL8 Front Wiper Interval Relay
RL9 Horn Relay
RL11 Headlamps Wash/Wipe Relay
RL12 Fuel Pump Relay
RL13 A/C Condenser Fan 1 Relay
RL14 A/C Condenser Fan 2 Relay
RL15 Ignition Relay
RL16 Starter Relay
RL17 ABS Pump Relay
RL18 A/C Control Relay
RL19 Engine Main Control Relay
RL20 Air Suspension Compressor Relay
RL21 Secondary Air Injection Pump Relay
RL23 Ignition Coils Relay (Petrol)
Cooling Fan Relay (Diesel)
