System Diagnosis

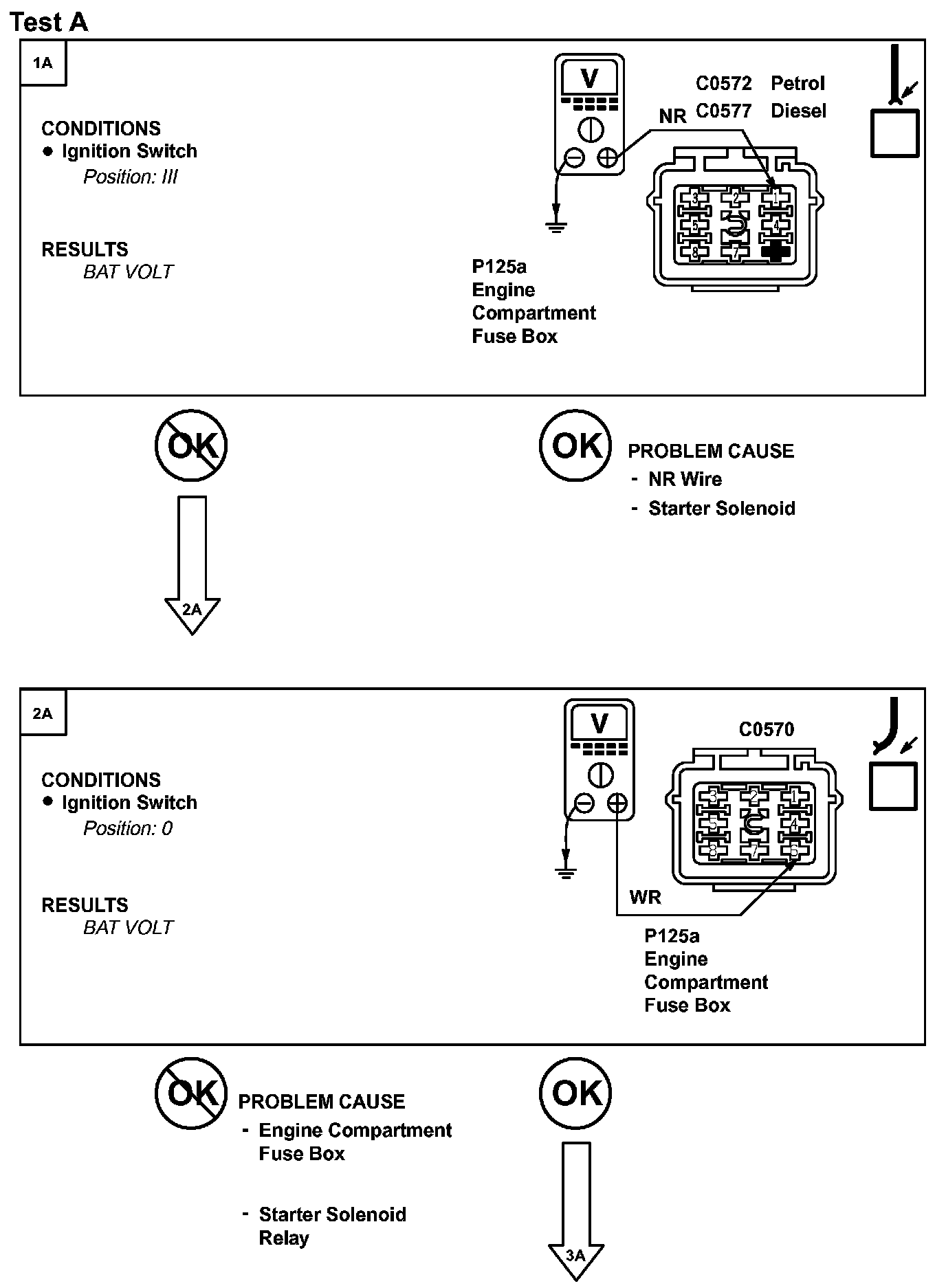

STARTING AND CHARGINGSYSTEM DIAGNOSIS1A To 2A:

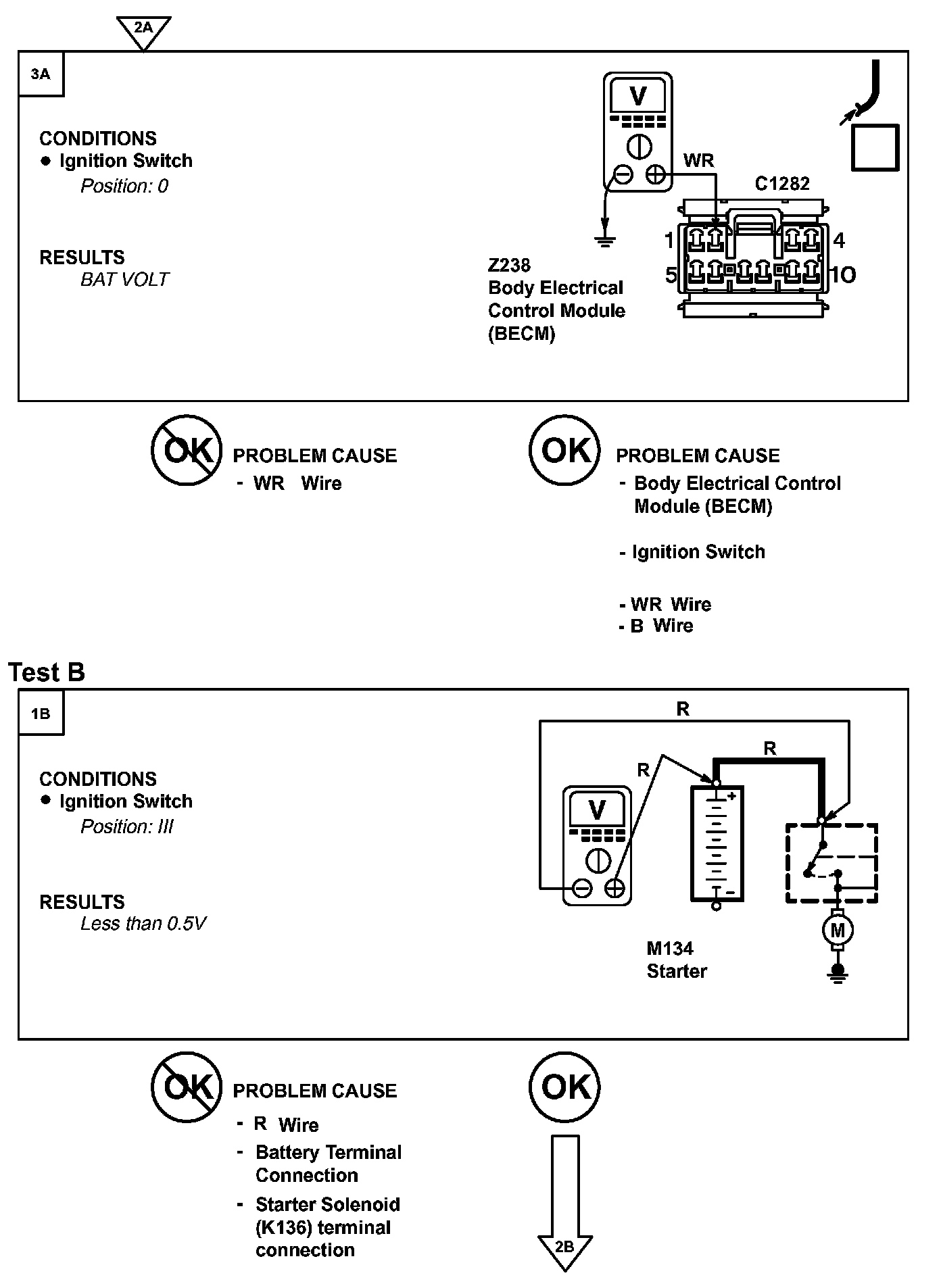

3A To 1B:

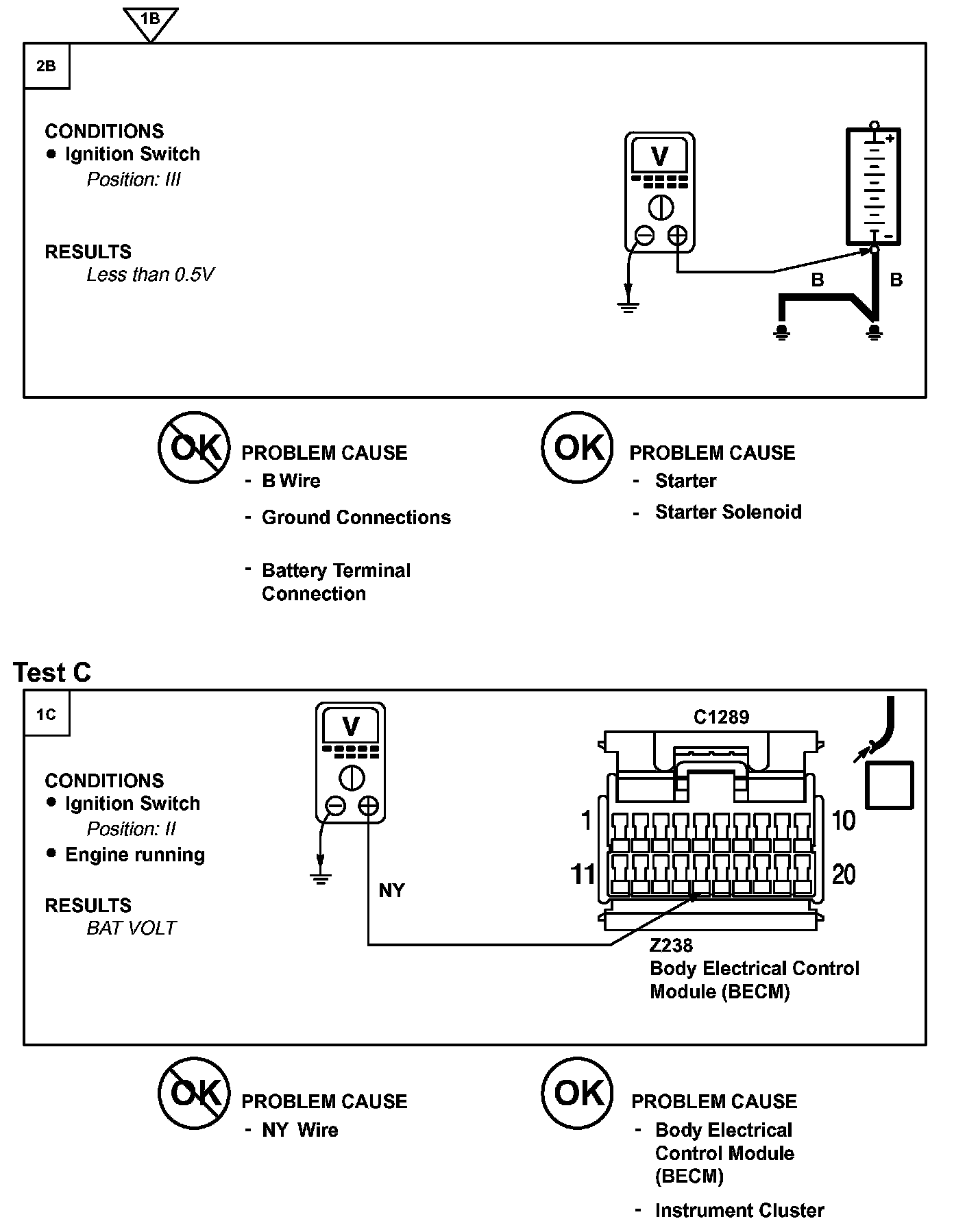

2B To 1C:
1.
If the
Starter Solenoid (K136) does not click and the engine does not crank, do Test A.
2.
If the
Starter Solenoid (K136) clicks but the engine does not crank or cranks slowly, do Test B.
3.
If the charge warning light stays lit with the engine running, and the Generator (Z106) is ok, do Test C.
