Transmission Mode Switch: Service and Repair



SELECTOR INDICATOR and MODE SWITCH

NOTE: The E.A.T. Mode switch is integral with the selector indicator assembly and cannot be serviced separately.


Remove

1. Remove electric window switch pack.

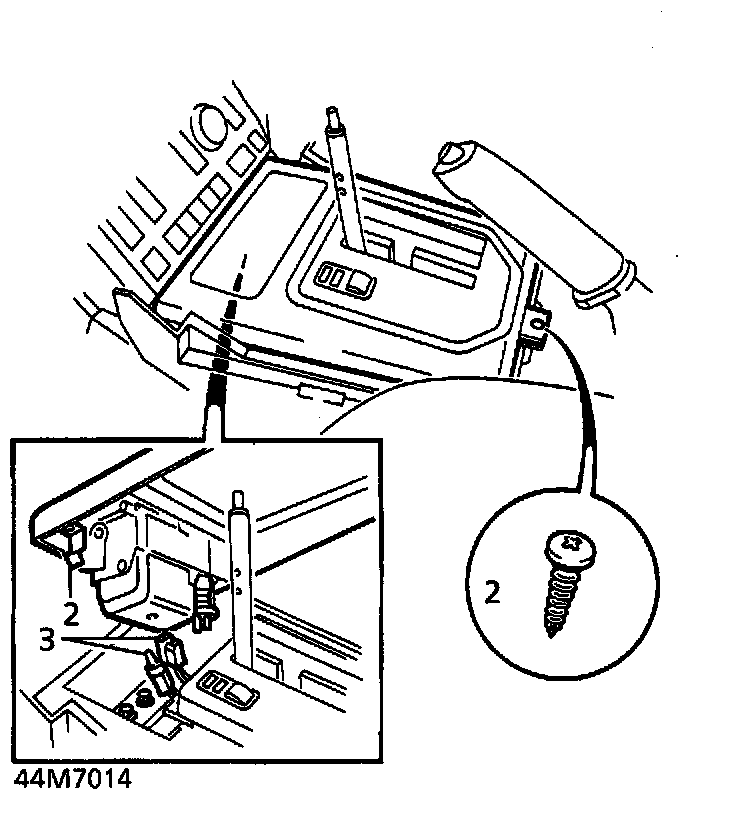

2. Remove screw at rear of gear lever applique. Raise rear of applique. Disengage 2 spring clips at forward end.
3. Disconnect cigar lighter multiplug. Release cigar lighter bulb. Remove selector lever applique.





4. Remove screw securing selector knob. Remove knob.





5. Remove 3 screws securing selector indicator.
6. Raise selector indicator. Disconnect multiplug.
7. Remove selector indicator.


Refit

8. Reverse removal procedure.
