Navigation Display: Service and Repair

86.53.20 Display Unit - Navigation System

Remove

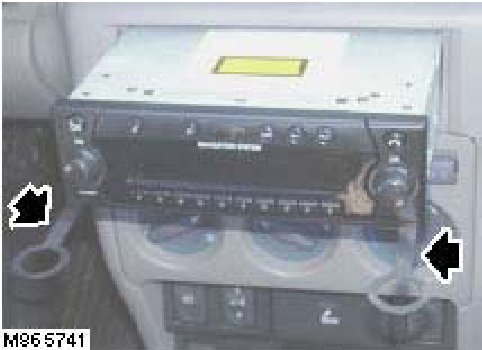

1. Fit tool LRT-86-009 into slots, ensuring correct handed tool is in correct slot.

The tools are stamped with 'TOP L' and 'TOP R', ensure the stampings are facing upwards when removing the unit.

2. Pull unit from fascia.

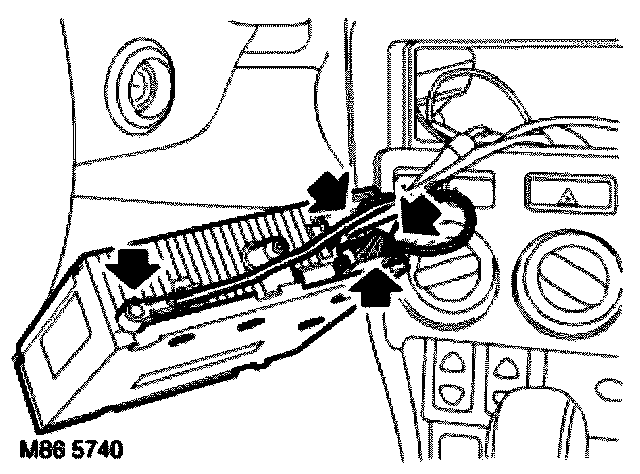

3. Disconnect 3 multiplugs and 2 coax cables, remove unit.
4. Push retaining clips inwards and remove keys.

Refit
1. Position unit to fascia, connect multiplugs and coax cables.
2. Slide unit in fascia until retaining clips engage.
3. Enter security code, check system is operational.
