Navigation Module: Service and Repair
86.53.15 Interface Unit - Remote ControlRemove 1.
Remove front console.
2.

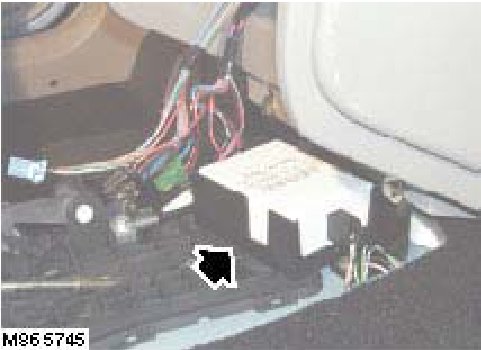

Release interface ECU from bracket, disconnect multiplug and remove ECU.
Refit 1.
Secure interface ECU in bracket and connect multiplug.
2.
Fit front console.
