Access Cover: Service and Repair

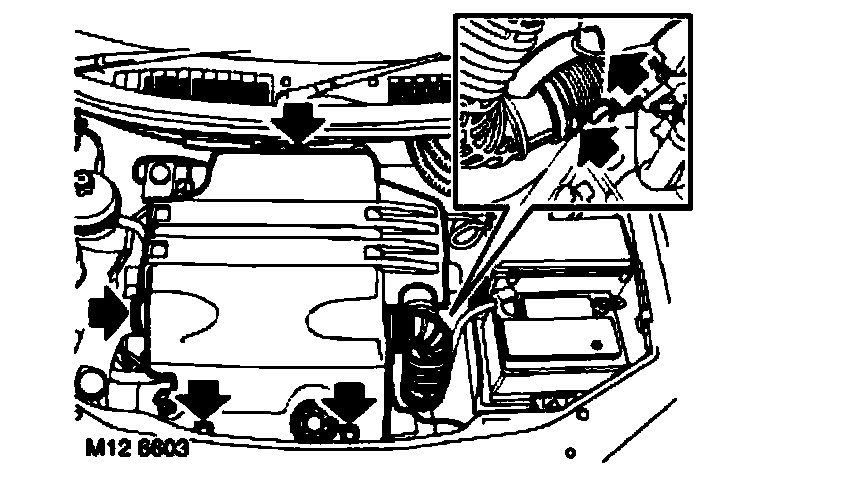

12.30.50 Cover - Engine Acoustic


Remove





1. Loosen clip and disconnect fresh air intake hose from acoustic cover.
2. NON NAS: Loosen clip and release air intake and air bypass hose from throttle body
3. NAS: Loosen clip and disconnect air intake hose from air flow meter (MAF) sensor.
4. Release 2 turnbuckles securing acoustic cover to LH camshaft cover.
5. Release retaining strap and remove acoustic cover.

Refit
1. Fit and secure engine acoustic cover.
2. Connect air intake and air bypass hoses, secure clip.
3. Connect fresh air intake hose to acoustic cover and tighten clip screw.
