Cowl: Service and Repair



Cowl - Instrument - From 04MY

Service Repair No - 88.20.02

Remove

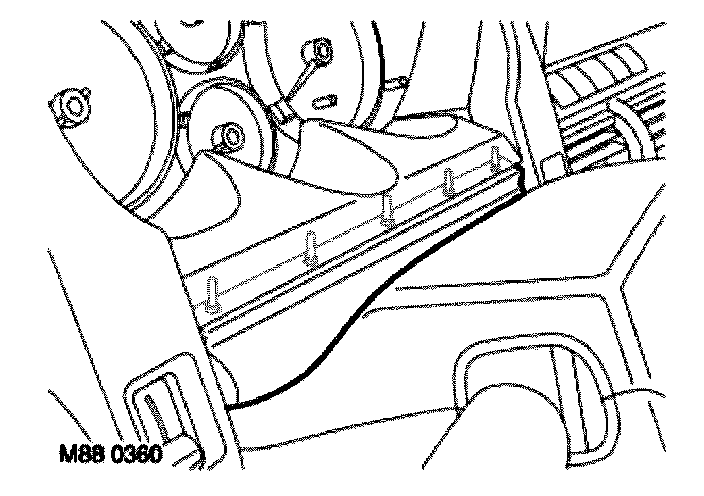

1. Release 5 clips securing steering column nacelle gaiter to the instrument cowl. Remove gaiter for access to screws.

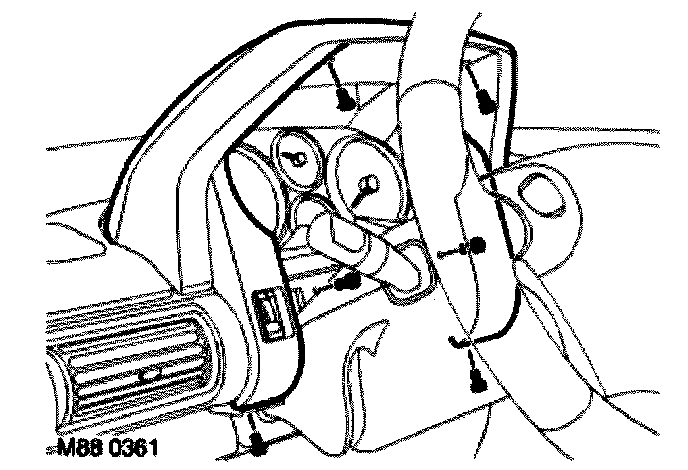

2. Remove 6 screws securing instrument cowl to fascia.

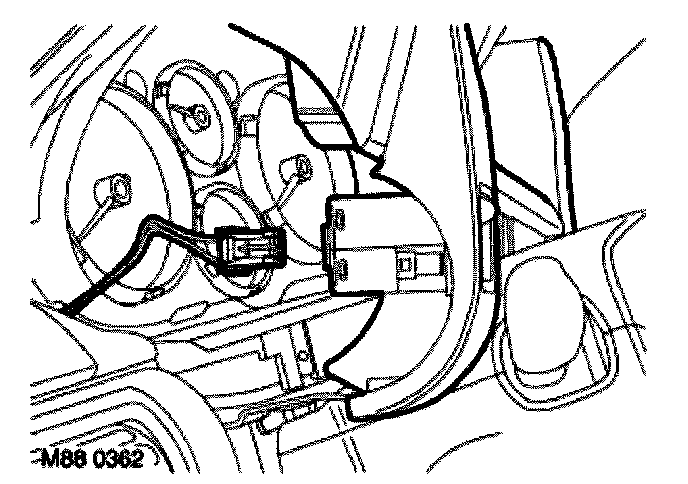

3. Release instrument cowl from fascia, disconnect multiplugs and remove assembly.

NOTE: Do not carry out further dismantling if component is removed for access only.

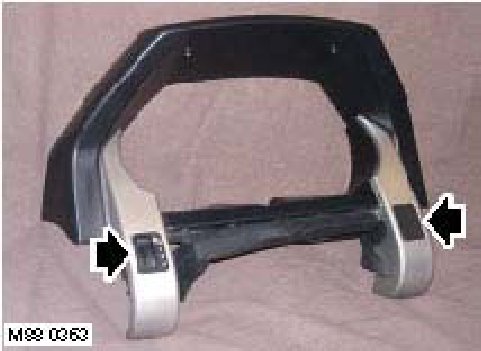

4. Remove switches and switch blanks from cowl.

Refit
1. Fit switches and switch blanks to cowl.
2. Fit steering column gaiter to instrument cowl.
3. Position cowl and connect multiplugs to switches.
4. Fit cowl and tighten screws.
5. Fit and secure steering column gaiter to nacelle.
